XFX Speedster SWFT 210 Radeon RX 7700 XT Core Edition

Specs, info and data

The GPU Database

Featuring 260+ GPU models — and growing.

Database > GPUs > AMD RX 7700 XT > XFX Speedster SWFT 210 Radeon RX 7700 XT Core Edition

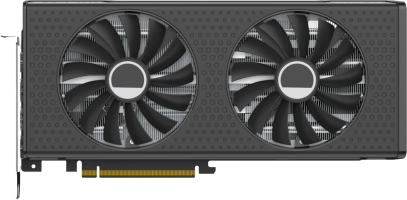

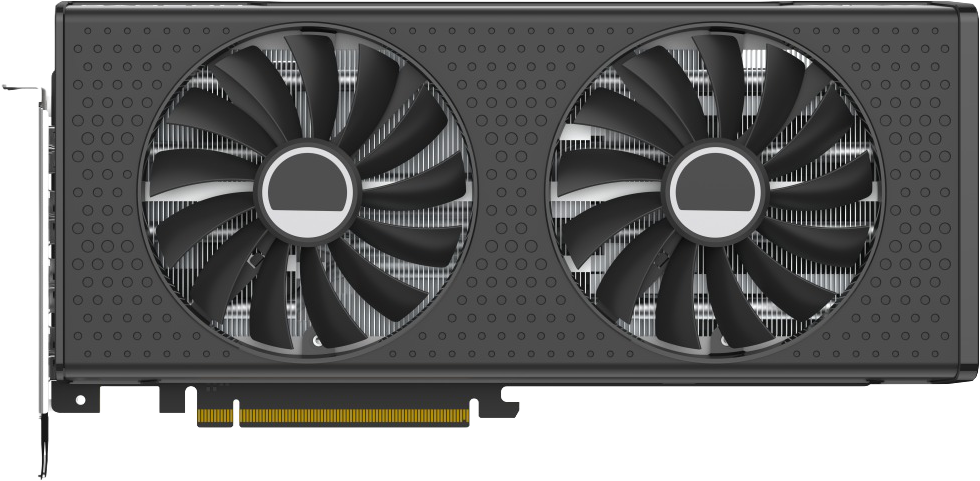

XFX Speedster SWFT 210 Radeon RX 7700 XT Core Edition - Front

XFX Speedster SWFT 210 Radeon RX 7700 XT Core Edition - Side

XFX Speedster SWFT 210 Radeon RX 7700 XT Core Edition
RX-77TSWFTFP
GPUs.net

Information
PlatformConsumer
ArchitectureRDNA3
GenerationRX 7000
Previous GenRX 6000
Next GenRX 9000
InterfacePCIe 4.0 x16
Core
NameNavi 32
FoundryTSMC
Process Node5 nm
Transistors28100 million
Die Size346.0 mm²
Density81.2 /mm²
GPU Core Config
Cores3456
TMUs216
ROPs96
RT Cores54
Memory
TechnologyGDDR6
Size12 GB
Bus192 bit
Bandwidth432.0 GB/s
Speed18.0 Gbps

Clocks
Base clock1425 MHz 1435 MHz
Game Clock2171 MHz
Boost Clock2544 MHz
Memory Clock2250 MHz
Power
8-pin2
TDP245 w
Recommended PSU700 w 550 w
Display
DisplayPort3 2.1
HDMI1 2.1
Dimensions
Slots2.6
Length283 mm
Height125 mm
Width52 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
XFX Speedster QICK 319 Radeon RX 7700 XT Black Edition RX-77TQICKB9	2599 MHz +2.2%	2.6	335 mm	130 mm	52 mm
Asus Dual Radeon RX 7700 XT OC Edition DUAL-RX7700XT-O12G	2599 MHz +2.2%	2.5	279.9 mm	133.9 mm	49.3 mm
ASRock Radeon RX 7700 XT Challenger OC RX7700XT CL 12GO	2584 MHz +1.6%	2.6	267 mm	130 mm	51 mm
XFX Speedster SWFT 210 Radeon RX 7700 XT Core Edition RX-77TSWFTFP	2544 MHz	2.6	283 mm	125 mm	52 mm
Asus TUF Gaming Radeon RX 7700 XT OC Edition TUF-RX7700XT-O12G-GAMING	2599 MHz +2.2%	3	319.8 mm	150.9 mm	59.2 mm
Gigabyte Radeon RX 7700 XT GAMING OC GV-R77XTGAMING OC-12GD	2599 MHz +2.2%	2.8	302 mm	130 mm	56 mm
