NVIDIA RTX 4500 Ada Database - Specs, information & files

NVIDIA RTX 4500 Ada

Specs, info and data

The GPU Database

Featuring 290+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 4500 Ada

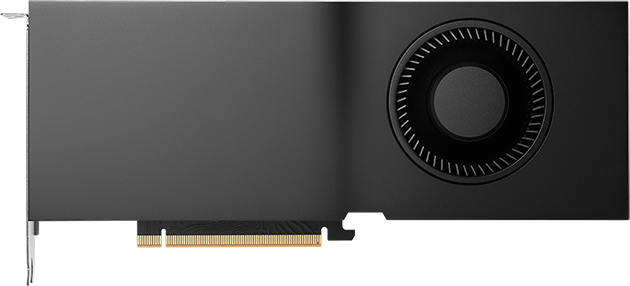

NVIDIA RTX 4500 Ada

The RTX 4500 Ada is a workstation-grade GPU from NVIDIA's GeForce RTX 40 series, built on the Ada Lovelace architecture using the AD104 chip. Equipped with   of GDDR6 memory on a 192-bit bus, it delivers 432.0 GB/s of bandwidth at 18.0 Gbps.

Launched on 8 Aug, 2023, the RTX 4500 Ada carried a starting price of $2299.

GPUs.net

Information
PlatformWorkstation
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Core
NameAD104
FoundryTSMC
Process Node5 nm
Transistors35800 million
Die Size294.0 mm²
Density121.8 /mm²
GPU Core Config
Cores7680
Tensor Cores240
RT Cores60
Memory
TechnologyGDDR6
Bus192 bit
Bandwidth432.0 GB/s
Speed18.0 Gbps

Information
Platform	Workstation
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Interface	PCIe 4.0 x16

Core
Name	AD104
Foundry	TSMC
Process Node	5 nm
Transistors	35800 million
Die Size	294.0 mm²
Density	121.8 /mm²

GPU Core Config
Cores	7680
Tensor Cores	240
RT Cores	60

Memory
Technology	GDDR6
Bus	192 bit
Bandwidth	432.0 GB/s
Speed	18.0 Gbps

Clocks
Base clock2070 MHz
Boost Clock2580 MHz
Memory Clock2250 MHz
Power
16-pin1
TDP210 w
Recommended PSU550 w
Display
DisplayPort4 1.4a
Dimensions
Slots2
Length267 mm
Height112 mm
Width40 mm

Clocks
Base clock	2070 MHz
Boost Clock	2580 MHz
Memory Clock	2250 MHz

Power
16-pin	1
TDP	210 w
Recommended PSU	550 w

Display
DisplayPort	4 1.4a

Dimensions
Slots	2
Length	267 mm
Height	112 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX 4500 Ada Generation VCNRTX4500ADA-PB	2580 MHz	2	267 mm	112 mm	40 mm
PNY RTX 4500 Ada Generation Bulk VCNRTX4500ADA-SB	2580 MHz
NVIDIA RTX 4500 Ada 900-5G132-2560-000	2580 MHz
Dell RTX 4500 Ada Generation 490-BKFX	2580 MHz
Lenovo RTX 4500 Ada 4X67A96491	2580 MHz
Lenovo RTX 4500 Ada LP 4X61P46223	2580 MHz
HP RTX 4500 Ada 8D6C1AA	2580 MHz
