NVIDIA RTX 6000 Ada

The RTX 6000 Ada is a workstation-grade GPU from NVIDIA's GeForce RTX 40 series, built on the Ada Lovelace architecture using the AD102 chip. Equipped with 48 GB of GDDR6 memory on a 384-bit bus, it delivers 960.0 GB/s of bandwidth at 20.0 Gbps.

Launched on 2 Dec, 2022, the RTX 6000 Ada carried a starting price of $6799.

GPUs.net

Information
PlatformWorkstation
ArchitectureAda Lovelace
GenerationGeForce RTX 40
Previous GenGeForce RTX 30
Next GenGeForce RTX 50
InterfacePCIe 4.0 x16
Core
NameAD102
FoundryTSMC
Process Node5 nm
Transistors76300 million
Die Size609.0 mm²
Density125.3 /mm²
GPU Core Config
Cores18176
TMUs568
ROPs192
RT Cores142
Memory
TechnologyGDDR6
Size48 GB
Bus384 bit
Bandwidth960.0 GB/s
Speed20.0 Gbps

Information
Platform	Workstation
Architecture	Ada Lovelace
Generation	GeForce RTX 40
Previous Gen	GeForce RTX 30
Next Gen	GeForce RTX 50
Interface	PCIe 4.0 x16

Core
Name	AD102
Foundry	TSMC
Process Node	5 nm
Transistors	76300 million
Die Size	609.0 mm²
Density	125.3 /mm²

GPU Core Config
Cores	18176
TMUs	568
ROPs	192
RT Cores	142

Memory
Technology	GDDR6
Size	48 GB
Bus	384 bit
Bandwidth	960.0 GB/s
Speed	20.0 Gbps

Clocks
Base clock915 MHz
Boost Clock2505 MHz
Memory Clock2500 MHz
Power
16-pin1
TDP300 w
Recommended PSU700 w

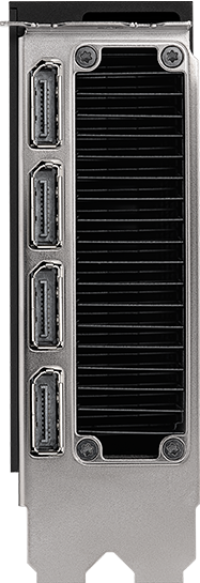

Display
DisplayPort4 1.4a
Dimensions
Slots2
Length267 mm
Height112 mm
Width40 mm
Weight1180 g

Clocks
Base clock	915 MHz
Boost Clock	2505 MHz
Memory Clock	2500 MHz

Power
16-pin	1
TDP	300 w
Recommended PSU	700 w

Display
DisplayPort	4 1.4a

Dimensions
Slots	2
Length	267 mm
Height	112 mm
Width	40 mm
Weight	1180 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX 6000 Ada Generation VCNRTX6000ADA-PB	2505 MHz	2	267 mm	112 mm	40 mm
PNY RTX 6000 Ada Generation Bulk VCNRTX6000ADA-SB	2505 MHz
NVIDIA RTX 6000 Ada Generation 900-5G133-2550-000	2505 MHz
NVIDIA RTX 6000 Ada Generation Bulk 900-5G133-2250-000	2505 MHz
Dell RTX 6000 Ada Generation 490-BJMS	2505 MHz
HP RTX 6000 Ada Generation 9X3E1AA	2505 MHz
Lenovo RTX 6000 Ada Generation 4X67A89324	2505 MHz
Lenovo RTX 6000 Ada 4X61L84590	2505 MHz
Dell RTX 6000 Ada DELL-YMD9W	2505 MHz
