NVIDIA GTX 1080

The GTX 1080 is a consumer-grade GPU from nvidia's GeForce 10 series, built on the  architecture using the GP104 chip. Equipped with 8 GB of GDDR5X memory on a 256-bit bus, it delivers 320.3 GB/s of bandwidth at 10.0 Gbps.

Launched on 26 May, 2016, the GTX 1080 carried a starting price of $600.

Host GTX 1080
Earn $0.03/h*
Vast
* Median price
Mine with GTX 1080
Earn $0.12/d*
Estimates
* Before power cost

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314 mm²
Density22.9 /mm²
GPU Core Config
Cores2560
TMUs160
ROPs64
Memory
TechnologyGDDR5X
Size8 GB
Bus256 bit
Bandwidth320.256 GB/s
Speed10.008 Gbps

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next Gen	GeForce RTX 20
Interface	PCIe 3.0 x16

Core
Name	GP104
Foundry	TSMC
Process Node	16 nm
Transistors	7200 million
Die Size	314 mm²
Density	22.9 /mm²

GPU Core Config
Cores	2560
TMUs	160
ROPs	64

Memory
Technology	GDDR5X
Size	8 GB
Bus	256 bit
Bandwidth	320.256 GB/s
Speed	10.008 Gbps

Clocks
Base clock1607 MHz
Boost Clock1733 MHz
Memory Clock1251 MHz
Power
8-pin1
TDP180 w
Recommended PSU450 w

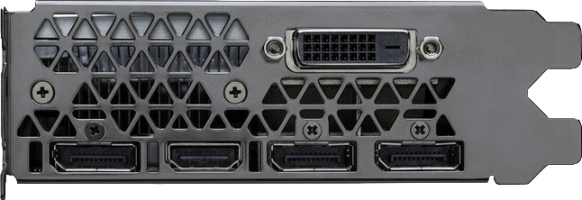

Display
DisplayPort3 1.4
HDMI1 2.0b
DVI1
Dimensions
Slots2
Length267 mm
Height112 mm
Width40 mm

Clocks
Base clock	1607 MHz
Boost Clock	1733 MHz
Memory Clock	1251 MHz

Power
8-pin	1
TDP	180 w
Recommended PSU	450 w

Display
DisplayPort	3 1.4
HDMI	1 2.0b
DVI	1

Dimensions
Slots	2
Length	267 mm
Height	112 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY GTX 1080 XLR8	1733 MHz		mm	mm	mm
NVIDIA GTX 1080 Founders Edition	1733 MHz	2	267 mm	112 mm	40 mm
