NVIDIA GTX TITAN Database - Specs, information & files

NVIDIA GTX TITAN

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA GTX TITAN

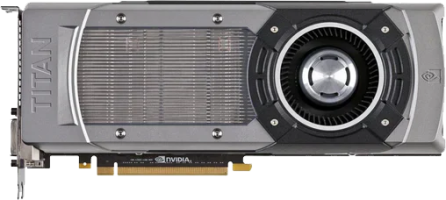

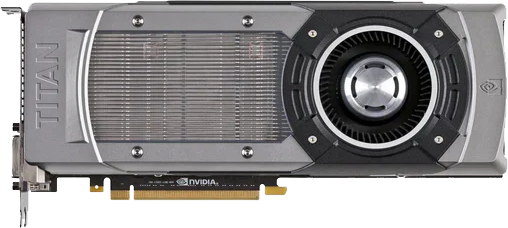

NVIDIA GTX TITAN

The GTX TITAN is a consumer-grade GPU from nvidia's GeForce 700 series, built on the  architecture using the GK110 chip. Equipped with 6 GB of GDDR5 memory on a 384-bit bus, it delivers 288.4 GB/s of bandwidth at 6.0 Gbps.

Launched on 18 Feb, 2013, the GTX TITAN carried a starting price of $999.

Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK110
GPU Core Config
Cores2688
TMUs224
ROPs48
Memory
TechnologyGDDR5
Size6 GB
Bus384 bit
Bandwidth288.384 GB/s
Speed6.008 Gbps

Information
Platform	Consumer
Architecture	Kepler
Generation	GeForce 700
Previous Gen	GeForce 600
Next Gen	GeForce 900
Interface	PCIe 3.0 x16

Core
Name	GK110

GPU Core Config
Cores	2688
TMUs	224
ROPs	48

Memory
Technology	GDDR5
Size	6 GB
Bus	384 bit
Bandwidth	288.384 GB/s
Speed	6.008 Gbps

Clocks
Base clock836 MHz
Boost Clock876 MHz
Memory Clock1502 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w

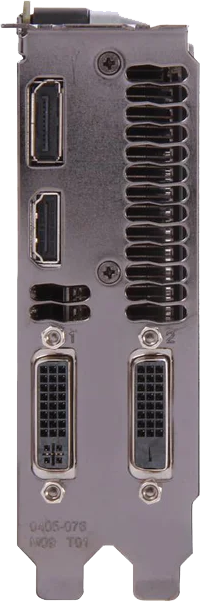

Display
DisplayPort1
HDMI1
DVI2
Dimensions
Slots2
Length267 mm
Height111 mm
Width38 mm

Clocks
Base clock	836 MHz
Boost Clock	876 MHz
Memory Clock	1502 MHz

Power
6-pin	1
8-pin	1
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	1
HDMI	1
DVI	2

Dimensions
Slots	2
Length	267 mm
Height	111 mm
Width	38 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA GTX TITAN	876 MHz	2	267 mm	111 mm	38 mm
