NVIDIA RTX 5060 Ti 16GB

The RTX 5060 Ti 16GB is a consumer-grade GPU from nvidia's GeForce RTX 50 series, built on the  architecture using the GB206 chip. Equipped with 16 GB of GDDR7 memory on a 128-bit bus, it delivers 448.0 GB/s of bandwidth at 28.0 Gbps.

Launched on 15 Apr, 2025, the RTX 5060 Ti 16GB carried a starting price of $429.

FP16 Tensor Benchmark73.01 TFLOPS 77.0%
 Theoretical94.8 TFLOPS
FP32 Benchmark21.99 TFLOPS 92.8%
 Theoretical23.7 TFLOPS
FP65 Benchmark0.36 TFLOPS 97.2%
 Theoretical0.37 TFLOPS
Rent RTX 5060 Ti 16GB
Cost $0.09/h*
Vast
* Median price
Host RTX 5060 Ti 16GB
Earn $0.07/h*
Vast
* Median price
Mine with RTX 5060 Ti 16GB
Earn $0.20/d*
Estimates
* Before power cost

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB206
InterfacePCIe 5.0 x8
Core
NameGB206
FoundryTSMC
Process Node5 nm
Transistors21900 million
Die Size181 mm²
Density121.0 /mm²
GPU Core Config
Cores4608
TMUs144
ROPs48
SMs36
RT Cores36
Memory
TechnologyGDDR7
Size16 GB
Bus128 bit
Bandwidth448 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB206
Interface	PCIe 5.0 x8

Core
Name	GB206
Foundry	TSMC
Process Node	5 nm
Transistors	21900 million
Die Size	181 mm²
Density	121.0 /mm²

GPU Core Config
Cores	4608
TMUs	144
ROPs	48
SMs	36
RT Cores	36

Memory
Technology	GDDR7
Size	16 GB
Bus	128 bit
Bandwidth	448 GB/s
Speed	28 Gbps

Clocks
Base clock2407 MHz
Boost Clock2572 MHz
Memory Clock1750 MHz
Power
TDP180 w
Recommended PSU600 w
Display
HDCP2.3

Clocks
Base clock	2407 MHz
Boost Clock	2572 MHz
Memory Clock	1750 MHz

Power
TDP	180 w
Recommended PSU	600 w

Display
HDCP	2.3

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Zotac GeForce RTX 5060 Ti AMP ZT-B50620F-10M	2632 MHz +2.3%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge OC White Edition ZT-B50620Q-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge OC ZT-B50620H-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge ZT-B50620E-10M	2572 MHz	2.1	220.5 mm	120.25 mm	41.6 mm
Gigabyte AORUS GeForce RTX 5060 Ti ELITE GV-N506TAORUS E-16GD	2722 MHz +5.8%	2.1	329 mm	128 mm	41 mm
Gigabyte GeForce RTX 5060 Ti GAMING OC GV-N506TGAMING OC-16GD	2647 MHz +2.9%	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 Ti GAMING GV-N506TGAMING-16GD	2572 MHz	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE GV-N506TEAGLEOC ICE-16GD	2617 MHz +1.7%	2	215 mm	122 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC GV-N506TEAGLEMAX OC-16GD	2617 MHz +1.7%	2	281 mm	115 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE OC GV-N506TEAGLE OC-16GD	2617 MHz +1.7%	2	215 mm	122 mm	40 mm
Gigabyte GeForce RTX 5060 Ti AERO OC GV-N506TAERO OC-16GD	2647 MHz +2.9%	2	281 mm	117 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC GV-N506TWF2MAX OC-16GD	2587 MHz +0.6%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX GV-N506TWF2MAX-16GD	2572 MHz	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE OC GV-N506TWF2OC-16GD	2587 MHz +0.6%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE GV-N506TWF2-16GD	2572 MHz	2	208 mm	120 mm	40 mm
Asus Dual GeForce RTX 5060 Ti EVO DUAL-RTX5060TI-16G-EVO	2572 MHz	2.1	225 mm	120 mm	42 mm
Asus Dual GeForce RTX 5060 Ti EVO OC Edition DUAL-RTX5060TI-O16G-EVO	2602 MHz +1.2%	2.1	225 mm	120 mm	42 mm
Asus Dual GeForce RTX 5060 Ti White OC Edition DUAL-RTX5060TI-O16G-WHITE	2602 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti White Edition DUAL-RTX5060TI-16G-WHITE	2572 MHz	2.5	229 mm	120 mm	50 mm

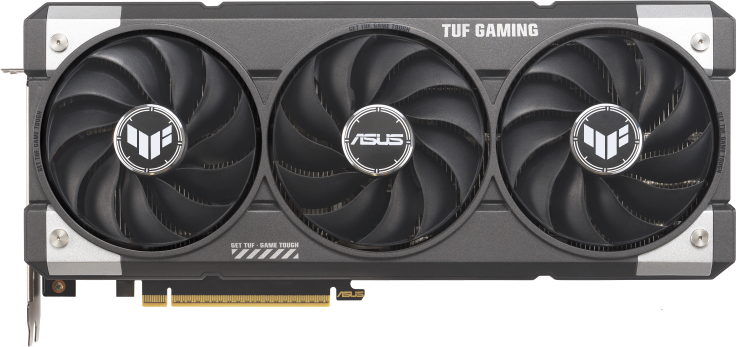

Asus TUF Gaming GeForce RTX 5060 Ti TUF-RTX5060TI-16G-GAMING	2572 MHz	3.1	302 mm	133.5 mm	62 mm
Asus Dual GeForce RTX 5060 Ti DUAL-RTX5060TI-16G	2572 MHz	2.5	229 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5060 Ti PRIME-RTX5060TI-16G	2572 MHz	2.5	304 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5060 Ti OC Edition PRIME-RTX5060TI-O16G	2617 MHz +1.7%	2.5	304 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti OC Edition DUAL-RTX5060TI-O16G	2602 MHz +1.2%	2.5	229 mm	120 mm	50 mm

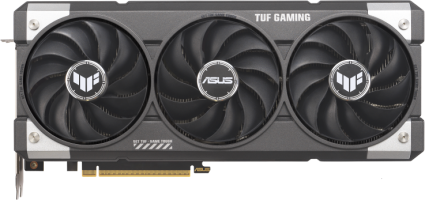

Asus TUF Gaming GeForce RTX 5060 Ti OC Edition TUF-RTX5060TI-O16G-GAMING	2662 MHz +3.5%	3.1	302 mm	133.5 mm	62 mm
MSI GeForce RTX 5060 Ti CYCLONE G506T-16C	2572 MHz	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 Ti CYCLONE OC G506T-16CC	2602 MHz +1.2%	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 Ti VENTUS 2X WHITE PLUS G506T16V2WP	2572 MHz	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VENTUS 2X OC WHITE PLUS G506T16V2CWP	2602 MHz +1.2%	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti SHADOW 2X PLUS G506T-16S2P	2572 MHz	2.1	226 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti SHADOW 2X OC PLUS G506T-16S2CP	2602 MHz +1.2%	2.1	226 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti GAMING TRIO G506T-16GT	2572 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO OC G506T-16GTC	2647 MHz +2.9%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO WHITE G506T-16GTW	2572 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO OC WHITE G506T-16GTCW	2647 MHz +2.9%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING G506T-16G	2572 MHz	2.6	247 mm	135 mm	51 mm
MSI GeForce RTX 5060 Ti GAMING OC G506T-16GC	2647 MHz +2.9%	2.6	247 mm	135 mm	51 mm
MSI GeForce RTX 5060 Ti INSPIRE 2X G506T-16I2	2572 MHz	2.5	204 mm	117 mm	50 mm
MSI GeForce RTX 5060 Ti INSPIRE 2X OC G506T-16I2C	2617 MHz +1.7%	2.5	204 mm	117 mm	50 mm
MSI GeForce RTX 5060 Ti VENTUS 3X G506T-16V3	2572 MHz	2.2	304 mm	121 mm	44 mm
MSI GeForce RTX 5060 Ti VENTUS 3X OC G506T-16V3C	2602 MHz +1.2%	2.2	304 mm	121 mm	44 mm
MSI GeForce RTX 5060 Ti VENTUS 2X PLUS G506T-16V2P	2572 MHz	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VENTUS 2X OC PLUS G506T-16V2CP	2602 MHz +1.2%	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VANGUARD OC G506T-16VGC	2647 MHz +2.9%	3.1	337 mm	140 mm	61 mm
MSI GeForce RTX 5060 Ti VANGUARD SOC G506T-16VGS	2692 MHz +4.7%	3.1	337 mm	140 mm	61 mm
Palit GeForce RTX 5060 Ti White OC NE7506TU19T1-GB2061M	2602 MHz +1.2%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Ti Infinity 3 NE7506T019T1-GB2061S	2572 MHz	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5060 Ti Infinity 3 OC NE7506TS19T1-GB2061S	2662 MHz +3.5%	2.1	291.9 mm	116.6 mm	41.3 mm

FP16 Tensor	Benchmark	73.01 TFLOPS 77.0%
FP16 Tensor	Theoretical	94.8 TFLOPS
FP32	Benchmark	21.99 TFLOPS 92.8%
FP32	Theoretical	23.7 TFLOPS
FP65	Benchmark	0.36 TFLOPS 97.2%
FP65	Theoretical	0.37 TFLOPS
