NVIDIA RTX PRO 4000 SFF

The RTX PRO 4000 SFF is a workstation-grade GPU from nvidia's Blackwell PRO W series, built on the  architecture using the GB203 chip. Equipped with 24 GB of GDDR7 memory on a 192-bit bus, it delivers 432.0 GB/s of bandwidth at 18.0 Gbps.

Launched on 10 Aug, 2025, the RTX PRO 4000 SFF carried a starting price of $1499.

Information
PlatformWorkstation
ArchitectureBlackwell 2nd-gen
GenerationBlackwell PRO W
InterfacePCIe 5.0 x16
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378 mm²
Density120.6 /mm²
GPU Core Config
Cores8960
Tensor Cores192
RT Cores70
Memory
TechnologyGDDR7
Size24 GB
Bus192 bit
Bandwidth432 GB/s
Speed18 Gbps

Information
Platform	Workstation
Architecture	Blackwell 2nd-gen
Generation	Blackwell PRO W
Interface	PCIe 5.0 x16

Core
Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378 mm²
Density	120.6 /mm²

GPU Core Config
Cores	8960
Tensor Cores	192
RT Cores	70

Memory
Technology	GDDR7
Size	24 GB
Bus	192 bit
Bandwidth	432 GB/s
Speed	18 Gbps

Clocks
Base clock577 MHz
Boost Clock1432 MHz
Memory Clock1125 MHz
Power
TDP70 w
Recommended PSU550 w
Display

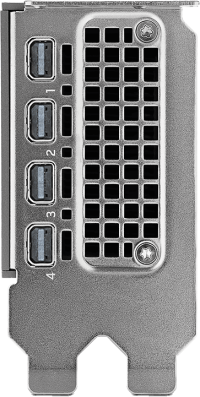

Mini DisplayPort4
Dimensions
Slots2
Length170 mm
Height69 mm

Clocks
Base clock	577 MHz
Boost Clock	1432 MHz
Memory Clock	1125 MHz

Power
TDP	70 w
Recommended PSU	550 w

Display
Mini DisplayPort	4

Dimensions
Slots	2
Length	170 mm
Height	69 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX PRO 4000 Blackwell SFF Edition VCNRTXPRO4000LP-PB	1432 MHz		mm	mm	mm
