NVIDIA TITAN X

The TITAN X is a consumer-grade GPU from nvidia's GeForce 900 series, built on the  architecture using the GM200 chip. Equipped with 12 GB of GDDR5 memory on a 384-bit bus, it delivers 336.6 GB/s of bandwidth at 7.0 Gbps.

Launched on 16 Mar, 2015, the TITAN X carried a starting price of $999.

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM200
FoundryTSMC
Process Node28 nm
Transistors8000 million
Die Size601 mm²
Density13.3 /mm²
GPU Core Config
Cores3072
TMUs192
ROPs96
Memory
TechnologyGDDR5
Size12 GB
Bus384 bit
Bandwidth336.576 GB/s
Speed7.012 Gbps

Information
Platform	Consumer
Architecture	Maxwell 2.0
Generation	GeForce 900
Previous Gen	GeForce 700
Next Gen	GeForce 10
Interface	PCIe 3.0 x16

Core
Name	GM200
Foundry	TSMC
Process Node	28 nm
Transistors	8000 million
Die Size	601 mm²
Density	13.3 /mm²

GPU Core Config
Cores	3072
TMUs	192
ROPs	96

Memory
Technology	GDDR5
Size	12 GB
Bus	384 bit
Bandwidth	336.576 GB/s
Speed	7.012 Gbps

Clocks
Base clock1000 MHz
Boost Clock1089 MHz
Memory Clock1753 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w

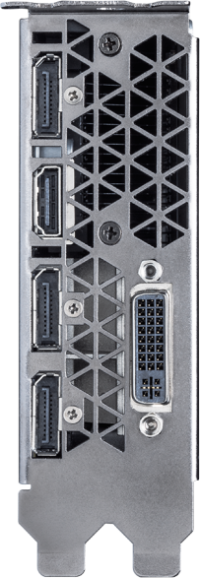

Display
DisplayPort3
HDMI1

Clocks
Base clock	1000 MHz
Boost Clock	1089 MHz
Memory Clock	1753 MHz

Power
6-pin	1
8-pin	1
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	3
HDMI	1

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA TITAN X	1089 MHz		mm	mm	mm
