NVIDIA RTX PRO 5000 48GB

The RTX PRO 5000 48GB is a workstation-grade GPU from NVIDIA's Blackwell PRO W series, built on the  architecture using the GB202 chip. Equipped with 48 GB of GDDR7 memory on a 384-bit bus, it delivers 1344.0 GB/s of bandwidth at 28.0 Gbps.

Launched on 17 Mar, 2025, the RTX PRO 5000 48GB carried a starting price of $4499.

Rent RTX PRO 5000 48GB
Cost $0.73/h*
Vast
* Median price
Host RTX PRO 5000 48GB
Earn $0.55/h*
Vast
* Median price

Information
PlatformWorkstation
ArchitectureBlackwell 2nd-gen
GenerationBlackwell PRO W
InterfacePCIe 5.0 x16
Core
NameGB202
FoundryTSMC
Process Node5 nm
Transistors92200 million
Die Size750 mm²
Density122.9 /mm²
GPU Core Config
Cores14080
TMUs440
ROPs176
SMs110
Tensor Cores440
RT Cores110
Memory
TechnologyGDDR7
Size48 GB
Bus384 bit
Bandwidth1344 GB/s
Speed28 Gbps

Information
Platform	Workstation
Architecture	Blackwell 2nd-gen
Generation	Blackwell PRO W
Interface	PCIe 5.0 x16

Core
Name	GB202
Foundry	TSMC
Process Node	5 nm
Transistors	92200 million
Die Size	750 mm²
Density	122.9 /mm²

GPU Core Config
Cores	14080
TMUs	440
ROPs	176
SMs	110
Tensor Cores	440
RT Cores	110

Memory
Technology	GDDR7
Size	48 GB
Bus	384 bit
Bandwidth	1344 GB/s
Speed	28 Gbps

Clocks
Base clock1590 MHz
Boost Clock2620 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP300 w
Recommended PSU700 w
Display

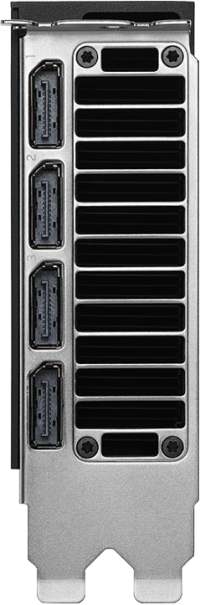

DisplayPort4
Dimensions
Slots2
Length267 mm
Height111 mm
Width40 mm

Clocks
Base clock	1590 MHz
Boost Clock	2620 MHz
Memory Clock	1750 MHz

Power
16-pin	1
TDP	300 w
Recommended PSU	700 w

Display
DisplayPort	4

Dimensions
Slots	2
Length	267 mm
Height	111 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX PRO 5000 VCNRTXPRO5000-PB	2620 MHz		mm	mm	mm
