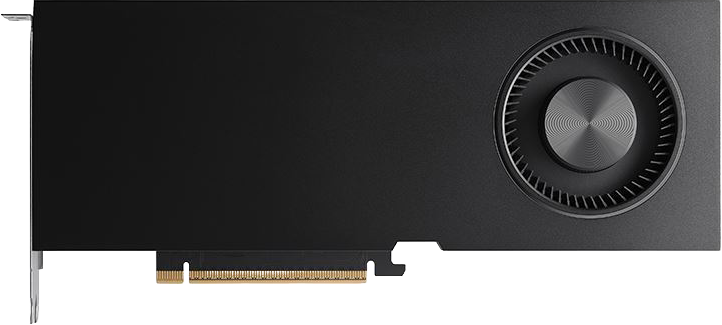

PNY RTX PRO 5000
VCNRTXPRO5000-PB
Take your professional workflows to the next level with the NVIDIA RTX PRO™ 5000 Blackwell Generation. Equipped with the latest NVIDIA architecture and 48GB of fast GDDR7 memory, this GPU delivers exceptional performance, graphics, and AI capabilities, making it perfect for professionals who demand the best. With NVIDIA's AI-powered technologies, professionals can accelerate their workflows, bring complex projects to life, and achieve stunning results, all while enjoying seamless multitasking and improved collaboration.

Information
PlatformWorkstation
ArchitectureBlackwell 2nd-gen
GenerationBlackwell PRO W
InterfacePCIe 5.0 x16
Core
NameGB202
FoundryTSMC
Process Node5 nm
Transistors92200 million
Die Size750 mm²
Density122.9 /mm²
GPU Core Config
Cores14080
TMUs440
ROPs176
SMs110
Tensor Cores440
RT Cores110
Memory
TechnologyGDDR7
Size48 GB
Bus384 bit
Bandwidth1344 GB/s
Speed28 Gbps

Information
Platform	Workstation
Architecture	Blackwell 2nd-gen
Generation	Blackwell PRO W
Interface	PCIe 5.0 x16

Core
Name	GB202
Foundry	TSMC
Process Node	5 nm
Transistors	92200 million
Die Size	750 mm²
Density	122.9 /mm²

GPU Core Config
Cores	14080
TMUs	440
ROPs	176
SMs	110
Tensor Cores	440
RT Cores	110

Memory
Technology	GDDR7
Size	48 GB
Bus	384 bit
Bandwidth	1344 GB/s
Speed	28 Gbps

Clocks
Base clock1590 MHz
Boost Clock2620 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP300 w
Recommended PSU700 w
Display

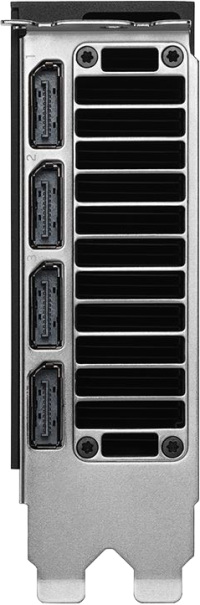

DisplayPort4
Dimensions
Slots2
Length267 mm
Height111 mm
Width40 mm

Clocks
Base clock	1590 MHz
Boost Clock	2620 MHz
Memory Clock	1750 MHz

Power
16-pin	1
TDP	300 w
Recommended PSU	700 w

Display
DisplayPort	4

Dimensions
Slots	2
Length	267 mm
Height	111 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY RTX PRO 5000 VCNRTXPRO5000-PB	2620 MHz		mm	mm	mm
