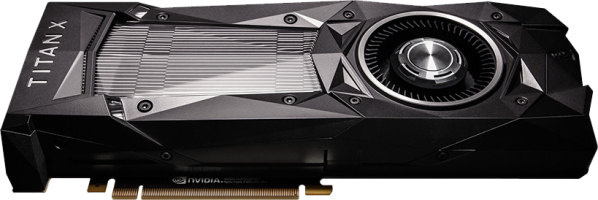

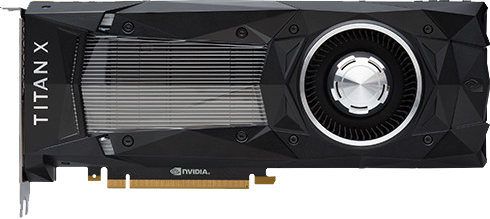

NVIDIA TITAN Xp

The TITAN Xp is a consumer-grade GPU from NVIDIA's GeForce 10 series, built on the  architecture using the GP102 chip. Equipped with 12 GB of GDDR5X memory on a 384-bit bus, it delivers 547.6 GB/s of bandwidth at 11.4 Gbps.

Launched on 5 Apr, 2017, the TITAN Xp carried a starting price of $1199.

Rent TITAN Xp
Cost $0.04/h*
Vast
* Median price
Host TITAN Xp
Earn $0.03/h*
Vast
* Median price

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Max temperature94 C
Core
NameGP102
FoundryTSMC
Process Node16 nm
Transistors11800 million
Die Size471 mm²
Density25.1 /mm²
GPU Core Config
Cores3840
TMUs240
ROPs96
Memory
TechnologyGDDR5X
Size12 GB
Bus384 bit
Bandwidth547.584 GB/s
Speed11.408 Gbps

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next Gen	GeForce RTX 20
Interface	PCIe 3.0 x16
Max temperature	94 C

Core
Name	GP102
Foundry	TSMC
Process Node	16 nm
Transistors	11800 million
Die Size	471 mm²
Density	25.1 /mm²

GPU Core Config
Cores	3840
TMUs	240
ROPs	96

Memory
Technology	GDDR5X
Size	12 GB
Bus	384 bit
Bandwidth	547.584 GB/s
Speed	11.408 Gbps

Clocks
Base clock1405 MHz
Boost Clock1582 MHz
Memory Clock1426 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w
Display
DisplayPort3
HDMI1
Dimensions
Slots2
Length266.7 mm
Height111.2 mm
Width40 mm

Clocks
Base clock	1405 MHz
Boost Clock	1582 MHz
Memory Clock	1426 MHz

Power
6-pin	1
8-pin	1
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	3
HDMI	1

Dimensions
Slots	2
Length	266.7 mm
Height	111.2 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA TITAN Xp	1582 MHz	2	266.7 mm	111.2 mm	40 mm
NVIDIA TITAN Xp Star Wars Galactic Empire	1582 MHz	2.3	272.3 mm	113.3 mm	44.5 mm
NVIDIA TITAN Xp Star Wars Jedi Order	1582 MHz	2.3	272.3 mm	113.3 mm	44.5 mm
