MSI Radeon HD 6970 LIGHTNING
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > AMD Radeon HD 6970 > MSI Radeon HD 6970 LIGHTNING

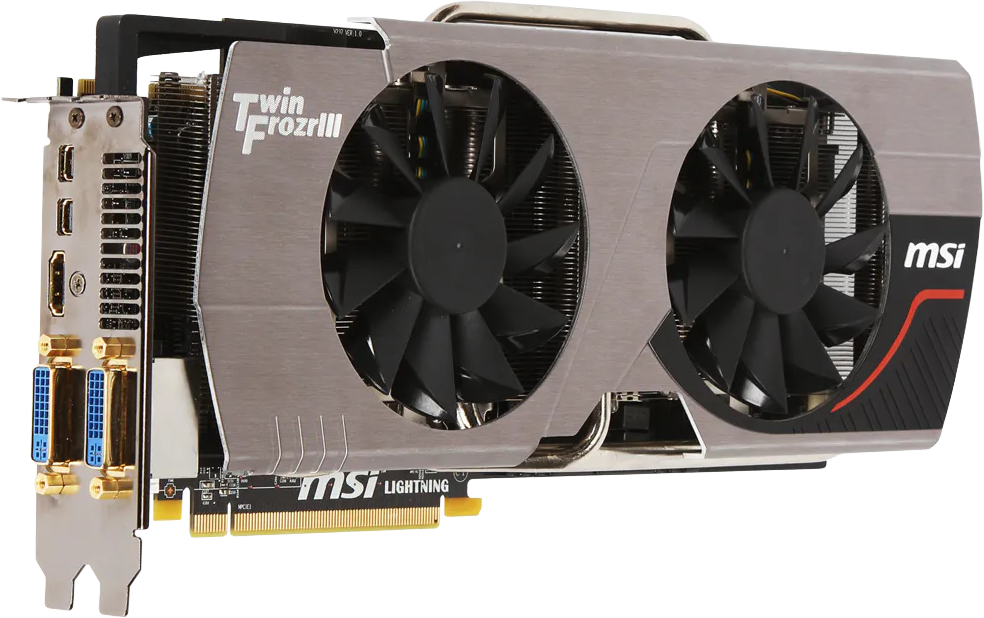

MSI Radeon HD 6970 LIGHTNING - Front
MSI Radeon HD 6970 LIGHTNING - Front MSI Radeon HD 6970 LIGHTNING - Side MSI Radeon HD 6970 LIGHTNING - Side MSI Radeon HD 6970 LIGHTNING - Outputs
MSI Radeon HD 6970 LIGHTNING
R6970 LIGHTNING
Information
PlatformConsumer
ArchitectureTeraScale 3
GenerationNorthern Islands
Previous GenEvergreen
Next GenSouthern Islands
InterfacePCIe 2.0 x16
Core
NameCayman
FoundryTSMC
Process Node40 nm
Transistors2640 million
Die Size389.0 mm²
Density6.8 /mm²
GPU Core Config
Cores1536
Compute Units24
TMUs96
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth176.0 GB/s
Speed5.5 Gbps
Clocks
Base clock940 MHz 880 MHz
Memory Clock1375 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w
Display
HDMI1 1.4
Mini DisplayPort2
DVI-D DL1
DVI-D SL1
Dimensions
Slots2 2.1
Length310 mm 286 mm
Height127 mm 126 mm
Width40 mm 42 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI Radeon HD 6970 LIGHTNING
R6970 LIGHTNING
2310 mm127 mm40 mm
