Asus ROG Matrix HD 7970 Platinum
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > AMD Radeon HD 7970 > Asus ROG Matrix HD 7970 Platinum

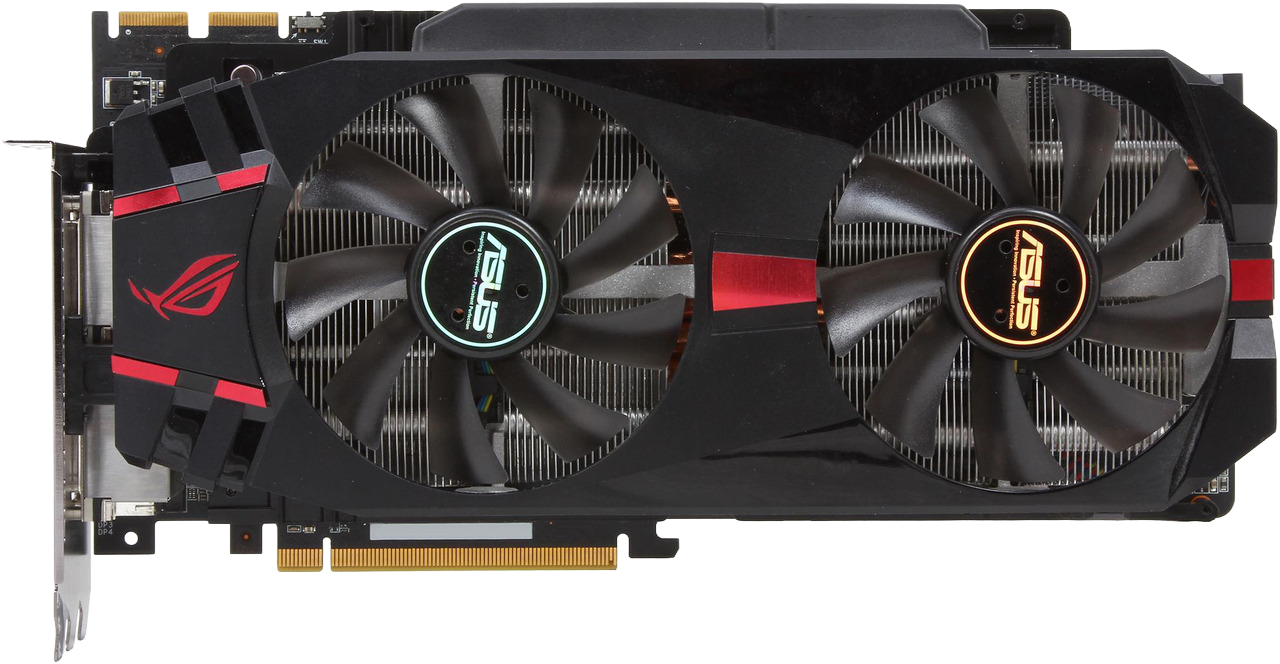

Asus ROG Matrix HD 7970 Platinum - Front
Asus ROG Matrix HD 7970 Platinum - Front
Asus ROG Matrix HD 7970 Platinum
MATRIX-HD7970-P-3GD5
Information
PlatformConsumer
ArchitectureGCN 1.0
GenerationSouthern Islands
Previous GenNorthern Islands
Next GenSea Islands
InterfacePCIe 3.0 x16
Core
NameTahiti
FoundryTSMC
Process Node28 nm
Transistors4313 million
Die Size352.0 mm²
Density12.3 /mm²
GPU Core Config
Cores2048
TMUs128
Compute Units32
ROPs32
Memory
TechnologyGDDR5
Size3 GB
Bus384 bit
Bandwidth264.0 GB/s
Speed5.5 Gbps
Clocks
Base clock1050 MHz 925 MHz
Boost Clock1100 MHz
Memory Clock1650 MHz 1375 MHz
Power
8-pin2
TDP300 w 250 w
Recommended PSU700 w 600 w
Display
DisplayPort4 1.2
Mini DisplayPort2
DVI2
Dimensions
Slots3 2
Length279 mm 275 mm
Height111 mm
Width38 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲

Asus ROG Matrix HD 7970 Platinum
MATRIX-HD7970-P-3GD5
1100 MHz3279 mm

Asus ROG Matrix HD 7970
MATRIX-HD7970-3GD5
1050 MHz -4.5%3279 mm
MSI Radeon HD 7970 LIGHTNING BE
R7970 LIGHTNING BE
1150 MHz +4.5%2305 mm135 mm40 mm
