Asus ATS Radeon RX 9070 GRE OC Edition
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > AMD RX 9070 GRE > Asus ATS Radeon RX 9070 GRE OC Edition

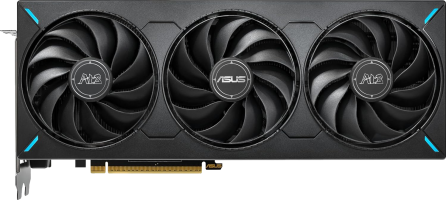

Asus ATS Radeon RX 9070 GRE OC Edition - Front

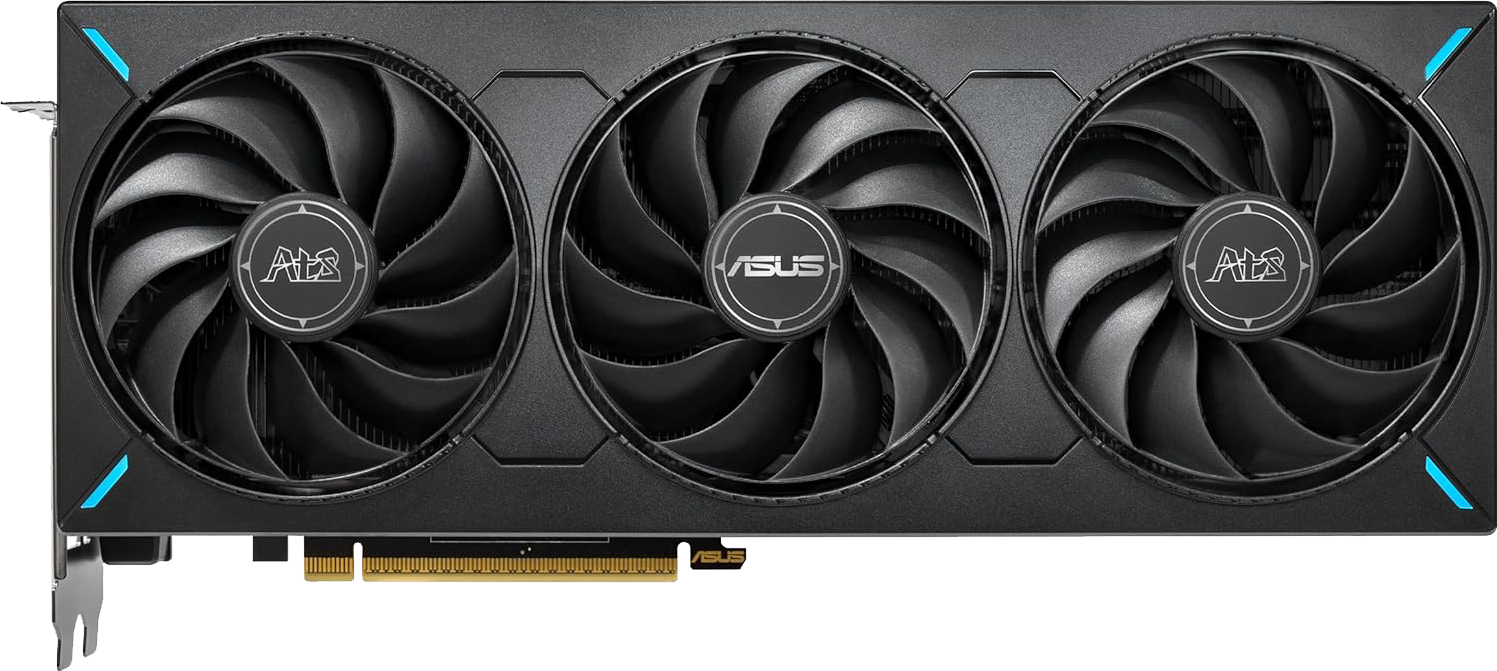

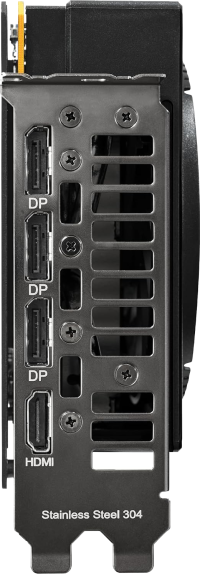

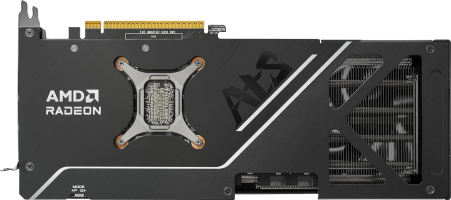

Asus ATS Radeon RX 9070 GRE OC Edition - Front Asus ATS Radeon RX 9070 GRE OC Edition - Rear Asus ATS Radeon RX 9070 GRE OC Edition - Outputs
Asus ATS Radeon RX 9070 GRE OC Edition
ATS-RX9070GRE-O12G
Available at Amazon from $589.99. Buy now!
TechnologyGDDR6
Size12 GB
Bus192 bit
Bandwidth32.0 GB/s
Speed2.0 Gbps
Information
PlatformConsumer
ArchitectureRDNA4
GenerationRX 9000
Previous GenRX 7000
InterfacePCIe 5.0 x16
Core
NameNavi 48
FoundryTSMC
Process Node4 nm
Transistors53900 million
Die Size357.0 mm²
Density151.0 /mm²
GPU Core Config
Cores3072
TMUs192
ROPs96
Clocks
Base clock1420 MHz
Game Clock2300 MHz 2220 MHz
Boost Clock2880 MHz 2790 MHz
Memory Clock2250 MHz
Power
8-pin2
TDP220 w
Recommended PSU650 w 600 w
Display
DisplayPort3 2.1a
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2.5
Length305 mm
Height126 mm
Width50 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus Prime Radeon RX 9070 GRE OC Edition
PRIME-RX9070GRE-O12G
2880 MHz +3.2%2.5312 mm130 mm50 mm
PowerColor Red Devil AMD Radeon RX 9070 GRE
RX9070GRE 12G-E/OC
2920 MHz +4.7%3.5340 mm132 mm69 mm
PowerColor Reaper AMD Radeon RX 9070 GRE
RX9070GRE 12G-A
2790 MHz2.1289 mm111 mm41 mm
PowerColor Hellhound AMD Radeon RX 9070 GRE
RX9070GRE 12G-L/OC
2860 MHz +2.5%2.1327 mm128 mm41 mm
XFX Swift AMD Radeon RX 9070GRE Triple Fan Gaming Edition
RX-97GRE29BA
2790 MHz3301 mm153 mm59 mm
XFX Swift AMD Radeon RX 9070GRE White Triple Fan Gaming Edition
RX-97GRE29W7
2790 MHz3301 mm153 mm59 mm
Asus Prime Radeon RX 9070 GRE EVO OC Edition
PRIME-RX9070GRE-O12G-EVO
2880 MHz +3.2%2.5304 mm126 mm50 mm
Gigabyte Radeon RX 9070 GRE GAMING OC
GV-R907GREGAMING OC-12GD
2920 MHz +4.7%2.5288 mm132 mm50 mm
Asus ATS Radeon RX 9070 GRE OC Edition
ATS-RX9070GRE-O12G
2880 MHz +3.2%2.5305 mm126 mm50 mm
ASRock AMD Radeon RX 9070 GRE Steel Legend Dark OC
RX9070GRE SLD 12GO
2920 MHz +4.7%2.9298 mm131 mm58 mm
