Name: ASRock Intel Arc A770 Phantom Gaming OC
Brand: ASRock
SKU: A770 PG 16GO

ASRock Intel Arc A770 Phantom Gaming OC

Specs, info and data

The GPU Database

Featuring 270+ GPU models — and growing.

Database > GPUs > Intel Arc A770 > ASRock Intel Arc A770 Phantom Gaming OC

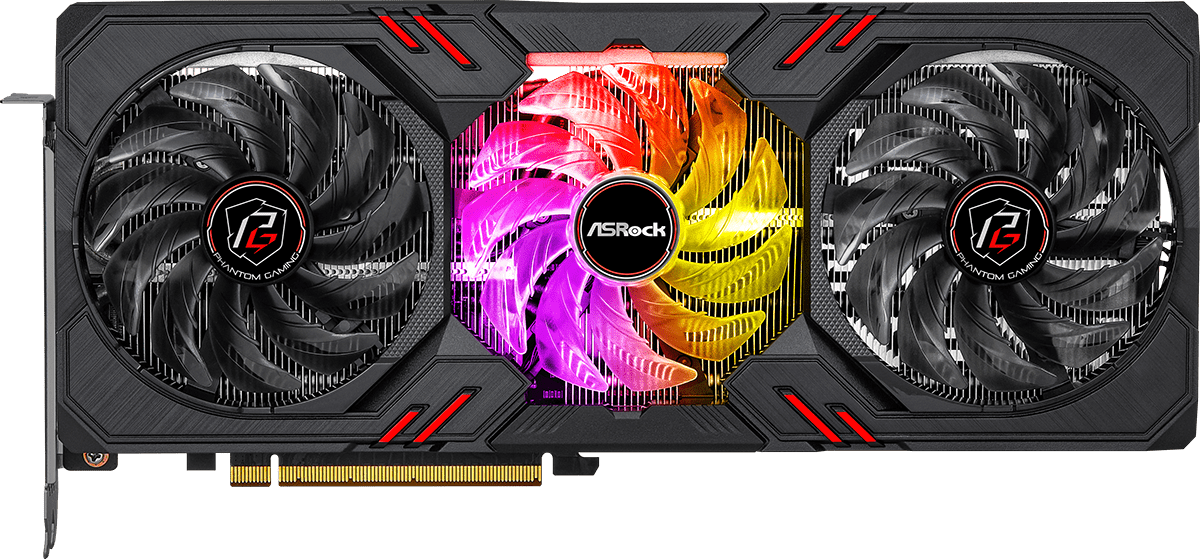

ASRock Intel Arc A770 Phantom Gaming OC - Front

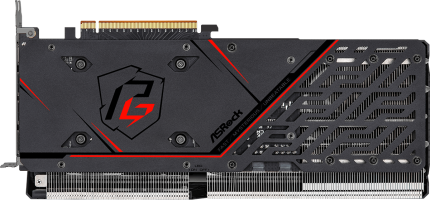

ASRock Intel Arc A770 Phantom Gaming OC - Rear

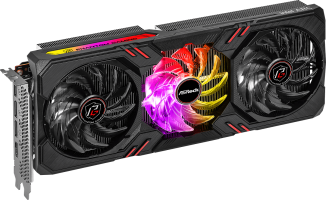

ASRock Intel Arc A770 Phantom Gaming OC - Side

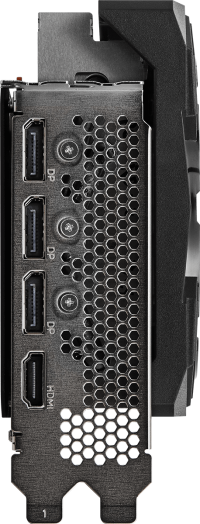

ASRock Intel Arc A770 Phantom Gaming OC - Outputs

ASRock Intel Arc A770 Phantom Gaming OC
A770 PG 16GO
GPUs.net

Information
PlatformConsumer
ArchitectureAlchemist
GenerationArc A
Next GenArc B
InterfacePCIe 4.0 x16
Core
NameDG2-512
FoundryTSMC
Process Node6 nm
Transistors21700 million
Die Size406.0 mm²
Density53.4 /mm²
GPU Core Config
Cores4096
TMUs256
ROPs128
Tensor Cores512
RT Cores32
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Bandwidth1,024.0 GB/s
Speed32.0 Gbps

Clocks
Base clock2100 MHz
Boost Clock2200 MHz 2400 MHz
Memory Clock2000 MHz
Power
6-pin1
8-pin1
TDP225 w
Recommended PSU700 w 550 w
Display
DisplayPort3 2.0
HDMI1 2.1
Dimensions
Slots2.8
Length305 mm
Height131 mm
Width56 mm
Weight1146 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Intel Arc A770 Challenger SE OC A770 CL SE 16GO	2400 MHz	2.4	267 mm	130 mm	48 mm
Sparkle Intel Arc A770 ROC OC Edition SA770R-16GOC	2300 MHz -4.2%	2.6	281 mm	131 mm	51 mm
ASRock Intel Arc A770 Phantom Gaming OC A770 PG 16GO	2200 MHz -8.3%	2.8	305 mm	131 mm	56 mm
ASRock Intel Arc A770 Challenger OC A770 CL 16GO	2150 MHz -10.4%	2.4	271 mm	132 mm	48 mm
Sparkle Intel Arc A770 ROC LUNA OC Edition SA770RW-16GOC	2300 MHz -4.2%	2.6	281 mm	131 mm	51 mm
Acer BiFrost Arc A770 OC DP.BKCWW.P02	2200 MHz -8.3%			117.8 mm
