ASRock Intel Arc Pro B60 Creator
Specs, info and data
The GPU Database
Featuring 250+ GPU models — and growing.

Database > GPUs > Intel Arc Pro B60 > ASRock Intel Arc Pro B60 Creator

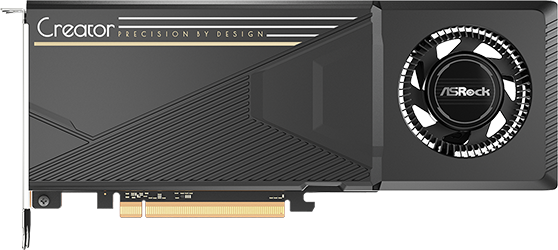

ASRock Intel Arc Pro B60 Creator - Front

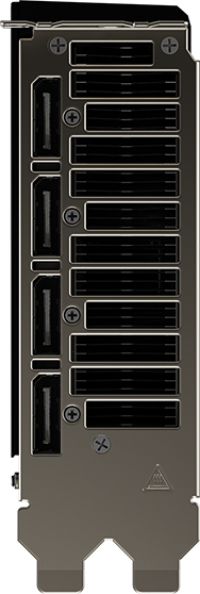

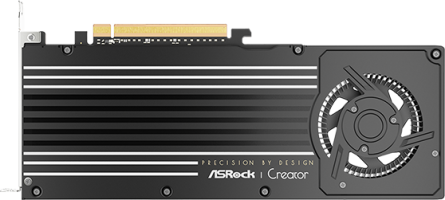

ASRock Intel Arc Pro B60 Creator - Front ASRock Intel Arc Pro B60 Creator - Rear ASRock Intel Arc Pro B60 Creator - Side ASRock Intel Arc Pro B60 Creator - Outputs
ASRock Intel Arc Pro B60 Creator
B60 CT 24G

Available at Newegg from $659.99. Buy now!


Information
PlatformWorkstation
ArchitectureBattlemage
GenerationArc B
Previous GenArc A
InterfacePCIe 5.0 x8
Core
NameBMG-G21
FoundryTSMC
Process Node5 nm
Transistors19600 million
Die Size272.0 mm²
Density72.1 /mm²
GPU Core Config
Cores2560
TMUs160
ROPs80
RT Cores20
Memory
TechnologyGDDR6
Size24 GB
Bus192 bit
Bandwidth456.0 GB/s
Speed19.0 Gbps
Clocks
Base clock2000 MHz
Boost Clock2400 MHz
Memory Clock2375 MHz
Power
8-pin1
TDP200 w
Recommended PSU550 w
Display
DisplayPort4 2.1
Mini DisplayPort4
Dimensions
Slots2
Length271 mm 167 mm
Height112 mm 69 mm
Width39 mm 40 mm
Weight1118 g

Models
GPUBoost ClockSlotsLengthHeightWidth
2400 MHz2.1289 mm120 mm42 mm
2400 MHz2.1289 mm120 mm42 mm
2400 MHz2271 mm112 mm39 mm
