Name: BIOSTAR GeForce GT1030
Brand: BIOSTAR
SKU: VN1034TB46

BIOSTAR GeForce GT1030

Specs, info and data

The GPU Database

Featuring 270+ GPU models — and growing.

Database > GPUs > NVIDIA GT 1030 > BIOSTAR GeForce GT1030

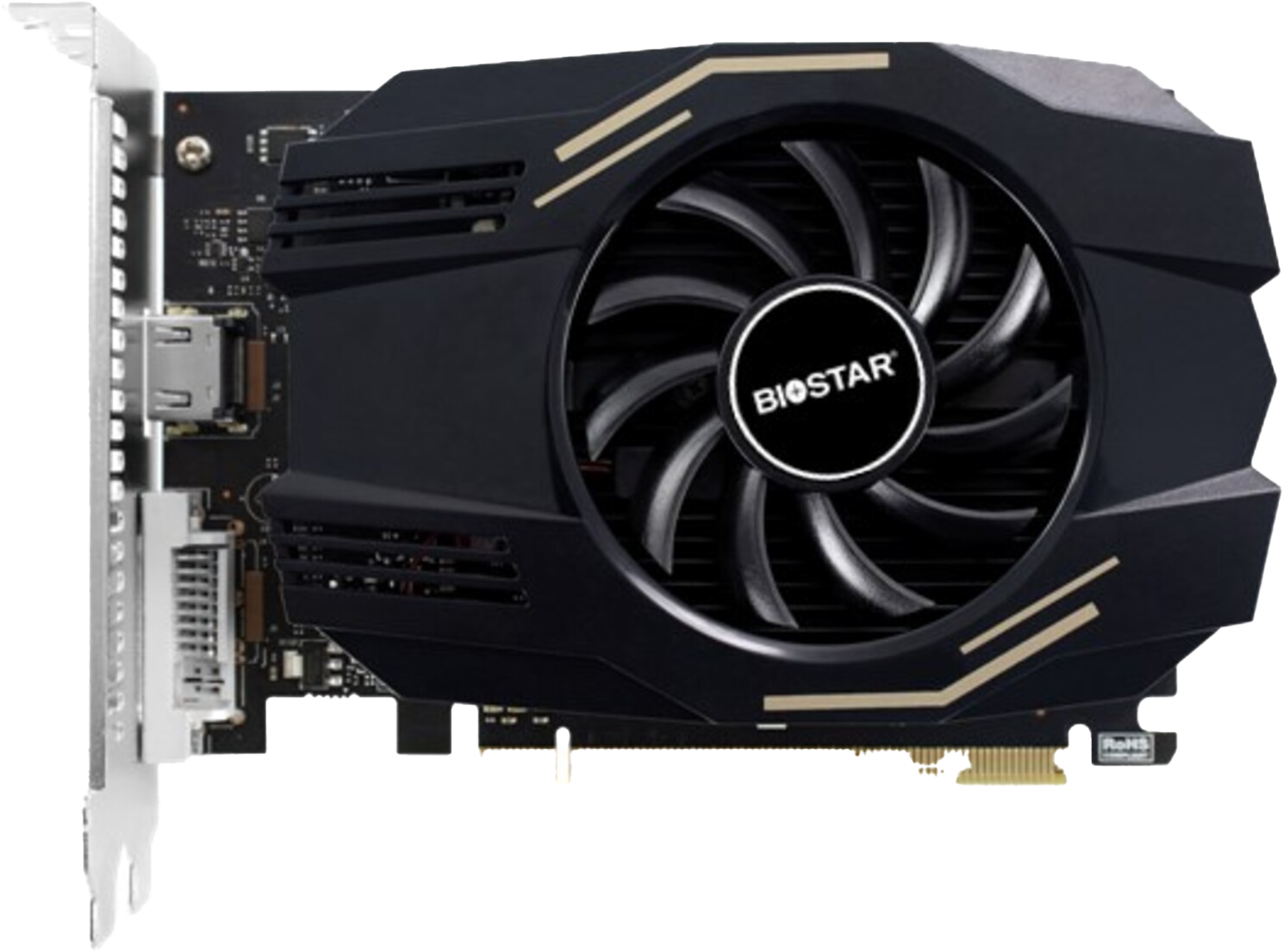

BIOSTAR GeForce GT1030
VN1034TB46
GPUs.net

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
Interface PCIe 3.0 x4
Core
NameGP108
FoundrySamsung
Process Node14 nm
Transistors1800 million
Die Size74.0 mm²
Density24.3 /mm²
GPU Core Config
Cores384
TMUs24
ROPs16
Memory
TechnologyGDDR5
Size4 GB 2 GB
Bus64 bit
Bandwidth48.1 GB/s
Speed6.0 Gbps

Clocks
Base clock1152 MHz 1228 MHz
Boost Clock1380 MHz 1468 MHz
Memory Clock1502 MHz
Power
TDP30 w
Recommended PSU300 w 200 w
Display
HDMI1 2.0b
HDCP2.2
DVI1
Dimensions
Slots1

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus GeForce GT 1030 Silent GT1030-SL-2G-BRK	1506 MHz +2.6%	2	173 mm	69 mm	40 mm
MSI GeForce GT 1030 4GHD4 LP OC	1430 MHz -2.6%	1.9	150 mm	69 mm	38 mm
Zotac GeForce GT 1030 ZT-P10300A-10L	1468 MHz	1	172.5 mm	111.2 mm	16 mm
Gigabyte GT 1030 Low Profile D4 GV-N1030D4-2GL	1468 MHz
MSI GeForce GT 1030 2GH LP OC	1518 MHz +3.4%	1.9	153 mm	69 mm	38 mm
Asus GeForce GT 1030 GT1030-2G-BRK	1468 MHz	1
Asus Phoenix GeForce GT 1030 OC edition PH-GT1030-O2G	1531 MHz +4.3%	1.8	184 mm	111 mm	36 mm
Asus GeForce GT 1030 CSM GT1030-2G-CSM	1506 MHz +2.6%	2	173 mm	69 mm	40 mm
EVGA GeForce GT 1030 SC 02G-P4-6333-KR	1544 MHz +5.2%	1.5	169 mm	68.8 mm
EVGA GeForce GT 1030 SC Single slot 02G-P4-6338-KR	1544 MHz +5.2%	1	167.8 mm	111.2 mm
BIOSTAR GeForce GT1030 VN1034TB46	1380 MHz -6.0%
