BIOSTAR GeForce GTX 1050 Ti
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 1050 Ti > BIOSTAR GeForce GTX 1050 Ti

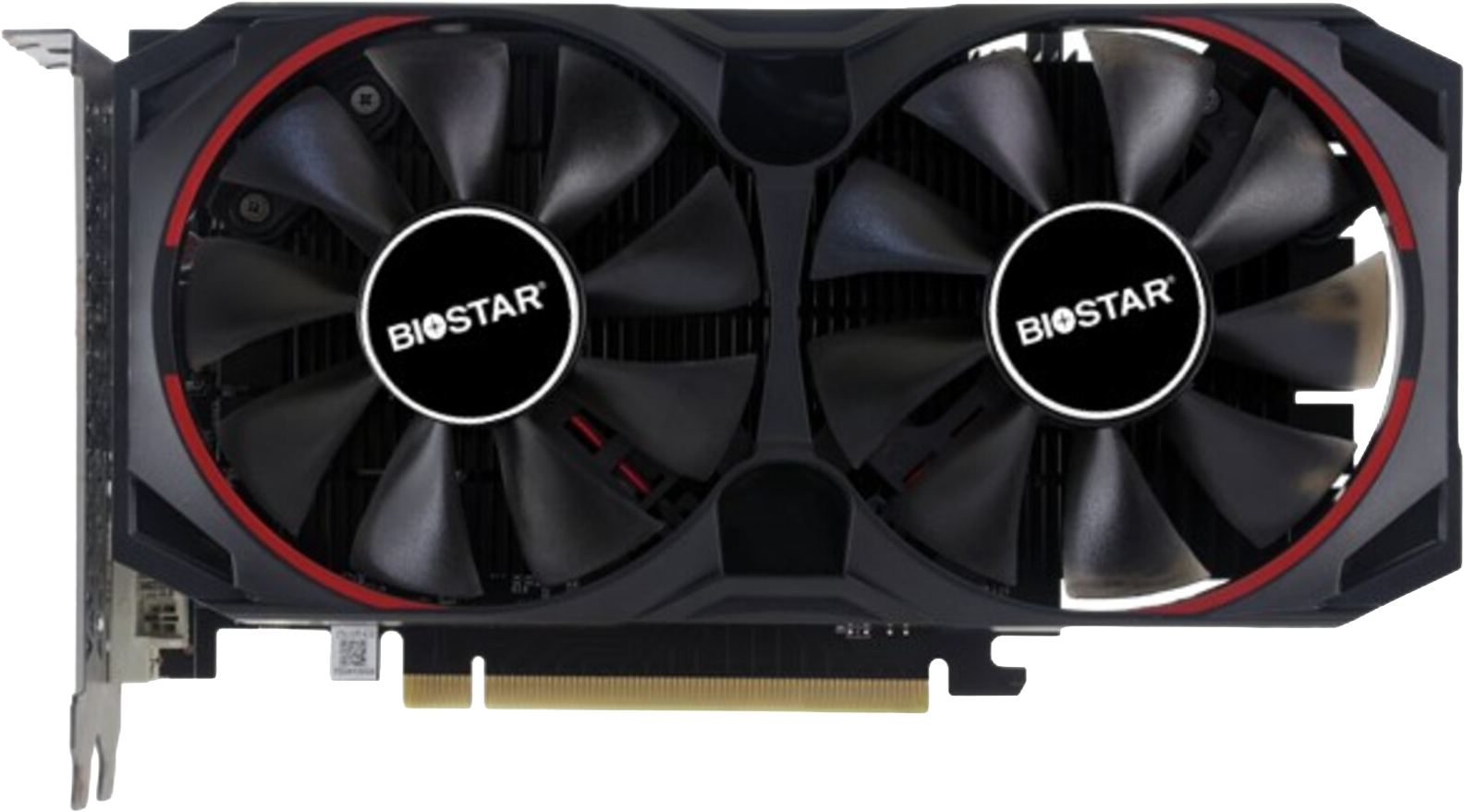

BIOSTAR GeForce GTX 1050 Ti - Front

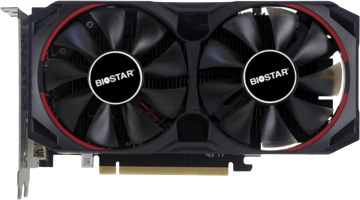

BIOSTAR GeForce GTX 1050 Ti - Front
BIOSTAR GeForce GTX 1050 Ti
VN1055TF41
Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
NameGP107
InterfacePCIe 3.0 x16
Core
NameGP107
FoundrySamsung
Process Node14 nm
Transistors3300 million
Die Size132.0 mm²
Density25.0 /mm²
GPU Core Config
Cores768
TMUs48
ROPs32
Memory
TechnologyGDDR5
Size4 GB
Bus128 bit
Bandwidth112.1 GB/s
Speed7.0 Gbps
Clocks
Base clock1291 MHz 1290 MHz
Boost Clock1392 MHz
Memory Clock1752 MHz
Power
TDP75 w
Recommended PSU250 w 300 w
Display
DisplayPort1 1.4a
HDMI1 2.0
DVI1
Dimensions
Slots2.3 2
Length195 mm
Height127 mm
Width45 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Gigabyte GeForce GTX 1050 Ti D5
GV-N105TD5-4GD
1430 MHz +2.7%2172 mm113 mm30 mm
MSI GeForce GTX 1050 Ti 4GT OC
G1050T4TC
1455 MHz +4.5%2215 mm112 mm38 mm
BIOSTAR GeForce GTX 1050 Ti
VN1055TF41
1392 MHz2.3195 mm127 mm45 mm
