NVIDIA GTX 1070 Founders Edition

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 1070 > NVIDIA GTX 1070 Founders Edition

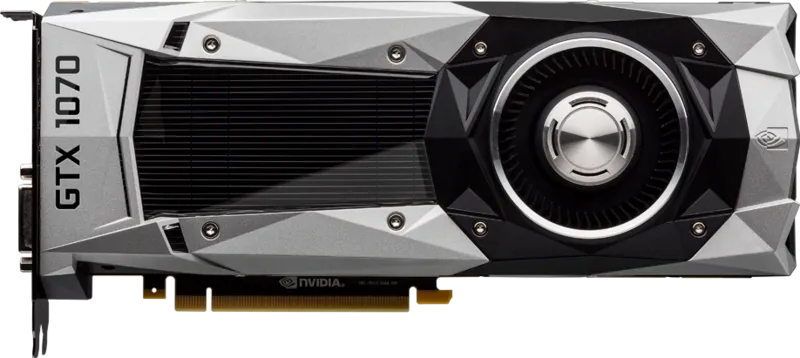

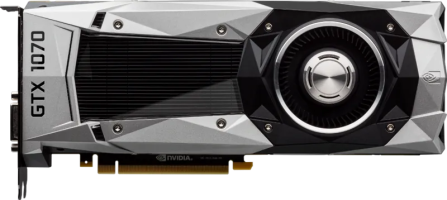

NVIDIA GTX 1070 Founders Edition
900-1G411-0020-000

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
NameGP104
Interface PCIe 3.0 x16
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314 mm²
Density22.9 /mm²
GPU Core Config
Cores1920
TMUs120
ROPs64
Memory
TechnologyGDDR5
Size8 GB
Bus256 bit
Bandwidth256.256 GB/s
Speed8.008 Gbps

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next Gen	GeForce RTX 20
Name	GP104
Interface	PCIe 3.0 x16

Core
Name	GP104
Foundry	TSMC
Process Node	16 nm
Transistors	7200 million
Die Size	314 mm²
Density	22.9 /mm²

GPU Core Config
Cores	1920
TMUs	120
ROPs	64

Memory
Technology	GDDR5
Size	8 GB
Bus	256 bit
Bandwidth	256.256 GB/s
Speed	8.008 Gbps

Clocks
Base clock1506 MHz
Boost Clock1683 MHz
Memory Clock2002 MHz
Power
8-pin1
TDP150 w
Recommended PSU500 w

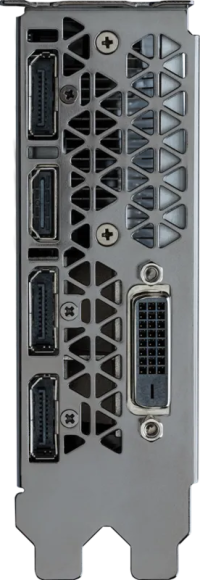

Display
DisplayPort3 1.4
HDMI1 2.0b
DVI1
Resolution7680x4320
Dimensions
Slots2
Length266.7 mm
Height111.2 mm
Width40 mm

Clocks
Base clock	1506 MHz
Boost Clock	1683 MHz
Memory Clock	2002 MHz

Power
8-pin	1
TDP	150 w
Recommended PSU	500 w

Display
DisplayPort	3 1.4
HDMI	1 2.0b
DVI	1
Resolution	7680x4320

Dimensions
Slots	2
Length	266.7 mm
Height	111.2 mm
Width	40 mm

Bios files

86.04.1E.00.01

N/A

Download

Size: 250.5 KB

Build: 2016-05-20

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA GTX 1070 Founders Edition 900-1G411-0020-000	1683 MHz	2	266.7 mm	111.2 mm	40 mm
