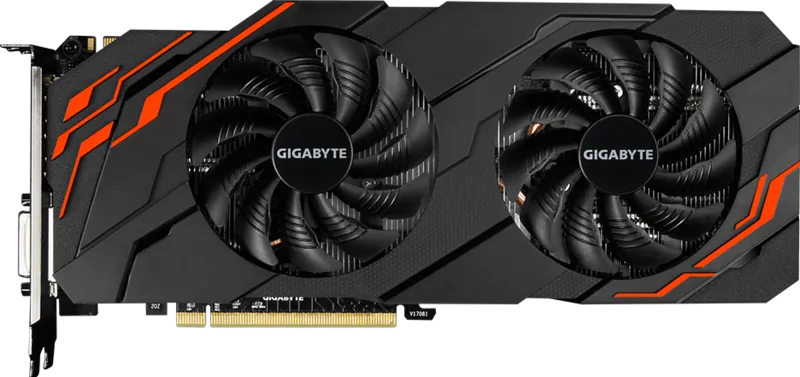

Gigabyte GeForce GTX 1070 Ti WINDFORCE
GV-N107TWF2-8GD

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
NameGP104
InterfacePCIe 3.0 x16
Core
NameGP104
FoundryTSMC
Process Node16 nm
Transistors7200 million
Die Size314 mm²
Density22.9 /mm²
GPU Core Config
Cores2432
TMUs152
ROPs64
Memory
TechnologyGDDR5
Size8 GB
Bus256 bit
Bandwidth256.256 GB/s
Speed8.008 Gbps

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next Gen	GeForce RTX 20
Name	GP104
Interface	PCIe 3.0 x16

Core
Name	GP104
Foundry	TSMC
Process Node	16 nm
Transistors	7200 million
Die Size	314 mm²
Density	22.9 /mm²

GPU Core Config
Cores	2432
TMUs	152
ROPs	64

Memory
Technology	GDDR5
Size	8 GB
Bus	256 bit
Bandwidth	256.256 GB/s
Speed	8.008 Gbps

Clocks
Base clock1607 MHz
Boost Clock1683 MHz
Memory Clock2002 MHz
Power
8-pin1
TDP180 w
Recommended PSU450 w

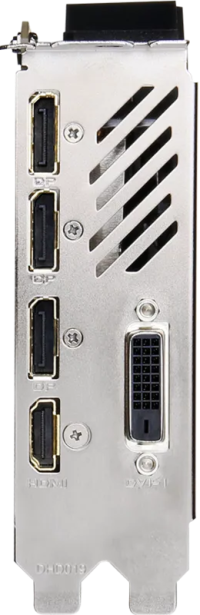

Display
DisplayPort3
HDMI1
DVI1
Dimensions
Slots2

Clocks
Base clock	1607 MHz
Boost Clock	1683 MHz
Memory Clock	2002 MHz

Power
8-pin	1
TDP	180 w
Recommended PSU	450 w

Display
DisplayPort	3
HDMI	1
DVI	1

Dimensions
Slots	2

Bios files

86.04.85.00.A0

N/A

Download

Size: 262.5 KB

Build: 2017-09-22

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Gigabyte GeForce GTX 1070 Ti WINDFORCE GV-N107TWF2-8GD	1683 MHz		mm	mm	mm
MSI GeForce GTX 1070 Ti ARMOR	1683 MHz	2	mm	mm	mm
