Asus ROG Matrix GTX 260
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 260 > Asus ROG Matrix GTX 260

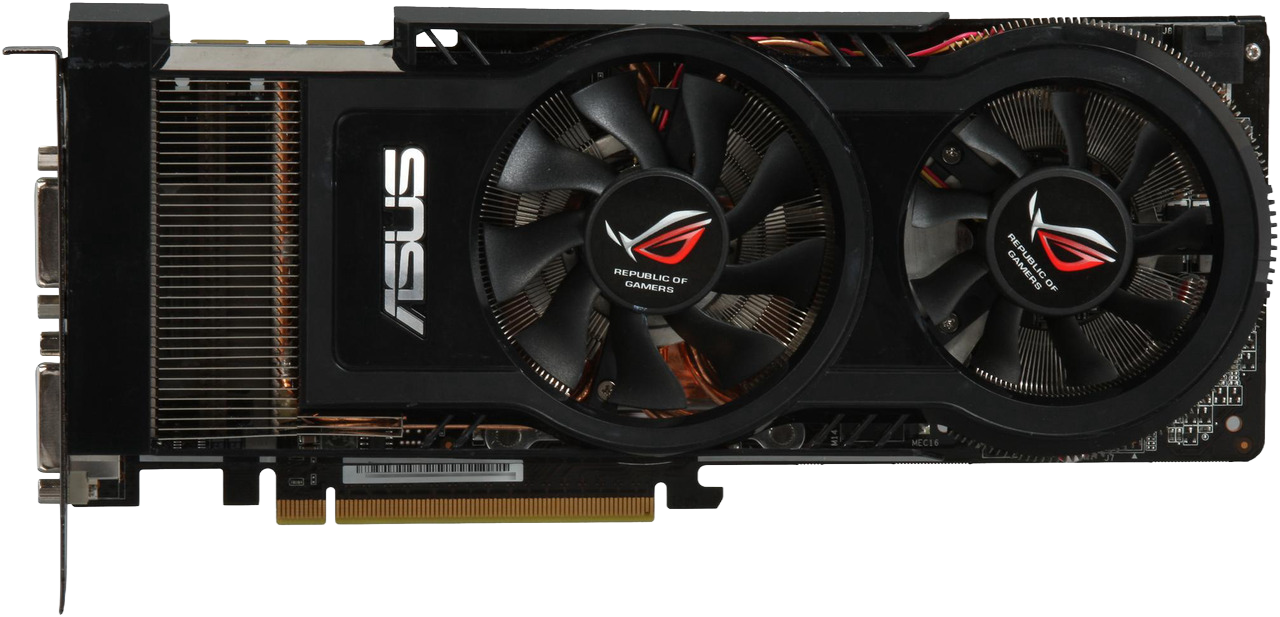

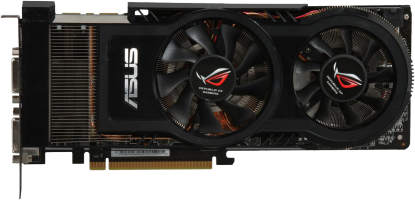

Asus ROG Matrix GTX 260 - Front
Asus ROG Matrix GTX 260 - Front
Asus ROG Matrix GTX 260
ENGTX260-MATRIX/HTDI/896MD3
Information
PlatformConsumer
ArchitectureTesla 2.0
GenerationGeForce 200
Previous GenGeForce 100
Next GenGeForce 300
InterfacePCIe 2.0 x16
Core
NameGT200
FoundryTSMC
Process Node65 nm
Transistors1400 million
Die Size576.0 mm²
Density2.4 /mm²
GPU Core Config
Cores192
TMUs64
ROPs28
SMs24
Memory
TechnologyGDDR3
Size0.875 GB
Bus448 bit
Bandwidth111.9 GB/s
Speed2.0 Gbps
Clocks
Base clock576 MHz
Shader Clock1242 MHz
Memory Clock999 MHz
Power
6-pin2
TDP171 w 180 w
Recommended PSU450 w 500 w

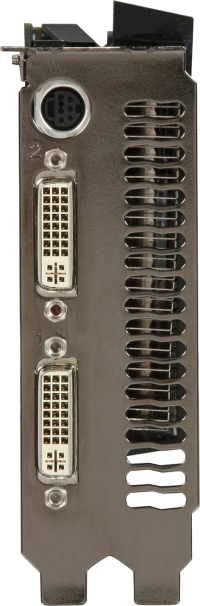

Display
DVI2
S-Video1
Dimensions
Slots2
Length267 mm
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 260 LIGHTNING
N260GTX LIGHTNING
 -100.0%
MSI GeForce GTX 260 Twin Frozr
N260GTX-T2D896-OC
 -100.0%

Asus ROG Matrix GTX 260
ENGTX260-MATRIX/HTDI/896MD3
1242 MHz2
