MSI GeForce GTX 480 LIGHTNING
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 480 > MSI GeForce GTX 480 LIGHTNING

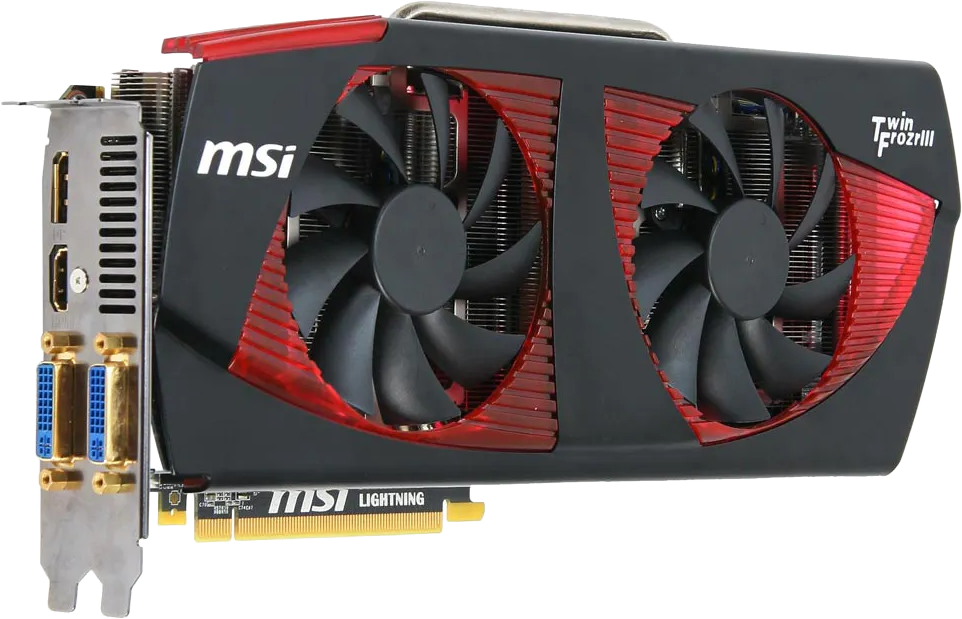

MSI GeForce GTX 480 LIGHTNING - Front

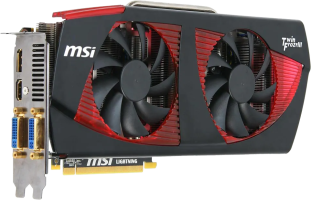

MSI GeForce GTX 480 LIGHTNING - Front
MSI GeForce GTX 480 LIGHTNING
N480GTX LIGHTNING
Information
PlatformConsumer
ArchitectureFermi
GenerationGeForce 400
Previous GenGeForce 300
Next GenGeForce 500
InterfacePCIe 2.0 x16
Core
NameGF100
FoundryTSMC
Process Node40 nm
Transistors3100 million
Die Size529.0 mm²
Density5.9 /mm²
GPU Core Config
Cores480
TMUs60
ROPs48
Memory
TechnologyGDDR5
Size1.5 GB
Bus384 bit
Bandwidth177.4 GB/s
Speed3.7 Gbps
Clocks
Base clock750 MHz 701 MHz
Shader Clock1401 MHz
Memory Clock1000 MHz 924 MHz
Power
6-pin1
8-pin2
TDP250 w
Recommended PSU600 w
Display
DisplayPort1
HDMI1
DVI2
Dimensions
Slots2.3 2
Length305 mm 267 mm
Height127 mm
Width45 mm
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 480 LIGHTNING
N480GTX LIGHTNING
 -100.0%2.3305 mm127 mm45 mm
