MSI GeForce GTX 560 Ti Twin Frozr II OC Edition
Specs, info and data
The GPU Database
Featuring 260+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 560 Ti > MSI GeForce GTX 560 Ti Twin Frozr II OC Edition

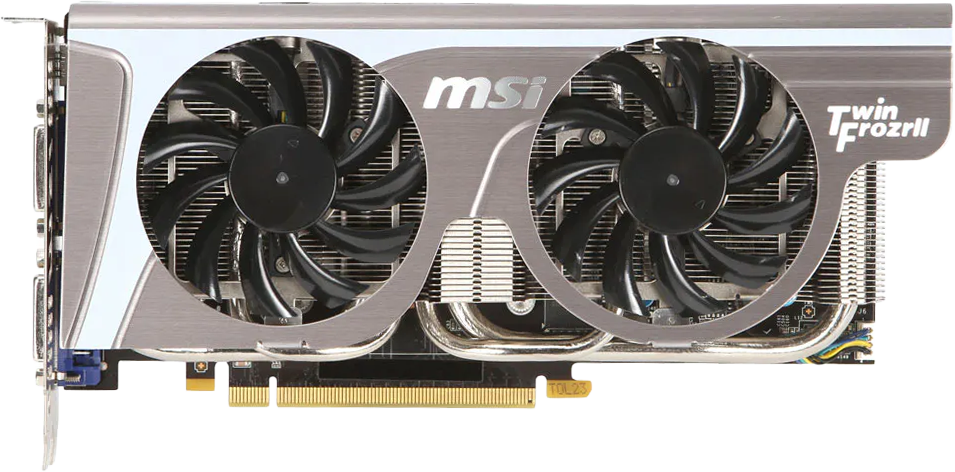

MSI GeForce GTX 560 Ti Twin Frozr II OC Edition - Front
MSI GeForce GTX 560 Ti Twin Frozr II OC Edition - Front MSI GeForce GTX 560 Ti Twin Frozr II OC Edition - Rear
MSI GeForce GTX 560 Ti Twin Frozr II OC Edition
N560GTX-TI TWIN FROZR II/OC
Information
PlatformConsumer
ArchitectureFermi 2.0
GenerationGeForce 500
Previous GenGeForce 400
Next GenGeForce 600
GPU Core Config
Cores352
TMUs44
ROPs40
Memory
TechnologyGDDR5
Size1 GB
Bus256 bit
Bandwidth121.6 GB/s
Speed3.8 Gbps
Clocks
Base clock880 MHz 732 MHz
Shader Clock1760 MHz 1464 MHz
Memory Clock1050 MHz 950 MHz
Power
6-pin2
TDP170 w
Recommended PSU500 w 450 w
Display
DisplayPort1
HDMI1
DVI2
DVI-D DL2
Mini HDMI1
Dimensions
Slots2
Length238 mm
Height111 mm
Width37 mm
Weight686 g
Bios files
70.24.21.00.00
N/A
Size: 62 KB
Build: 2011-03-15
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 560 Ti Twin Frozr II OC Edition
N560GTX-TI TWIN FROZR II/OC
1760 MHz +20.2%2238 mm111 mm37 mm
