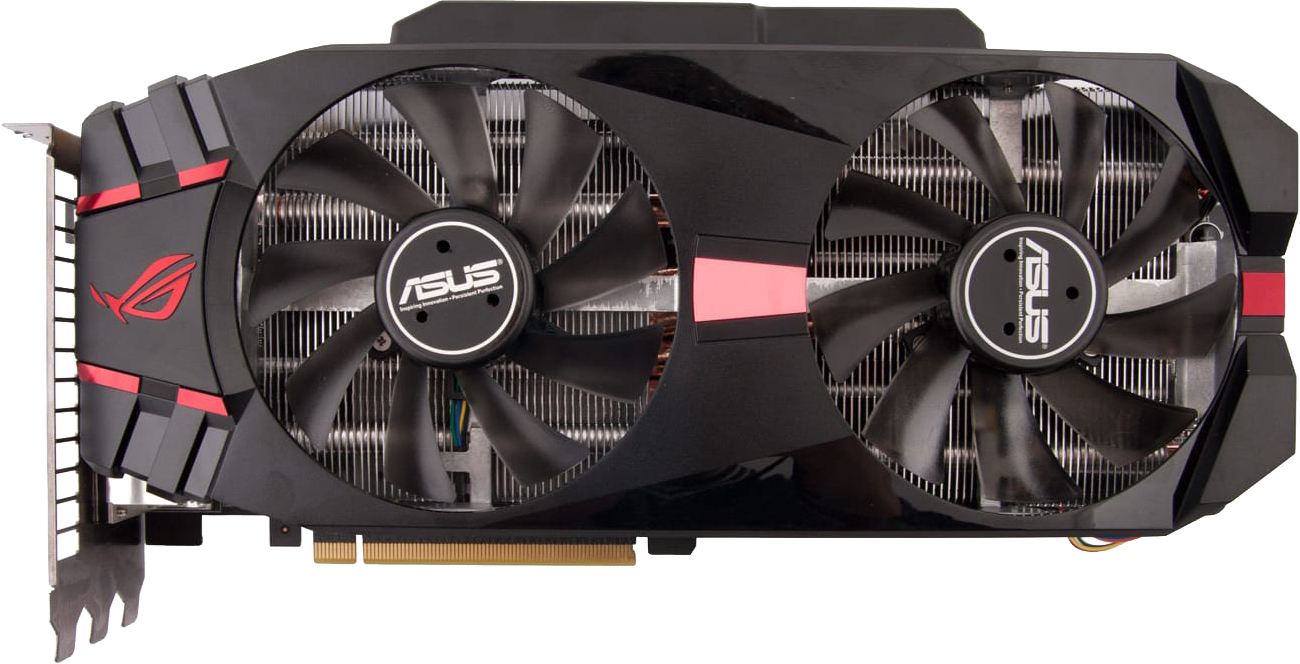

Asus ROG Matrix GTX 580 Database - Specs, information & files

Asus ROG Matrix GTX 580

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 580 > Asus ROG Matrix GTX 580

Asus ROG Matrix GTX 580

Information
PlatformConsumer
ArchitectureFermi 2.0
GenerationGeForce 500
Previous GenGeForce 400
Next GenGeForce 600
InterfacePCIe 2.0 x16
Core
NameGF110
GPU Core Config
Cores512
TMUs64
ROPs48
SMs16
Memory
TechnologyGDDR5
Size1.5 GB
Bus384 bit
Bandwidth192.384 GB/s
Speed4.008 Gbps

Information
Platform	Consumer
Architecture	Fermi 2.0
Generation	GeForce 500
Previous Gen	GeForce 400
Next Gen	GeForce 600
Interface	PCIe 2.0 x16

Core
Name	GF110

GPU Core Config
Cores	512
TMUs	64
ROPs	48
SMs	16

Memory
Technology	GDDR5
Size	1.5 GB
Bus	384 bit
Bandwidth	192.384 GB/s
Speed	4.008 Gbps

Clocks
Base clock772 MHz
Shader Clock1544 MHz
Boost Clock1564 MHz
Memory Clock1002 MHz
Power
TDP244 w
Recommended PSU600 w
Display
DisplayPort1
HDMI1
DVI2
Dimensions
Slots3 2

Clocks
Base clock	772 MHz
Shader Clock	1544 MHz
Boost Clock	1564 MHz
Memory Clock	1002 MHz

Power
TDP	244 w
Recommended PSU	600 w

Display
DisplayPort	1
HDMI	1
DVI	2

Dimensions
Slots	3 2

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Matrix GTX 580	1564 MHz	3	mm	mm	mm
