MSI Geforce GTX 580 LIGHTNING
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 580 > MSI Geforce GTX 580 LIGHTNING

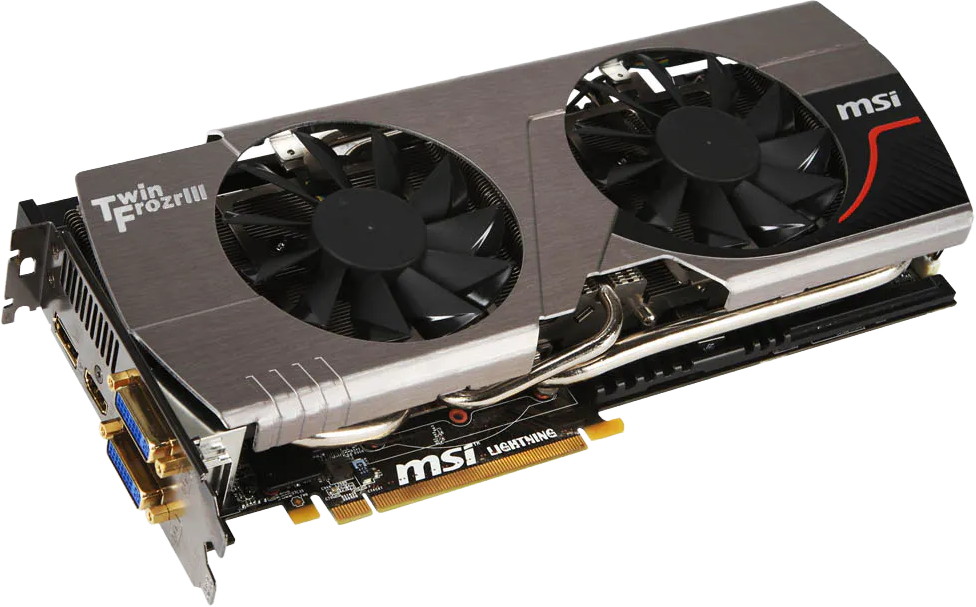

MSI Geforce GTX 580 LIGHTNING - Front

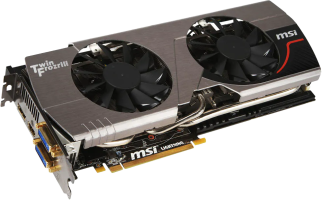

MSI Geforce GTX 580 LIGHTNING - Front
MSI Geforce GTX 580 LIGHTNING
N580GTX LIGHTNING
Information
PlatformConsumer
ArchitectureFermi 2.0
GenerationGeForce 500
Previous GenGeForce 400
Next GenGeForce 600
InterfacePCIe 2.0 x16
Core
NameGF110
FoundryTSMC
Process Node40 nm
Transistors3000 million
Die Size520.0 mm²
Density5.8 /mm²
GPU Core Config
Cores512
TMUs64
ROPs48
SMs16
Memory
TechnologyGDDR5
Size1.5 GB
Bus384 bit
Bandwidth192.4 GB/s
Speed4.0 Gbps
Clocks
Base clock832 MHz 772 MHz
Shader Clock1544 MHz
Memory Clock1050 MHz 1002 MHz
Power
8-pin2
TDP244 w
Recommended PSU600 w
Display
DisplayPort1
HDMI1
DVI2
Dimensions
Slots2.3 2
Length305 mm
Height127 mm
Width45 mm
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲
Asus ROG Matrix GTX 580 Platinum
1632 MHz +5.7%2.6289.5 mm152.4 mm
Asus ROG Mars GTX 580
MARS-II/2DIS/3GD5
1564 MHz +1.3%3319 mm128 mm58 mm
MSI Geforce GTX 580 LIGHTNING
N580GTX LIGHTNING
 -100.0%2.3305 mm127 mm45 mm
