MSI GeForce GTX 650 Ti Power Edition
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 650 Ti > MSI GeForce GTX 650 Ti Power Edition

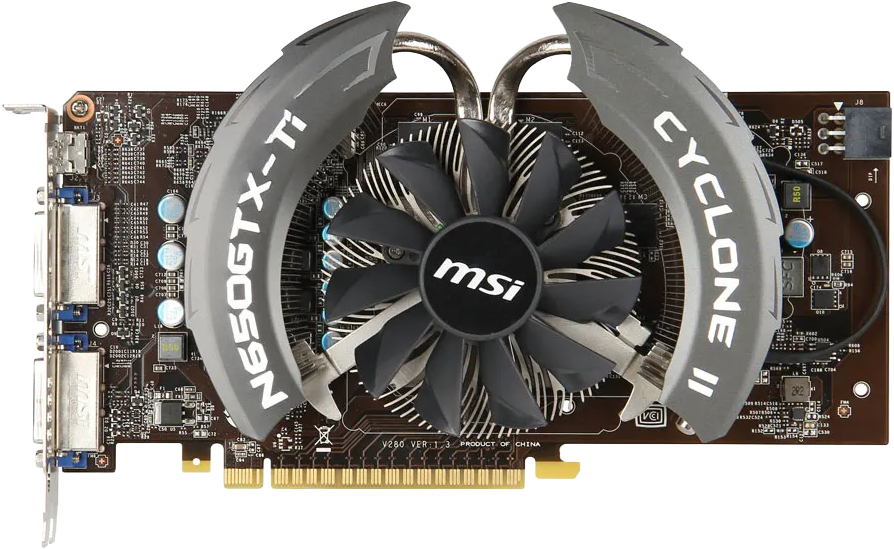

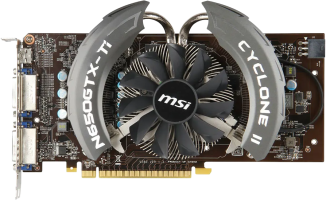

MSI GeForce GTX 650 Ti Power Edition - Front

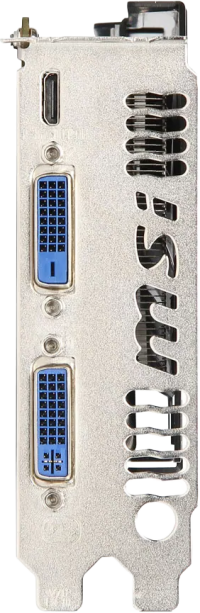

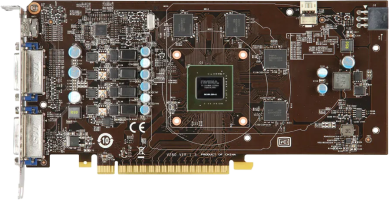

MSI GeForce GTX 650 Ti Power Edition - Front MSI GeForce GTX 650 Ti Power Edition - PCB Front MSI GeForce GTX 650 Ti Power Edition - Side MSI GeForce GTX 650 Ti Power Edition - Outputs
MSI GeForce GTX 650 Ti Power Edition
N650TI-PE-1GD5
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next GenGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK106S
FoundryTSMC
Process Node28 nm
Transistors2540 million
Die Size221.0 mm²
Density11.5 /mm²
GPU Core Config
Cores768
TMUs64
ROPs16
Memory
TechnologyGDDR5
Size1 GB
Bus128 bit
Bandwidth86.4 GB/s
Speed5.4 Gbps
Clocks
Base clock993 MHz 928 MHz
Memory Clock1350 MHz
Power
6-pin1
TDP110 w
Recommended PSU300 w
Display
DVI-D DL1
DVI-I1
Mini HDMI1
Dimensions
Slots1.8 1
Length230 mm
Height131 mm
Width35 mm
Weight435 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 650 Ti Power Edition
N650TI-PE-1GD5
1.8230 mm131 mm35 mm
