MSI GeForce GTX 660 Twin Frozr OC
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 660 > MSI GeForce GTX 660 Twin Frozr OC

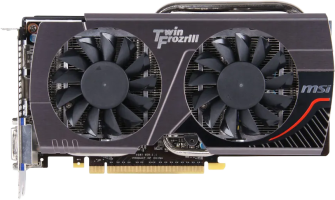

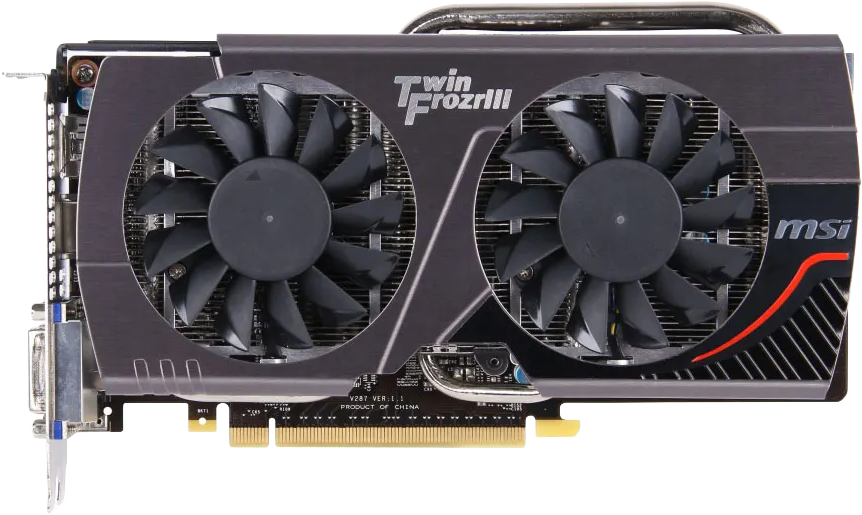

MSI GeForce GTX 660 Twin Frozr OC - Front

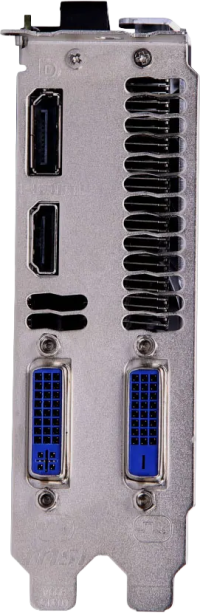

MSI GeForce GTX 660 Twin Frozr OC - Front MSI GeForce GTX 660 Twin Frozr OC - Side MSI GeForce GTX 660 Twin Frozr OC - Side MSI GeForce GTX 660 Twin Frozr OC - Outputs
MSI GeForce GTX 660 Twin Frozr OC
N660 TF 2GD5/OC
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next GenGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK106
GPU Core Config
Cores960
TMUs80
ROPs24
Memory
TechnologyGDDR5
Size2 GB
Infinity Cache192 MB
Bandwidth192.3 GB/s
Speed6.0 Gbps
Clocks
Base clock1033 MHz 980 MHz
Boost Clock1098 MHz 1032 MHz
Memory Clock1502 MHz
Power
6-pin1
TDP140 w
Recommended PSU300 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots1.8 2
Length235 mm 241 mm
Height125.2 mm
Width35.8 mm
Weight615 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 660 Twin Frozr OC
N660 TF 2GD5/OC
1098 MHz +6.4%1.8235 mm125.2 mm35.8 mm
