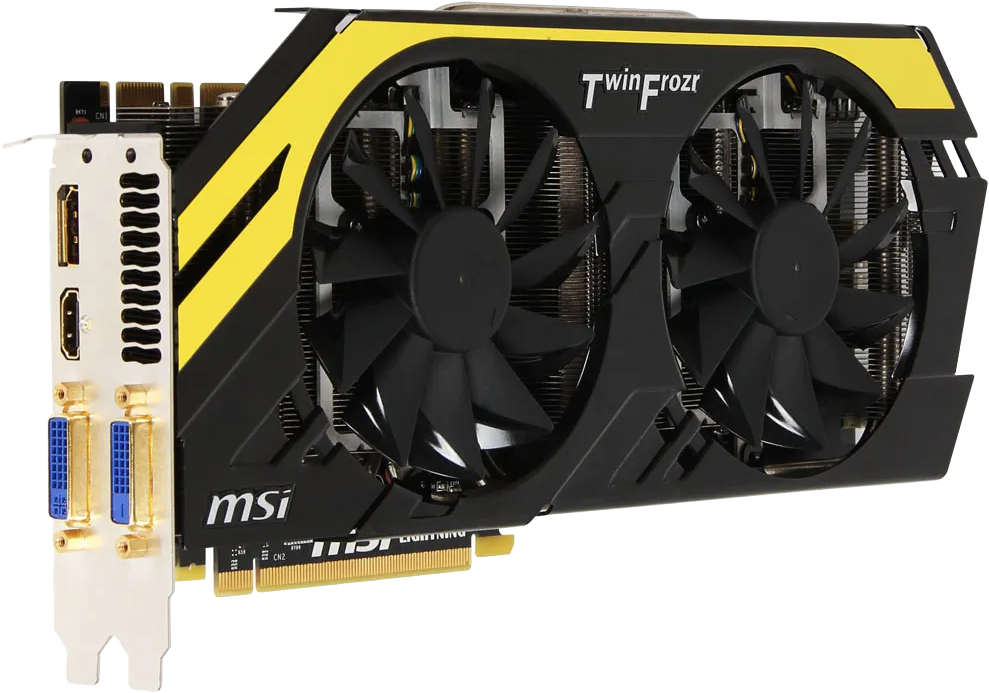

MSI GeForce GTX 680 LIGHTNING

Specs, info and data

The GPU Database

Featuring 270+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 680 > MSI GeForce GTX 680 LIGHTNING

MSI GeForce GTX 680 LIGHTNING
N680GTX LIGHTNING
GPUs.net

Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next GenGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536
TMUs128
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth192.3 GB/s
Speed6.0 Gbps

Clocks
Base clock1110 MHz 1006 MHz
Boost Clock1176 MHz 1058 MHz
Memory Clock1502 MHz
Power
8-pin2
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots2.5 2
Length280 mm 256 mm
Height129 mm 111 mm
Width49.2 mm 38 mm
Weight1065 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
MSI GeForce GTX 680 LIGHTNING N680GTX LIGHTNING	1176 MHz +11.2%	2.5	280 mm	129 mm	49.2 mm
