MSI GeForce GTX 760 Gaming OC
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 760 > MSI GeForce GTX 760 Gaming OC

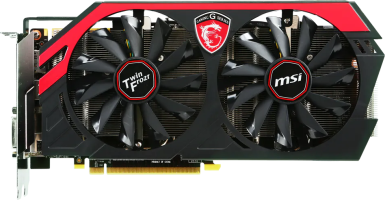

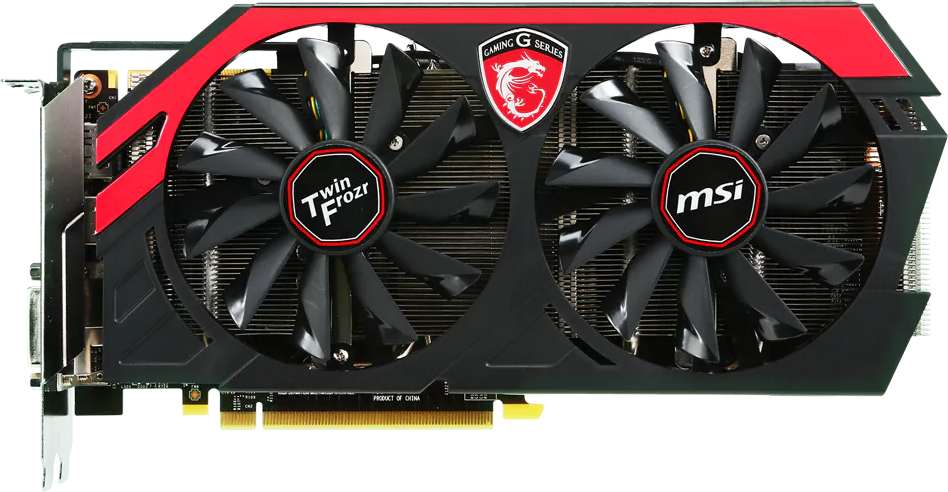

MSI GeForce GTX 760 Gaming OC - Front

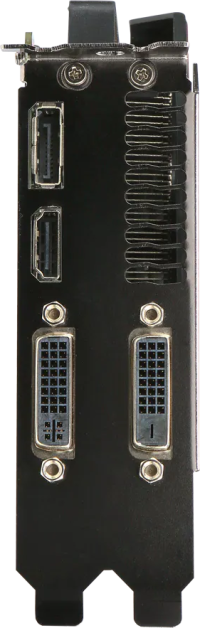

MSI GeForce GTX 760 Gaming OC - Front MSI GeForce GTX 760 Gaming OC - Side MSI GeForce GTX 760 Gaming OC - Side MSI GeForce GTX 760 Gaming OC - Outputs
MSI GeForce GTX 760 Gaming OC
N760 TF 2GD5/OC
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1152
TMUs96
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth192.3 GB/s
Speed6.0 Gbps
Clocks
Base clock1085 MHz 980 MHz
Boost Clock1150 MHz 1033 MHz
Memory Clock1502 MHz
Power
6-pin1
8-pin1
TDP170 w
Recommended PSU500 w 450 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots2
Length260 mm
Height126 mm
Width38 mm
Weight580 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲

Gainward GeForce GTX 760
NE5X76001042-1042F
1033 MHz
Asus ROG Mars GTX 760
MARS760-4GD5
1072 MHz +3.8%2280 mm118 mm40 mm
MSI GeForce GTX 760 Gaming OC
N760 TF 2GD5/OC
1150 MHz +11.3%2260 mm126 mm38 mm
