MSI GeForce GTX 780 LIGHTNING
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 780 > MSI GeForce GTX 780 LIGHTNING

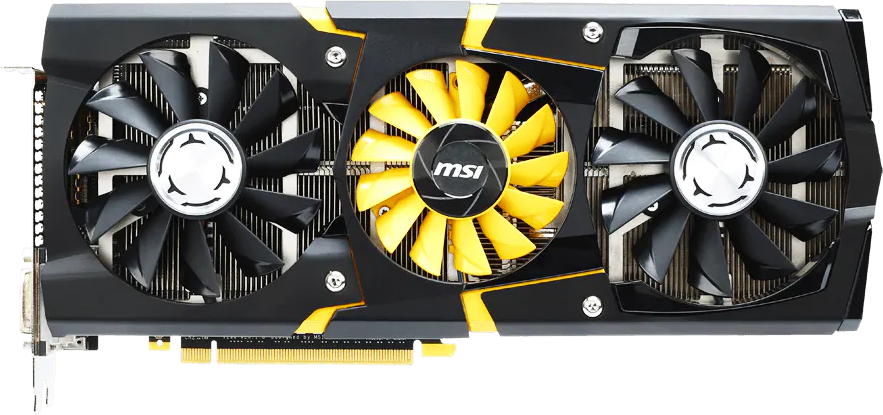

MSI GeForce GTX 780 LIGHTNING - Front

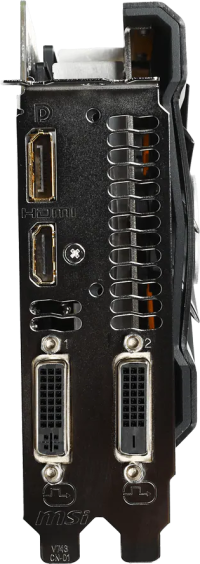

MSI GeForce GTX 780 LIGHTNING - Front MSI GeForce GTX 780 LIGHTNING - Rear MSI GeForce GTX 780 LIGHTNING - Side
MSI GeForce GTX 780 LIGHTNING
N780 LIGHTNING
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK110
FoundryTSMC
Process Node28 nm
Transistors7080 million
Die Size561.0 mm²
Density12.6 /mm²
GPU Core Config
Cores2304
TMUs192
ROPs48
Memory
TechnologyGDDR5
Size3 GB
Bus384 bit
Clocks
Base clock980 MHz 863 MHz
Boost Clock1033 MHz 902 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots2.6 2
Length295 mm
Height128.6 mm
Width51.4 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲

Asus ROG Poseidon GTX 780
ROG-POSEIDON-GTX780-3GD5
902 MHz2287 mm
EVGA GTX 780 CLASSIFIED
03G-P4-3788-KR
1046 MHz +16.0%2281 mm138 mm37 mm
MSI GeForce GTX 780 LIGHTNING
N780 LIGHTNING
1033 MHz +14.5%2.6295 mm128.6 mm51.4 mm
MSI GeForce GTX 780 GAMING OC
N780-TF-3GD5OC
1006 MHz +11.5%1.9266 mm129 mm38 mm
