MSI GeForce GTX 960 Armor 2X OC

Specs, info and data

The GPU Database

Featuring 270+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 960 > MSI GeForce GTX 960 Armor 2X OC

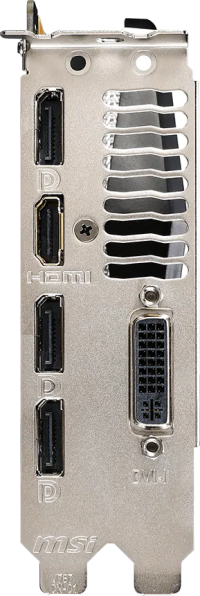

MSI GeForce GTX 960 Armor 2X OC - Outputs

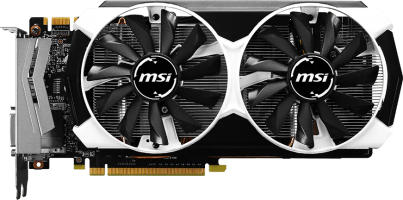

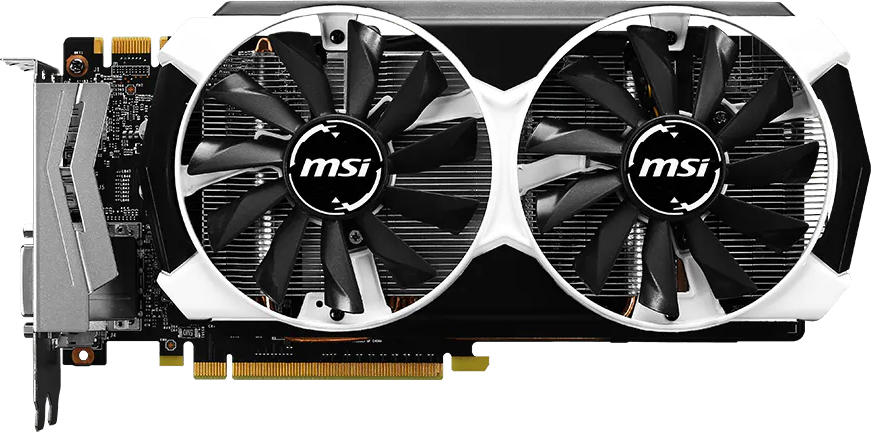

MSI GeForce GTX 960 Armor 2X OC
GTX 960 2GD5T OC
GPUs.net

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM206
FoundryTSMC
Process Node28 nm
Transistors2940 million
Die Size228.0 mm²
Density12.9 /mm²
GPU Core Config
Cores1024
TMUs64
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus128 bit
Bandwidth112.2 GB/s
Speed7.0 Gbps

Clocks
Base clock1178 MHz 1127 MHz
Boost Clock1241 MHz 1178 MHz
Memory Clock1753 MHz
Power
6-pin1
TDP120 w
Recommended PSU400 w 300 w
Display
DisplayPort3 1.2
HDMI1 1.4a
DVI-I1
Dimensions
Slots1.9 2
Length273 mm
Height130 mm
Width37 mm
Weight593 g

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus STRIX GTX 960 DirectCU II OC STRIX-GTX960-DC2OC-2GD5	1291 MHz +9.6%	2	217 mm	121 mm	40 mm
MSI GeForce GTX 960 Gaming 100ME GTX-960-GAMING-100ME	1304 MHz +10.7%	2.4	267 mm	139 mm	48 mm
MSI GeForce GTX 960 Gaming GTX-960-GAMING-4G	1304 MHz +10.7%	2	267 mm	139 mm	40 mm
MSI GeForce GTX 960 Armor 2X OC GTX 960 2GD5T OC	1241 MHz +5.3%	1.9	273 mm	130 mm	37 mm

Disclaimer! Hashrate.no utilizes some affiliate and referral links which may generate a small commission. Thanks for supporting us! We also use cookies to track users' input, like, but not limited to power cost, sorting, filters, and prices. We make no warranties of any kind in relation to our content, including but not limited to accuracy and updatedness. Hashrate.no are NOT responsible for any damage; always set your overclock at YOUR own risk and please gain knowledge and do your research! We are not responsible for external links and information that is found there. © Lineo AS 2021-2026

Information
Platform	Consumer
Architecture	Maxwell 2.0
Generation	GeForce 900
Previous Gen	GeForce 700
Next Gen	GeForce 10
Interface	PCIe 3.0 x16

Core
Name	GM206
Foundry	TSMC
Process Node	28 nm
Transistors	2940 million
Die Size	228.0 mm²
Density	12.9 /mm²

Memory
Technology	GDDR5
Size	2 GB
Bus	128 bit
Bandwidth	112.2 GB/s
Speed	7.0 Gbps

Clocks
Base clock	1178 MHz 1127 MHz
Boost Clock	1241 MHz 1178 MHz
Memory Clock	1753 MHz

GPU Core Config
Cores	1024
TMUs	64
ROPs	32

Power
6-pin	1
TDP	120 w
Recommended PSU	400 w 300 w

Display
DisplayPort	3 1.2
HDMI	1 1.4a
DVI-I	1

Dimensions
Slots	1.9 2
Length	273 mm
Height	130 mm
Width	37 mm
Weight	593 g
