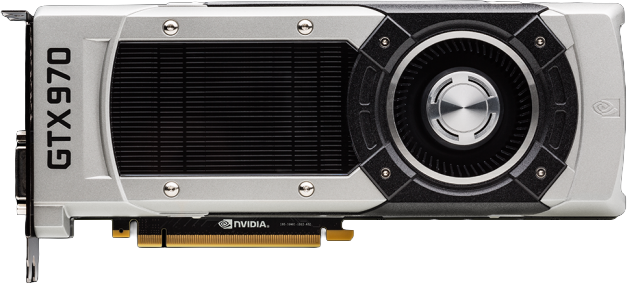

NVIDIA GTX 970

The GTX 970 is a consumer-grade GPU from nvidia's GeForce 900 series, built on the  architecture using the GM204 chip. Equipped with 4 GB of GDDR5 memory on a 256-bit bus, it delivers 224.4 GB/s of bandwidth at 7.0 Gbps.

Launched on 18 Nov, 2014, the GTX 970 carried a starting price of $329.

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398 mm²
Density13.1 /mm²
GPU Core Config
Cores1664
TMUs104
ROPs56
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.384 GB/s
Speed7.012 Gbps

Information
Platform	Consumer
Architecture	Maxwell 2.0
Generation	GeForce 900
Previous Gen	GeForce 700
Next Gen	GeForce 10
Interface	PCIe 3.0 x16

Core
Name	GM204
Foundry	TSMC
Process Node	28 nm
Transistors	5200 million
Die Size	398 mm²
Density	13.1 /mm²

GPU Core Config
Cores	1664
TMUs	104
ROPs	56

Memory
Technology	GDDR5
Size	4 GB
Bus	256 bit
Bandwidth	224.384 GB/s
Speed	7.012 Gbps

Clocks
Base clock1050 MHz
Boost Clock1178 MHz
Memory Clock1753 MHz
Power
6-pin2
TDP148 w
Recommended PSU300 w
Display
DisplayPort3
HDMI1
DVI1
Dimensions
Slots2

Clocks
Base clock	1050 MHz
Boost Clock	1178 MHz
Memory Clock	1753 MHz

Power
6-pin	2
TDP	148 w
Recommended PSU	300 w

Display
DisplayPort	3
HDMI	1
DVI	1

Dimensions
Slots	2

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
