Name: MSI GeForce GTX 970 Gaming
Brand: MSI

MSI GeForce GTX 970 Gaming

Specs, info and data

The GPU Database

Featuring 270+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 970 > MSI GeForce GTX 970 Gaming

MSI GeForce GTX 970 Gaming
GPUs.net

Information
PlatformConsumer
ArchitectureMaxwell 2.0
GenerationGeForce 900
Previous GenGeForce 700
Next GenGeForce 10
InterfacePCIe 3.0 x16
Core
NameGM204
FoundryTSMC
Process Node28 nm
Transistors5200 million
Die Size398.0 mm²
Density13.1 /mm²
GPU Core Config
Cores1664
TMUs104
ROPs56
Memory
TechnologyGDDR5
Size4 GB
Bus256 bit
Bandwidth224.4 GB/s
Speed7.0 Gbps

Clocks
Base clock1140 MHz 1050 MHz
Boost Clock1279 MHz 1178 MHz
Memory Clock1753 MHz
Power
6-pin1
8-pin1
TDP145 w 148 w
Recommended PSU500 w 300 w

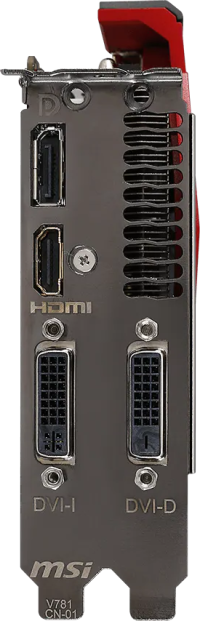

Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots2
Length277 mm
Height140 mm
Width35 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA GTX 970 Reference Design 900-1G401-0010-000	1178 MHz	2	267 mm	111 mm	40 mm
MSI GeForce GTX 970 Gaming Golden Edition	1317 MHz +11.8%	2.2	267 mm	137 mm	43 mm
MSI GeForce GTX 970 Gaming 100ME	1279 MHz +8.6%	2.3	277 mm	140 mm	45 mm
MSI GeForce GTX 970 Gaming	1279 MHz +8.6%	2	277 mm	140 mm	35 mm
MSI GeForce GTX 970 Gaming LE	1216 MHz +3.2%	2	277 mm	140 mm	35 mm
