Asus GeForce RTX 5060 LP BRK OC Edition

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 5060 > Asus GeForce RTX 5060 LP BRK OC Edition

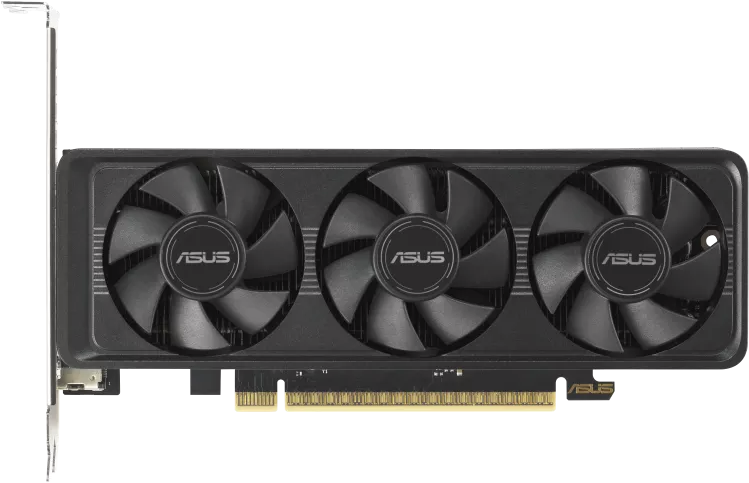

Asus GeForce RTX 5060 LP BRK OC Edition
RTX5060-O8G-LP-BRK
AI Performance: 627 AI TOPS
OC mode: 2580 MHz (OC mode)/ 2550 MHz (Default mode)
Powered by the NVIDIA Blackwell architecture and DLSS 4
Low-profile Design leaves space for cables and airflow in small chassis
IP5X dust resistance offers protection from particle ingress for better durability
Dual ball fan bearings can last up to twice as long as sleeve bearing designs
Auto-Extreme technology uses automation to enhance reliability
GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB206
InterfacePCIe 5.0 x8
Core
NameGB206
FoundryTSMC
Process Node5 nm
Transistors21900 million
Die Size181 mm²
Density121.0 /mm²
GPU Core Config
Cores3840
TMUs120
ROPs48
SMs30
RT Cores30
Memory
TechnologyGDDR7
Size8 GB
Bus128 bit
Bandwidth448 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB206
Interface	PCIe 5.0 x8

Core
Name	GB206
Foundry	TSMC
Process Node	5 nm
Transistors	21900 million
Die Size	181 mm²
Density	121.0 /mm²

GPU Core Config
Cores	3840
TMUs	120
ROPs	48
SMs	30
RT Cores	30

Memory
Technology	GDDR7
Size	8 GB
Bus	128 bit
Bandwidth	448 GB/s
Speed	28 Gbps

Clocks
Base clock2280 MHz
Boost Clock2550 MHz 2497 MHz
Memory Clock1750 MHz
Power
8-pin1
TDP145 w
Recommended PSU550 w
Display
DisplayPort1 2.1b
HDMI2 2.1b
HDCP2.3
Dimensions
Slots2
Length175.8 mm
Height69 mm
Width38 mm

Clocks
Base clock	2280 MHz
Boost Clock	2550 MHz 2497 MHz
Memory Clock	1750 MHz

Power
8-pin	1
TDP	145 w
Recommended PSU	550 w

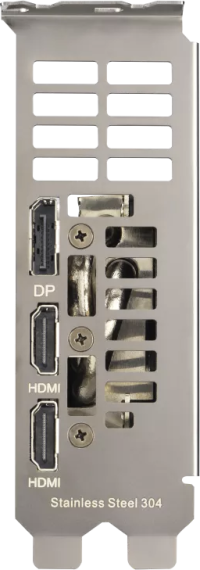

Display
DisplayPort	1 2.1b
HDMI	2 2.1b
HDCP	2.3

Dimensions
Slots	2
Length	175.8 mm
Height	69 mm
Width	38 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Zotac GeForce RTX 5060 AMP ZT-B50600F-10M	2550 MHz +2.1%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Twin Edge OC White Edition ZT-B50600Q-10M	2527 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Twin Edge OC ZT-B50600H-10M	2527 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Twin Edge ZT-B50600E-10M	2497 MHz	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Low Profile ZT-B50600L-10L	2497 MHz	2	182.5 mm	69 mm	38.2 mm
Zotac GeForce RTX 5060 SOLO ZT-B50600G-10L	2497 MHz	2	164.5 mm	111.2 mm	36.4 mm
Gigabyte AORUS GeForce RTX 5060 ELITE GV-N5060AORUS E-8GD	2722 MHz +9.0%	2	329 mm	128 mm	40 mm
Gigabyte GeForce RTX 5060 GAMING OC GV-N5060GAMING OC-8GD	2595 MHz +3.9%	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 GAMING GV-N5060GAMING-8GD	2497 MHz	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 EAGLE OC ICE GV-N5060EAGLEOC ICE-8GD	2550 MHz +2.1%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 EAGLE MAX OC GV-N5060EAGLEMAX OC-8GD	2550 MHz +2.1%	2	281 mm	115 mm	40 mm
Gigabyte GeForce RTX 5060 EAGLE OC GV-N5060EAGLE OC-8GD	2550 MHz +2.1%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 AERO OC GV-N5060AERO OC-8GD	2595 MHz +3.9%	2	281 mm	117 mm	40 mm
Gigabyte GeForce RTX 5060 WINDFORCE MAX OC GV-N5060WF2MAX OC-8GD	2512 MHz +0.6%	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5060 WINDFORCE MAX GV-N5060WF2MAX-8GD	2497 MHz	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5060 WINDFORCE OC GV-N5060WF2OC-8GD	2512 MHz +0.6%	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5060 WINDFORCE GV-N5060WF2-8GD	2497 MHz	2	199 mm	116 mm	40 mm
Gigabyte GeForce RTX 5060 OC Low Profile GV-N5060OC-8GL	2512 MHz +0.6%	2	182 mm	69 mm	36 mm
Gigabyte GeForce RTX 5060 D7 Low Profile GV-N5060D7-8GL	2497 MHz	2	182 mm	69 mm	36 mm
Asus Dual GeForce RTX 5060 White Edition DUAL-RTX5060-8G-WHITE	2497 MHz	2.5	228 mm	123 mm	50 mm
Asus Dual GeForce RTX 5060 EVO OC Edition DUAL-RTX5060-O8G-EVO	2535 MHz +1.5%	2.1	225 mm	120 mm	42 mm
Asus Dual GeForce RTX 5060 EVO DUAL-RTX5060-8G-EVO	2497 MHz	2.1	225 mm	120 mm	42 mm
Asus Dual GeForce RTX 5060 White OC Edition DUAL-RTX5060-O8G-WHITE	2535 MHz +1.5%	2.5	228 mm	123 mm	50 mm
Asus GeForce RTX 5060 LP BRK RTX5060-8G-LP-BRK	2497 MHz	2	175.8 mm	69 mm	38 mm
Asus GeForce RTX 5060 LP BRK OC Edition RTX5060-O8G-LP-BRK	2550 MHz +2.1%	2	175.8 mm	69 mm	38 mm
Asus Dual GeForce RTX 5060 DUAL-RTX5060-8G	2497 MHz	2.5	228 mm	123 mm	50 mm
Asus PRIME GeForce RTX 5060 PRIME-RTX5060-8G	2497 MHz	2.5	268.3 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5060 OC Edition PRIME-RTX5060-O8G	2565 MHz +2.7%	2.5	268.3 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 OC Edition DUAL-RTX5060-O8G	2535 MHz +1.5%	2.5	228 mm	123 mm	50 mm
Asus TUF Gaming GeForce RTX 5060 TUF-RTX5060-8G-GAMING	2497 MHz	3.1	302 mm	133.5 mm	62 mm
Asus TUF Gaming GeForce RTX 5060 OC Edition TUF-RTX5060-O8G-GAMING	2640 MHz +5.7%	3.1	302 mm	133.5 mm	62 mm
MSI GeForce RTX 5060 CYCLONE G5060-8C	2497 MHz	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 CYCLONE OC G5060-8CC	2527 MHz +1.2%	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 INSPIRE ITX G5060-8II	2497 MHz	2.3	145 mm	120 mm	45 mm
MSI GeForce RTX 5060 INSPIRE ITX OC G5060-8IIC	2527 MHz +1.2%	2.3	145 mm	12 mm	45 mm
MSI GeForce RTX 5060 GAMING G5060-8G	2497 MHz	2.1	248 mm	135 mm	41 mm
MSI GeForce RTX 5060 GAMING OC G5060-8GC	2625 MHz +5.1%	2.1	248 mm	135 mm	4.1 mm
MSI GeForce RTX 5060 VENTUS 2X G5060-8V2	2497 MHz	2.1	197 mm	120 mm	41 mm
MSI GeForce RTX 5060 VENTUS 2X OC G5060-8V2C	2527 MHz +1.2%	2.1	197 mm	120 mm	41 mm
MSI GeForce RTX 5060 SHADOW 2X G5060-8S2	2497 MHz	2	197 mm	120 mm	40 mm
MSI GeForce RTX 5060 SHADOW 2X OC G5060-8S2C	2527 MHz +1.2%	2	197 mm	120 mm	40 mm
MSI GeForce RTX 5060 GAMING TRIO G5060-8GT	2497 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 GAMING TRIO OC G5060-8GTC	2625 MHz +5.1%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 GAMING TRIO WHITE G5060-8GTW	2497 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 GAMING TRIO OC WHITE G5060-8GTCW	2625 MHz +5.1%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 VENTUS 3X G5060-8V3	2497 MHz	2.1	303 mm	121 mm	41 mm
MSI GeForce RTX 5060 VENTUS 3X OC G5060-8V3C	2535 MHz +1.5%	2.1	303 mm	121 mm	41 mm
MSI GeForce RTX 5060 INSPIRE 2X G5060-8I2	2497 MHz	2.1	204 mm	117 mm	41 mm
MSI GeForce RTX 5060 INSPIRE 2X OC G5060-8I2C	2535 MHz +1.5%	2.1	204 mm	117 mm	41 mm
MSI GeForce RTX 5060 VENTUS 2X WHITE G5060-8V2W	2497 MHz	2.1	197 mm	120 mm	41 mm
MSI GeForce RTX 5060 VENTUS 2X OC WHITE G5060-8V2CW	2527 MHz +1.2%	2.1	197 mm	120 mm	41 mm
Palit GeForce RTX 5060 White OC NE75060U19P1-GB2063M	2527 MHz +1.2%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Dual NE75060019P1-GB2063D	2497 MHz	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Dual OC NE75060S19P1-GB2063D	2535 MHz +1.5%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Infinity 2 OC NE75060V19P1-GB2063L	2512 MHz +0.6%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Infinity 3 NE75060019P1-GB2063S	2497 MHz	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5060 Infinity 3 OC NE75060T19P1-GB2063S	2580 MHz +3.3%	2.1	291.9 mm	116.6 mm	41.3 mm
