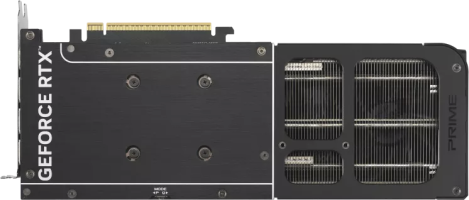

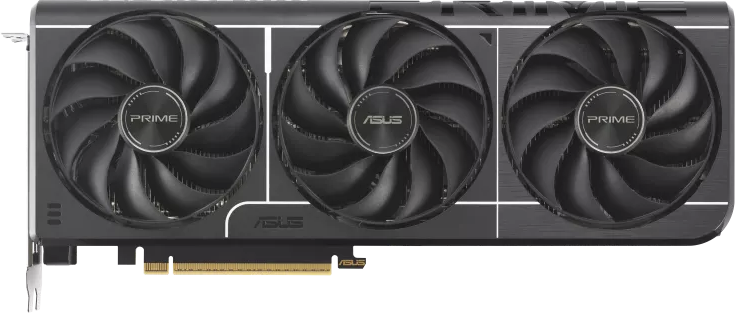

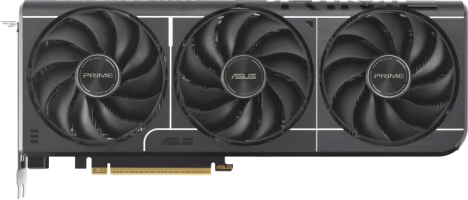

Asus PRIME GeForce RTX 5060 Ti
PRIME/PRIME-RTX5060TI-8G
Experience Primal performance with the Prime GeForce RTX 5060 Ti, featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x8
Max temperature87 C
Core
NameGB206
FoundryTSMC
Process Node5 nm
Transistors21900 million
Die Size181 mm²
Density121.0 /mm²
GPU Core Config
Cores4608
TMUs144
ROPs48
SMs36
Memory
TechnologyGDDR7
Size8 GB
Bus128 bit
Bandwidth448 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x8
Max temperature	87 C

Core
Name	GB206
Foundry	TSMC
Process Node	5 nm
Transistors	21900 million
Die Size	181 mm²
Density	121.0 /mm²

GPU Core Config
Cores	4608
TMUs	144
ROPs	48
SMs	36

Memory
Technology	GDDR7
Size	8 GB
Bus	128 bit
Bandwidth	448 GB/s
Speed	28 Gbps

Clocks
Base clock2407 MHz
Boost Clock2752 MHz 2572 MHz
Memory Clock1750 MHz
Power
8-pin1
16-pin1
TDP180 w
Recommended PSU550 w 600 w

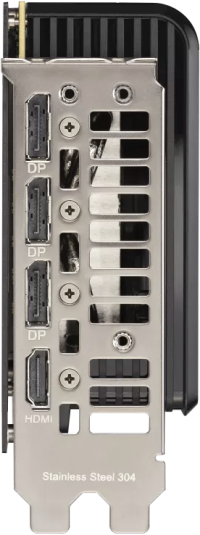

Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Resolution7680 x 4320
Dimensions
Slots2.5 2
Length304 mm
Height120 mm
Width50 mm

Clocks
Base clock	2407 MHz
Boost Clock	2752 MHz 2572 MHz
Memory Clock	1750 MHz

Power
8-pin	1
16-pin	1
TDP	180 w
Recommended PSU	550 w 600 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3
Resolution	7680 x 4320

Dimensions
Slots	2.5 2
Length	304 mm
Height	120 mm
Width	50 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Zotac GeForce RTX 5060 Ti Twin Edge OC White Edition ZT-B50610Q-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge ZT-B50610E-10M	2572 MHz	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti Twin Edge OC ZT-B50610H-10M	2602 MHz +1.2%	2.1	220.5 mm	120.25 mm	41.6 mm
Zotac GeForce RTX 5060 Ti AMP ZT-B50610F-10M	2632 MHz +2.3%	2.1	220.5 mm	120.25 mm	41.6 mm
Asus Dual GeForce RTX 5060 Ti White Edition DUAL-RTX5060TI-8G-WHITE	2572 MHz	2.5	229 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti White OC Edition DUAL-RTX5060TI-O8G-WHITE	2602 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5060 Ti PRIME/PRIME-RTX5060TI-8G	2752 MHz +7.0%	2.5	304 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti DUAL-RTX5060TI-8G	2572 MHz	2.5	229 mm	120 mm	50 mm
Asus Dual GeForce RTX 5060 Ti OC Edition DUAL-RTX5060TI-O8G	2602 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus TUF Gaming GeForce RTX 5060 Ti TUF-RTX5060TI-8G-GAMING	2572 MHz	3.1	302 mm	133.5 mm	62 mm
Asus TUF Gaming GeForce RTX 5060 Ti OC Edition TUF-RTX5060TI-O8G-GAMING	2662 MHz +3.5%	3.1	302 mm	133.5 mm	62 mm
Asus PRIME GeForce RTX 5060 Ti OC Edition PRIME-RTX5060TI-O8	2617 MHz +1.7%	2.5	304 mm	120 mm	50 mm
Gigabyte GeForce RTX 5060 Ti GAMING OC GV-N506TGAMING OC-8GD	2647 MHz +2.9%	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 Ti GAMING GV-N506TGAMING-8GD	2572 MHz	2	281 mm	119 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE GV-N506TEAGLEOC ICE-8GD	2617 MHz +1.7%	2	215 mm	122 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC GV-N506TEAGLEMAX OC-8GD	2617 MHz +1.7%	2	281 mm	115 mm	40 mm
Gigabyte GeForce RTX 5060 Ti EAGLE OC GV-N506TEAGLE OC-8GD	2617 MHz +1.7%	2	215 mm	122 mm	40 mm
Gigabyte GeForce RTX 5060 Ti AERO OC GV-N506TAERO OC-8GD	2647 MHz +2.9%	2	281 mm	117 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC GV-N506TWF2MAX OC-8GD	2587 MHz +0.6%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX GV-N506TWF2MAX-8GD	2572 MHz	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE OC GV-N506TWF2OC-8GD	2587 MHz +0.6%	2	208 mm	120 mm	40 mm
Gigabyte GeForce RTX 5060 Ti WINDFORCE GV-N506TWF2-8GD	2572 MHz	2	208 mm	120 mm	40 mm
MSI GeForce RTX 5060 Ti CYCLONE G506T-8C	2572 MHz	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 Ti CYCLONE OC G506T-8CC	2602 MHz +1.2%	2.1	161 mm	125 mm	42 mm
MSI GeForce RTX 5060 Ti VENTUS 2X WHITE PLUS G506T8V2WP	2572 MHz	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VENTUS 2X OC WHITE PLUS G506T8V2CWP	2602 MHz +1.2%	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti SHADOW 2X PLUS G506T-8S2P	2572 MHz	2.1	226 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti SHADOW 2X OC PLUS G506T-8S2CP	2602 MHz +1.2%	2.1	226 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti GAMING DUKE 3X G506T-8D3	2572 MHz	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5060 Ti GAMING DUKE 3X OC G506T-8D3C	2617 MHz +1.7%	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5060 Ti GAMING TRIO G506T-8GT	2572 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO OC G506T-8GTC	2647 MHz +2.9%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO WHITE G506T-8GTW	2572 MHz	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING TRIO OC WHITE G506T-8GTCW	2647 MHz +2.9%	2.2	300 mm	125 mm	44 mm
MSI GeForce RTX 5060 Ti GAMING G506T-8G	2572 MHz	2.6	247 mm	135 mm	51 mm
MSI GeForce RTX 5060 Ti GAMING OC G506T-8GC	2647 MHz +2.9%	2.6	247 mm	135 mm	51 mm
MSI GeForce RTX 5060 Ti INSPIRE 2X G506T-8I2	2572 MHz	2.5	204 mm	117 mm	50 mm
MSI GeForce RTX 5060 Ti INSPIRE 2X OC G506T-8I2C	2617 MHz +1.7%	2.5	204 mm	117 mm	50 mm
MSI GeForce RTX 5060 Ti VENTUS 3X G506T-8V3	2572 MHz	2.2	304 mm	121 mm	44 mm
MSI GeForce RTX 5060 Ti VENTUS 3X OC G506T-8V3C	2602 MHz +1.2%	2.2	304 mm	121 mm	44 mm
MSI GeForce RTX 5060 Ti VENTUS 2X PLUS G506T-8V2P	2572 MHz	2.1	227 mm	126 mm	41 mm
MSI GeForce RTX 5060 Ti VENTUS 2X OC PLUS G506T-8V2CP	2602 MHz +1.2%	2.1	227 mm	126 mm	41 mm
Palit GeForce RTX 5060 Ti White OC NE7506TU19P1-GB2062M	2602 MHz +1.2%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Ti Dual NE7506T019P1-GB2062D	2572 MHz	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Ti Dual OC NE7506TT19P1-GB2062D	2632 MHz +2.3%	2	262.1 mm	126.3 mm	40.1 mm
Palit GeForce RTX 5060 Ti Infinity 3 OC NE7506TS19P1-GB2062S	2662 MHz +3.5%	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5060 Ti Infinity 3 NE7506T019P1-GB2062S	2572 MHz	2.1	291.9 mm	116.6 mm	41.3 mm
