Asus PRIME GeForce RTX 5070

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA RTX 5070 > Asus PRIME GeForce RTX 5070

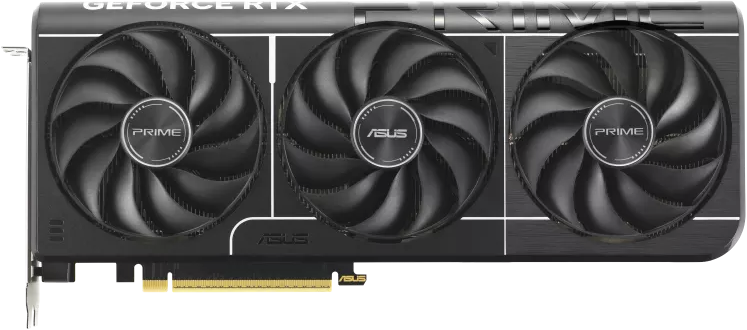

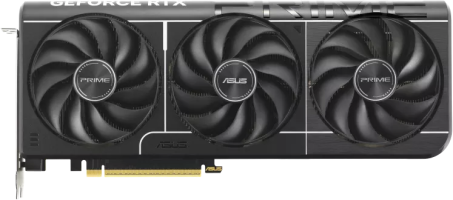

Asus PRIME GeForce RTX 5070
PRIME-RTX5070-12G
Experience Primal performance with the Prime GeForce RTX 5070, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Available at Amazon from $669.99. Buy now!

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB205
InterfacePCIe 5.0 x16
Core
NameGB205
FoundryTSMC
Process Node5 nm
Transistors31100 million
Die Size263 mm²
Density118.3 /mm²
GPU Core Config
Cores6144
TMUs192
ROPs80
SMs48
Tensor Cores192
Memory
TechnologyGDDR7
Size12 GB
Bus192 bit
Bandwidth672 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB205
Interface	PCIe 5.0 x16

Core
Name	GB205
Foundry	TSMC
Process Node	5 nm
Transistors	31100 million
Die Size	263 mm²
Density	118.3 /mm²

GPU Core Config
Cores	6144
TMUs	192
ROPs	80
SMs	48
Tensor Cores	192

Memory
Technology	GDDR7
Size	12 GB
Bus	192 bit
Bandwidth	672 GB/s
Speed	28 Gbps

Clocks
Base clock2325 MHz
Boost Clock2512 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP250 w
Recommended PSU750 w 650 w

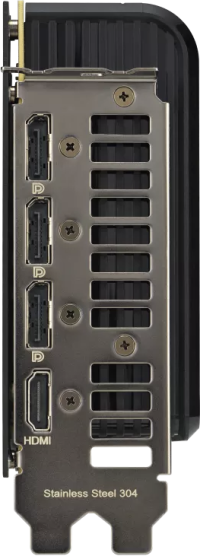

Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots2.5 2
Length304 mm 242 mm
Height126 mm 112 mm
Width50 mm 40 mm

Clocks
Base clock	2325 MHz
Boost Clock	2512 MHz
Memory Clock	1750 MHz

Power
16-pin	1
TDP	250 w
Recommended PSU	750 w 650 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Dimensions
Slots	2.5 2
Length	304 mm 242 mm
Height	126 mm 112 mm
Width	50 mm 40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Strix GeForce RTX 5070 ROG-STRIX-RTX5070-12G-GAMING	2512 MHz	3.2	332 mm	147.3 mm	64 mm
Asus ROG Strix GeForce RTX 5070 OC Edition ROG-STRIX-RTX5070-O12G-GAMING	2655 MHz +5.7%	3.2	332 mm	147.3 mm	64 mm
Zotac GeForce RTX 5070 AMP White Edition ZT-B50700FQ-10P	2587 MHz +3.0%	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 SOLID OC ZT-B50700J-10P	2542 MHz +1.2%	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 SOLID ZT-B50700D-10P	2512 MHz	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 Twin Edge OC White Edition ZT-B50700Q-10P	2542 MHz +1.2%	2.1	241.5 mm	120.1 mm	40.6 mm
Zotac GeForce RTX 5070 Twin Edge OC ZT-B50700H-10P	2542 MHz +1.2%	2.1	241.5 mm	120.1 mm	40.6 mm
Zotac GeForce RTX 5070 Twin Edge ZT-B50700E-10P	2512 MHz	2.1	241.5 mm	120.1 mm	40.6 mm
Gigabyte AORUS GeForce RTX 5070 MASTER GV-N5070AORUS M-12GD	2715 MHz +8.1%	3.2	317 mm	136 mm	64 mm
Gigabyte GeForce RTX 5070 GAMING OC GV-N5070GAMING OC-12GD	2625 MHz +4.5%	2.8	327 mm	132 mm	56 mm
Gigabyte GeForce RTX 5070 GAMING GV-N5070GAMING-12GD	2512 MHz	2.8	327 mm	132 mm	56 mm
Gigabyte GeForce RTX 5070 EAGLE OC ICE SFF GV-N5070EAGLEOC ICE-12GD	2587 MHz +3.0%	2.5	290 mm	120 mm	50 mm
Gigabyte GeForce RTX 5070 EAGLE OC SFF GV-N5070EAGLE OC-12GD	2587 MHz +3.0%	2.5	290 mm	120 mm	50 mm
Gigabyte GeForce RTX 5070 AERO OC GV-N5070AERO OC-12GD	2625 MHz +4.5%	2.8	324 mm	130 mm	56 mm
Gigabyte GeForce RTX 5070 AERO GV-N5070AERO-12GD	2512 MHz	2.8	324 mm	130 mm	56 mm
Gigabyte GeForce RTX 5070 WINDFORCE OC SFF GV-N5070WF3OC-12GD	2542 MHz +1.2%	2.5	282 mm	110 mm	50 mm
Gigabyte GeForce RTX 5070 WINDFORCE SFF GV-N5070WF3-12GD	2512 MHz	2.5	282 mm	110 mm	50 mm
Asus Dual GeForce RTX 5070 EVO OC Edition DUAL-RTX5070-O12G-EVO	2542 MHz +1.2%	2.5	229 mm	120 mm	50 mm
Asus Dual GeForce RTX 5070 EVO DUAL-RTX5070-12G-EVO	2512 MHz	2.5	229 mm	120 mm	50 mm
Asus PRIME GeForce RTX 5070 White OC Edition PRIME-RTX5070-O12G-WHITE	2557 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Asus Dual GeForce RTX 5070 DUAL-RTX5070-12G	2512 MHz	2.6	249 mm	126 mm	50.6 mm
Asus Dual GeForce RTX 5070 OC Edition DUAL-RTX5070-O12G	2542 MHz +1.2%	2.6	249 mm	126 mm	50.6 mm
Asus TUF Gaming GeForce RTX 5070 TUF-RTX5070-12G-GAMING	2512 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 OC Edition TUF-RTX5070-O12G-GAMING	2610 MHz +3.9%	3.2	329 mm	140 mm	62.5 mm
Asus PRIME GeForce RTX 5070 PRIME-RTX5070-12G	2512 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5070 OC Edition PRIME-RTX5070-O12G	2557 MHz +1.8%	2.5	304 mm	126 mm	50 mm
MSI GeForce RTX 5070 World of Warcraft MIDNIGHT VOID EDITION OC G507012WMVEC	2610 MHz +3.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 World of Warcraft MIDNIGHT LIGHT EDITION OC G507012WMLEC	2610 MHz +3.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 GAMING DUKE 3X WHITE G5070-12D3W	2512 MHz	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5070 GAMING DUKE 3X OC WHITE G5070-12D3CW	2557 MHz +1.8%	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5070 GAMING DUKE 3X G5070-12D3	2512 MHz	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5070 GAMING DUKE 3X OC G5070-12D3C	2557 MHz +1.8%	2.3	325 mm	121 mm	45 mm
MSI GeForce RTX 5070 SHADOW 3X G5070-12S3	2512 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 SHADOW 3X OC G5070-12S3C	2542 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 SHADOW 2X G5070-12S2	2512 MHz	2.5	231 mm	126 mm	50 mm
MSI GeForce RTX 5070 SHADOW 2X OC G5070-12S2C	2542 MHz +1.2%	2.5	231 mm	126 mm	50 mm
MSI GeForce RTX 5070 VANGUARD SOC LAUNCH EDITION G5070-12VGSL	2640 MHz +5.1%	3.1	337 mm	140 mm	61 mm
MSI GeForce RTX 5070 VANGUARD SOC G5070-12VGS	2640 MHz +5.1%	3.1	337 mm	140 mm	61 mm
MSI GeForce RTX 5070 VANGUARD OC G5070-12VGC	2610 MHz +3.9%	3.1	337 mm	140 mm	61 mm
MSI GeForce RTX 5070 GAMING TRIO G5070-12GT	2512 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 GAMING TRIO OC G5070-12GTC	2610 MHz +3.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 GAMING TRIO WHITE G5070-12GTW	2512 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 GAMING TRIO OC WHITE G5070-12GTCW	2610 MHz +3.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 INSPIRE 3X G5070-12I3	2512 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 INSPIRE 3X OC G5070-12I3C	2542 MHz +1.2%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 VENTUS 3X G5070-12V3	2512 MHz	2.5	302 mm	121 mm	49 mm
MSI GeForce RTX 5070 VENTUS 3X OC G5070-12V3C	2542 MHz +1.2%	2.5	302 mm	121 mm	49 mm
MSI GeForce RTX 5070 VENTUS 2X WHITE G5070-12V2W	2512 MHz	2.5	236 mm	126 mm	50 mm
MSI GeForce RTX 5070 VENTUS 2X OC WHITE G5070-12V2CW	2542 MHz +1.2%	2.5	236 mm	126 mm	50 mm
MSI GeForce RTX 5070 VENTUS 2X G5070-12V2	2512 MHz	2.5	236 mm	126 mm	50 mm
MSI GeForce RTX 5070 VENTUS 2X OC G5070-12V2C	2542 MHz +1.2%	2.5	236 mm	126 mm	50 mm
Palit GeForce RTX 5070 White OC NE75070U19K9-GB2050W	2527 MHz +0.6%	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5070 Infinity 3 NE75070019K9-GB2050S	2512 MHz	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5070 Infinity 3 OC NE75070S19K9-GB2050S	2542 MHz +1.2%	2.1	291.9 mm	116.6 mm	41.3 mm
Palit GeForce RTX 5070 GamingPro-S NE75070019K9-GB2050U	2512 MHz	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 GamingPro-S OC NE75070T19K9-GB2050U	2572 MHz +2.4%	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 GamingPro NE75070019K9-GB2050A	2512 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 GamingPro OC NE75070T19K9-GB2050A	2572 MHz +2.4%	3	331.9 mm	127.1 mm	60 mm
