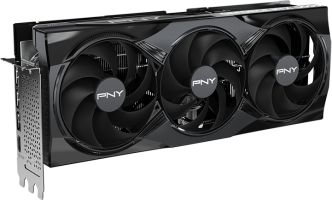

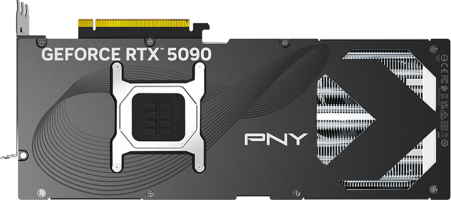

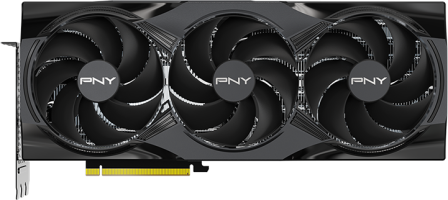

PNY GeForce RTX 5090 Triple Fan
VCG509032TFXPB1
he NVIDIA® GeForce RTX™ 5090 is the most powerful GeForce GPU ever made, bringing game-changing capabilities to gamers and creators. Tackle the most advanced models and most challenging creative workloads with unprecedented AI horsepower. Game with full ray tracing and the lowest latency. The GeForce RTX 5090 is powered by the NVIDIA® Blackwell architecture and equipped with 32GB of super-fast GDDR7 memory, so you can do it all.

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x16
Max temperature90 C
Core
NameGB202
FoundryTSMC
Process Node5 nm
Transistors92200 million
Die Size750 mm²
Density122.9 /mm²
GPU Core Config
Cores21760
TMUs680
ROPs176
SMs170
Tensor Cores680
RT Cores170
Memory
TechnologyGDDR7
Size32 GB
Bus512 bit
Bandwidth1792 GB/s
Speed28 Gbps

Information
Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x16
Max temperature	90 C

Core
Name	GB202
Foundry	TSMC
Process Node	5 nm
Transistors	92200 million
Die Size	750 mm²
Density	122.9 /mm²

GPU Core Config
Cores	21760
TMUs	680
ROPs	176
SMs	170
Tensor Cores	680
RT Cores	170

Memory
Technology	GDDR7
Size	32 GB
Bus	512 bit
Bandwidth	1792 GB/s
Speed	28 Gbps

Clocks
Base clock2017 MHz
Boost Clock2407 MHz
Memory Clock1750 MHz
Power
16-pin1
TDP575 w
Recommended PSU1000 w

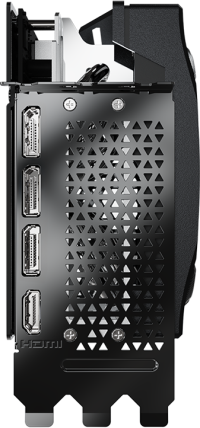

Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Monitors4
Dimensions
Slots3.5 2
Length328.7 mm 304 mm
Height137.7 mm 137 mm
Width71.1 mm 40 mm

Clocks
Base clock	2017 MHz
Boost Clock	2407 MHz
Memory Clock	1750 MHz

Power
16-pin	1
TDP	575 w
Recommended PSU	1000 w

Display
DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3
Monitors	4

Dimensions
Slots	3.5 2
Length	328.7 mm 304 mm
Height	137.7 mm 137 mm
Width	71.1 mm 40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Matrix Platinum GeForce RTX 5090 ROG-MATRIX-RTX5090-P32G-30TH	2730 MHz +13.4%	3.9	370.3 mm	150.5 mm	77.3 mm
Asus ROG Astral GeForce RTX 5090 OC Edition 90YV0LW0-M0NA00	2580 MHz +7.2%	3.8	357.6 mm	149.3 mm	76 mm
MSI GeForce RTX 5090 VENTUS 3X OC G5090-32V3C	2437 MHz +1.2%	3.5	325 mm	139 mm	67 mm
Asus TUF Gaming GeForce RTX 5090 OC Edition TUF-RTX5090-O32G-GAMING	2550 MHz +5.9%	3.6	348 mm	146 mm	72 mm
Zotac Gaming GeForce RTX 5090 SOLID ZT-B50900D-10P	2407 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
MSI GeForce RTX 5090 LIGHTNING Z G5090-32LZ	2730 MHz +13.4%	3.1	260 mm	151 mm	61 mm
Asus ROG Astral GeForce RTX 5090 BTF Edition ROG-ASTRAL-RTX5090-32G-BTF-GAMING	2437 MHz +1.2%	3.8	357.6 mm	149.3 mm	76 mm
Asus ProArt GeForce RTX 5090 OC Edition PROART-RTX5090-O32G	2482 MHz +3.1%	2.5	304 mm	140 mm	50 mm
Asus ROG Astral GeForce RTX 5090 BTF OC Edition ROG-ASTRAL-RTX5090-O32G-BTF-GAMING	2580 MHz +7.2%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5090 WHITE Edition ROG-ASTRAL-RTX5090-32G-WHITE	2437 MHz +1.2%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5090 WHITE OC Edition ROG-ASTRAL-RTX5090-O32G-WHITE	2580 MHz +7.2%	3.8	357.6 mm	149.3 mm	76 mm
Asus TUF Gaming GeForce RTX 5090 TUF-RTX5090-32G-GAMING	2407 MHz	3.6	348 mm	146 mm	72 mm
Asus ROG Astral LC GeForce RTX 5090 OC Edition ROG-ASTRAL-LC-RTX5090-O32G-GAMING	2580 MHz +7.2%	2.5	288.5 mm	153.7 mm	48 mm
Asus ROG Astral LC GeForce RTX 5090 ROG-ASTRAL-LC-RTX5090-32G-GAMING	2437 MHz +1.2%	2.5	288.5 mm	153.7 mm	48 mm
Asus ROG Astral GeForce RTX 5090 ROG-ASTRAL-RTX5090-32G-GAMING	2437 MHz +1.2%	3.8	357.6 mm	149.3 mm	76 mm
Zotac GAMING GeForce RTX 5090 SOLID OC White Edition ZT-B50900Q-10P	2422 MHz +0.6%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GAMING GeForce RTX 5090 SOLID OC ZT-B50900J-10P	2422 MHz +0.6%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GAMING GeForce RTX 5090 AMP Extreme INFINITY ZT-B50900B-10P	2467 MHz +2.5%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GAMING GeForce RTX 5090 ARCTICSTORM AIO ZT-B50900K-30P	2437 MHz +1.2%	2.5	251.6 mm	160.1 mm	49 mm
Asus ROG Astral GeForce RTX 5090 Dhahab OC Edition ROG-ASTRAL-RTX5090-O32G-DHAHAB-EDITION	2580 MHz +7.2%	3.8	357.6 mm	149.3 mm	76 mm
MSI GeForce RTX 5090 VANGUARD OC G5090-32VGC	2482 MHz +3.1%	4	357 mm	151 mm	76 mm
MSI GeForce RTX 5090 SUPRIM OC G5090-32SPC	2482 MHz +3.1%	4	359 mm	170 mm	76 mm
MSI GeForce RTX 5090 SUPRIM LIQUID OC G5090-32SLC	2482 MHz +3.1%	2.5	280 mm	148 mm	51 mm
MSI GeForce RTX 5090 VENTUS 3X G5090-32V3	2407 MHz	3.5	325 mm	139 mm	67 mm
MSI GeForce RTX 5090 GAMING TRIO G5090-32GT	2407 MHz	3.5	359 mm	149 mm	70 mm
MSI GeForce RTX 5090 VANGUARD SOC G5090-32VGS	2512 MHz +4.4%	4	357 mm	151 mm	76 mm
MSI GeForce RTX 5090 VANGUARD SOC LAUNCH EDITION G5090-32VGSL	2512 MHz +4.4%	4	357 mm	151 mm	76 mm
MSI GeForce RTX 5090 SUPRIM LIQUID SOC G5090-32SLS	2565 MHz +6.6%	2.5	280 mm	148 mm	51 mm
MSI GeForce RTX 5090 GAMING TRIO OC G5090-32GTC	2482 MHz +3.1%	3.5	359 mm	149 mm	70 mm
MSI GeForce RTX 5090 SUPRIM SOC G5090-32SPS	2565 MHz +6.6%	4	359 mm	150 mm	76 mm
Gigabyte GeForce RTX 5090 WINDFORCE GV-N5090WF3-32GD	2407 MHz	3.5	342 mm	150 mm	65 mm
Gigabyte GeForce RTX 5090 WINDFORCE OC GV-N5090WF3OC-32GD	2467 MHz +2.5%	3.5	342 mm	150 mm	65 mm
Gigabyte GeForce RTX 5090 GAMING GV-N5090GAMING-32GD	2407 MHz	3	342 mm	152 mm	70 mm
Gigabyte GeForce RTX 5090 GAMING OC GV-N5090GAMING OC-32GD	2550 MHz +5.9%	3.5	342 mm	152 mm	70 mm
Gigabyte AORUS GeForce RTX 5090 MASTER GV-N5090AORUS M-32GD	2655 MHz +10.3%	3.9	360 mm	150 mm	75 mm
Gigabyte AORUS GeForce RTX 5090 MASTER ICE GV-N5090AORUSM ICE-32GD	2655 MHz +10.3%	3.9	360 mm	150 mm	75 mm
Gigabyte AORUS GeForce RTX 5090 STEALTH ICE GV-N5090AORUSST ICE-32GD	2655 MHz +10.3%	3.9	360 mm	150 mm	75 mm
Gigabyte AORUS GeForce RTX 5090 XTREME WATERFORCE WB GV-N5090AORUSX WB-32GD	2655 MHz +10.3%	2	235 mm	172 mm	29 mm
Gigabyte AORUS GeForce RTX 5090 XTREME WATERFORCE GV-N5090AORUSX W-32GD	2655 MHz +10.3%	2	245 mm	146 mm	36 mm
Gigabyte AORUS GeForce RTX 5090 INFINITY GV-N5090AORUS IF-32GD	2407 MHz	3.5	330 mm	145 mm	65 mm
PNY GeForce RTX 5090 Triple Fan VCG509032TFXPB1	2407 MHz	3.5	328.7 mm	137.7 mm	71.1 mm
PNY GeForce RTX 5090 Overclocked Triple Fan VCG509032TFXPB1-O	2527 MHz +5.0%	3.5	328.7 mm	137.7 mm	71.1 mm
PNY GeForce RTX 5090 ARGB EPIC-X RGB Triple Fan VCG509032TFXXPB1	2407 MHz	3.5	328.7 mm	137.7 mm	71.1 mm
PNY GeForce RTX 5090 ARGB EPIC-X RGB Overclocked Triple Fan VCG509032TFXXPB1-O	2625 MHz +9.1%	3.5	328.7 mm	137.7 mm	71.1 mm
Gainward GeForce RTX 5090 Phantom GS NE75090S19R5-GB2020P	2527 MHz +5.0%	3.5	331.9 mm	145.6 mm	69.9 mm
Gainward GeForce RTX 5090 Phantom NE75090019R5-GB2020P	2407 MHz	3.5	331.9 mm	145.6 mm	69.9 mm
KFA2 GeForce RTX 5090 1-Click OC 59NBN1MDBWOK	2407 MHz	3	326 mm	137 mm	60 mm
Palit GeForce RTX 5090 GameRock NE75090019R5-GB2020G	2407 MHz	3.5	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5090 GameRock OC NE75090S19R5-GB2020G	2527 MHz +5.0%	3.5	331.9 mm	150 mm	70.4 mm
NVIDIA GeForce RTX 5090 Founders Edition 900-1G144-2530-000	2407 MHz	2	304 mm	137 mm	40 mm
Inno3D GeForce RTX 5090 iCHILL FROSTBITE PRO C50903-32D7X-1759FBP	2407 MHz	1	223 mm	134 mm	20 mm
Inno3D GeForce RTX 5090 iCHILL FROSTBITE C50903-32D7X-1759FB	2467 MHz +2.5%	2	204 mm	161 mm	34 mm
Inno3D GeForce RTX 5090 iCHILL X3 C50903-32D7X-175967H	2467 MHz +2.5%	3.8	334 mm	148 mm	73 mm
Inno3D GeForce RTX 5090 X3 OC N50903-32D7X-17593928	2452 MHz +1.9%	3	333 mm	137 mm	60 mm
Inno3D GeForce RTX 5090 X3 N50903-32D7-17593928	2407 MHz	3	333 mm	137 mm	60 mm
Manli Nebula GeForce RTX 5090 OC M-N509NO/D732G-M3672	2437 MHz +1.2%	3.5	345 mm	150 mm	65 mm
Manli Nebula GeForce RTX 5090 M-N509N/D732G-M3672	2407 MHz	3.5	345 mm	150 mm	65 mm
Manli White Gallardo GeForce RTX 5090 OC M-N509GO/D732G-M3663	2482 MHz +3.1%	3.5	359 mm	145 mm	69 mm
Manli Stellar GeForce RTX 5090 OC M-N509SO/D732G-M3627	2437 MHz +1.2%	3.5	360 mm	146 mm	70 mm
Manli Manli Gallardo GeForce RTX 5090 OC M-N509GO/D732G-M3626	2482 MHz +3.1%	3.5	359 mm	145 mm	69 mm
