| Information | |
|---|---|
| Platform | Workstation |
| Architecture | Ampere |
| Generation | GeForce RTX 30 |
| Previous Gen | GeForce RTX 20 |
| Next Gen | GeForce RTX 40 |
| Name | GA102 |
| Interface | PCIe 4.0 x16 |
| Core | |
|---|---|
| Name | GA102 |
| Foundry | Samsung |
| Process Node | 8 nm |
| Transistors | 28300 million |
| Die Size | 628.0 mm² |
| Density | 45.1 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 7168 |
| TMUs | 224 |
| ROPs | 96 |
| Tensor Cores | 224 |
| RT Cores | 56 |
| Memory | |
|---|---|
| Technology | GDDR6 |
| Size | 20 GB |
| Bus | 320 bit |
| Bandwidth | 640.0 GB/s |
| Speed | 16.0 Gbps |
| Clocks | |
|---|---|
| Base clock | 1050 MHz |
| Boost Clock | 1650 MHz |
| Memory Clock | 2000 MHz |
| Power | |
|---|---|
| 8-pin | 1 |
| TDP | 200 w |
| Display | |
|---|---|

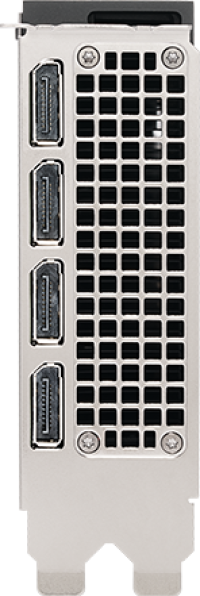

| DisplayPort | 4 1.4a |
| Dimensions | |
|---|---|
| Slots | 2 |
| Length | 267 mm |
| Height | 112 mm |
| Width | 40 mm |
| GPU▲ | Boost Clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|
| 1650 MHz | 2 | 267 mm | 112 mm | 40 mm |
