NVIDIA
RTX 5060 Ti 16GB
Mining
Current profitability
The estimated profitability for the NVIDIA RTX 5060 Ti 16GB is currently $0.16 per day before accounting for electricity costs. With an electricity rate of $0.10 per kWh, the estimated daily profit would be around $0.01.
Where to buy
Disclaimer: This is promotional content. We may receive compensation.
Estimates
Specifications
Historical
RTX 5060 Ti 16GB
Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
NameGB206
InterfacePCIe 5.0 x8
RTX 5060 Ti 16GB
Core
NameGB206
FoundryTSMC
Process Node5 nm
Transistors21900 million
Die Size181 mm²
Density121.0 /mm²
RTX 5060 Ti 16GB
GPU Core Config
Cores4608
TMUs144
ROPs48
SMs36
RT Cores36
RTX 5060 Ti 16GB
Memory
TechnologyGDDR7
Size16 GB
Bus128 bit
Bandwidth448 GB/s
Speed28 Gbps
RTX 5060 Ti 16GB
Clocks
Base clock2407 MHz
Boost Clock2572 MHz
Memory Clock1750 MHz
RTX 5060 Ti 16GB
Power
TDP180 w
Recommended PSU600 w
RTX 5060 Ti 16GB
Display
DisplayPort Version2.1b
HDMI Version2.1b
HDCP2.3
RTX 5060 Ti 16GB
Precision Benchmarks
FP16 Tensor73.01 TFLOPS
FP3221.99 TFLOPS
FP640.36 TFLOPS
Models
GPU▲Price▲Shop▲Slots▲
Zotac GeForce RTX 5060 Ti AMP
ZT-B50620F-10M
2.1
Zotac GeForce RTX 5060 Ti Twin Edge OC White Edition
ZT-B50620Q-10M
2.1
Zotac GeForce RTX 5060 Ti Twin Edge OC
ZT-B50620H-10M
$795.002.1
Zotac GeForce RTX 5060 Ti Twin Edge
ZT-B50620E-10M
2.1
Gigabyte AORUS GeForce RTX 5060 Ti ELITE
GV-N506TAORUS E-16GD
2.1
Gigabyte GeForce RTX 5060 Ti GAMING OC
GV-N506TGAMING OC-16GD
$549.992
Gigabyte GeForce RTX 5060 Ti GAMING
GV-N506TGAMING-16GD
2
Gigabyte GeForce RTX 5060 Ti EAGLE OC ICE
GV-N506TEAGLEOC ICE-16GD
$529.992
Gigabyte GeForce RTX 5060 Ti EAGLE MAX OC
GV-N506TEAGLEMAX OC-16GD
2
Gigabyte GeForce RTX 5060 Ti EAGLE OC
GV-N506TEAGLE OC-16GD
$529.992
Gigabyte GeForce RTX 5060 Ti AERO OC
GV-N506TAERO OC-16GD
$489.992
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX OC
GV-N506TWF2MAX OC-16GD
$749.972
Gigabyte GeForce RTX 5060 Ti WINDFORCE MAX
GV-N506TWF2MAX-16GD
2
Gigabyte GeForce RTX 5060 Ti WINDFORCE OC
GV-N506TWF2OC-16GD
$519.992
Gigabyte GeForce RTX 5060 Ti WINDFORCE
GV-N506TWF2-16GD
$559.992
Asus Dual GeForce RTX 5060 Ti EVO
DUAL-RTX5060TI-16G-EVO
2.1
Asus Dual GeForce RTX 5060 Ti EVO OC Edition
DUAL-RTX5060TI-O16G-EVO
2.1
Asus Dual GeForce RTX 5060 Ti White OC Edition
DUAL-RTX5060TI-O16G-WHITE
2.5
Asus Dual GeForce RTX 5060 Ti White Edition
DUAL-RTX5060TI-16G-WHITE
2.5

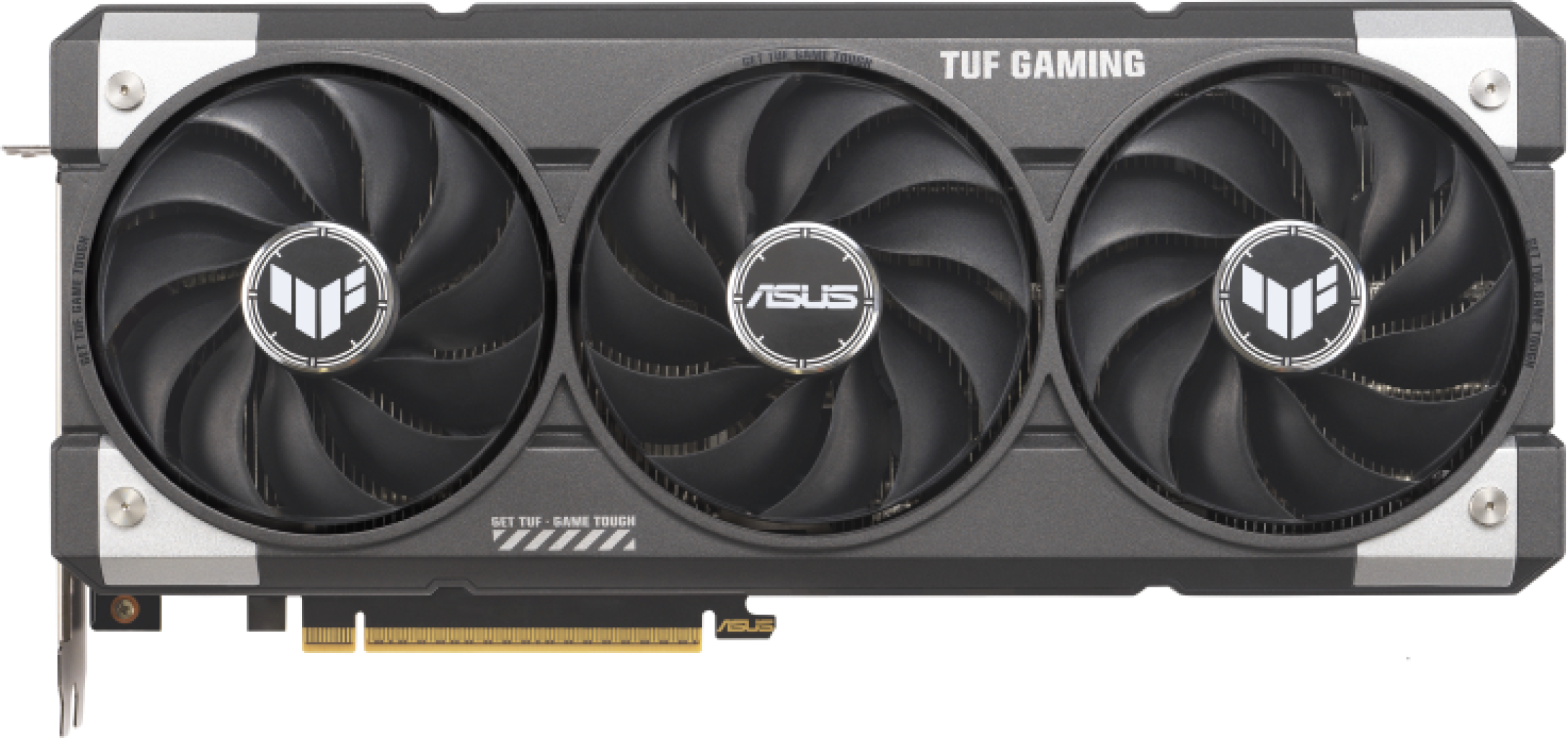

Asus TUF Gaming GeForce RTX 5060 Ti
TUF-RTX5060TI-16G-GAMING
3.1
Asus Dual GeForce RTX 5060 Ti
DUAL-RTX5060TI-16G
2.5
Asus PRIME GeForce RTX 5060 Ti
PRIME-RTX5060TI-16G
$479.992.5
Asus PRIME GeForce RTX 5060 Ti OC Edition
PRIME-RTX5060TI-O16G
$609.992.5
Asus Dual GeForce RTX 5060 Ti OC Edition
DUAL-RTX5060TI-O16G
$573.992.5
Asus TUF Gaming GeForce RTX 5060 Ti OC Edition
TUF-RTX5060TI-O16G-GAMING
3.1
MSI GeForce RTX 5060 Ti CYCLONE
G506T-16C
2.1
MSI GeForce RTX 5060 Ti CYCLONE OC
G506T-16CC
2.1
MSI GeForce RTX 5060 Ti VENTUS 2X WHITE PLUS
G506T16V2WP
2.1
MSI GeForce RTX 5060 Ti VENTUS 2X OC WHITE PLUS
G506T16V2CWP
2.1
MSI GeForce RTX 5060 Ti SHADOW 2X PLUS
G506T-16S2P
2.1
MSI GeForce RTX 5060 Ti SHADOW 2X OC PLUS
G506T-16S2CP
$499.992.1
MSI GeForce RTX 5060 Ti GAMING TRIO
G506T-16GT
2.2
MSI GeForce RTX 5060 Ti GAMING TRIO OC
G506T-16GTC
$549.992.2
MSI GeForce RTX 5060 Ti GAMING TRIO WHITE
G506T-16GTW
2.2
MSI GeForce RTX 5060 Ti GAMING TRIO OC WHITE
G506T-16GTCW
2.2
MSI GeForce RTX 5060 Ti GAMING
G506T-16G
$720.002.6
MSI GeForce RTX 5060 Ti GAMING OC
G506T-16GC
$539.992.6
MSI GeForce RTX 5060 Ti INSPIRE 2X
G506T-16I2
2.5
MSI GeForce RTX 5060 Ti INSPIRE 2X OC
G506T-16I2C
2.5
MSI GeForce RTX 5060 Ti VENTUS 3X
G506T-16V3
2.2
MSI GeForce RTX 5060 Ti VENTUS 3X OC
G506T-16V3C
$699.002.2
MSI GeForce RTX 5060 Ti VENTUS 2X PLUS
G506T-16V2P
2.1
MSI GeForce RTX 5060 Ti VENTUS 2X OC PLUS
G506T-16V2CP
$514.992.1
MSI GeForce RTX 5060 Ti VANGUARD OC
G506T-16VGC
3.1
MSI GeForce RTX 5060 Ti VANGUARD SOC
G506T-16VGS
3.1
Palit GeForce RTX 5060 Ti White OC
NE7506TU19T1-GB2061M
2
Palit GeForce RTX 5060 Ti Infinity 3
NE7506T019T1-GB2061S
2.1
Palit GeForce RTX 5060 Ti Infinity 3 OC
NE7506TS19T1-GB2061S
2.1
PNY GeForce RTX 5060 Ti EPIC-X RGB Overclocked Triple Fan
VCG5060T16TFXXPB1-O
$759.002
PNY GeForce RTX 5060 Ti EPIC-X RGB Triple Fan
VCG5060T16TFXXPB1
2
PNY GeForce RTX 5060 Ti Dual Fan
VCG5060T16DFXPB1
$592.492
PNY GeForce RTX 5060 Ti Overclocked Dual Fan
VCG5060T16DFXPB1-O
$491.002
Gainward GeForce RTX 5060 Ti Ghost OC
NE7506TU19T1-GB2061B
2
Gainward GeForce RTX 5060 Ti Python III V1
NE7506T019T1-GB2061R
2.1
Gainward GeForce RTX 5060 Ti Python III
NE7506T019T1-GB2061T
2.1
Gainward GeForce RTX 5060 Ti Python III OC
NE7506TS19T1-GB2061T
2.1
Inno3D GeForce RTX 5060 Ti TWIN X2 OC
N506T2-16D7X-191073N
2.1
Inno3D GeForce RTX 5060 Ti TWIN X2
N506T2-16D7-191073N
2.1
Inno3D GeForce RTX 5060 Ti X3 OC
N506T3-16D7X-191073L
2.1
Inno3D GeForce RTX 5060 Ti TWIN X2 OC WHITE
N506T2-16D7X-191073W
2.1
