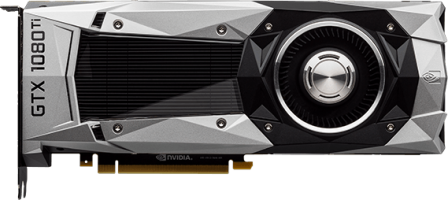

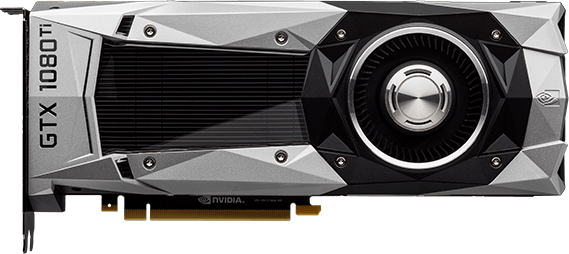

NVIDIA GTX 1080 Ti

The GTX 1080 Ti is a consumer-grade GPU from NVIDIA's GeForce 10 series, built on the  architecture using the GP102 chip. Equipped with 11 GB of GDDR5X memory on a 352-bit bus, it delivers 484.4 GB/s of bandwidth at 11.0 Gbps.

Launched on 9 Mar, 2017, the GTX 1080 Ti carried a starting price of $699.

Rent GTX 1080 Ti
Cost $0.04/h*
Vast
* Median price
Host GTX 1080 Ti
Earn $0.03/h*
Vast
* Median price
Mine with GTX 1080 Ti
Earn $0.16/d*
Estimates
* Before power cost

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
Interface PCIe 3.0 x16
Core
NameGP102
FoundryTSMC
Process Node16 nm
Transistors11800 million
Die Size471 mm²
Density25.1 /mm²
GPU Core Config
Cores3584
TMUs224
ROPs88
Memory
TechnologyGDDR5X
Size11 GB
Bus352 bit
Bandwidth484.352 GB/s
Speed11.008 Gbps

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next Gen	GeForce RTX 20
Interface	PCIe 3.0 x16

Core
Name	GP102
Foundry	TSMC
Process Node	16 nm
Transistors	11800 million
Die Size	471 mm²
Density	25.1 /mm²

GPU Core Config
Cores	3584
TMUs	224
ROPs	88

Memory
Technology	GDDR5X
Size	11 GB
Bus	352 bit
Bandwidth	484.352 GB/s
Speed	11.008 Gbps

Clocks
Base clock1481 MHz
Boost Clock1582 MHz
Memory Clock1376 MHz
Power
6-pin1
8-pin1
TDP250 w
Recommended PSU600 w
Display
DisplayPort3 1.4
HDMI1 2.0b
Dimensions
Slots2
Length266.7 mm
Height111.2 mm
Width40 mm

Clocks
Base clock	1481 MHz
Boost Clock	1582 MHz
Memory Clock	1376 MHz

Power
6-pin	1
8-pin	1
TDP	250 w
Recommended PSU	600 w

Display
DisplayPort	3 1.4
HDMI	1 2.0b

Dimensions
Slots	2
Length	266.7 mm
Height	111.2 mm
Width	40 mm

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
PNY GeForce GTX 1080 TI XLR8	1582 MHz		mm	mm	mm
Gigabyte GTX 1080 Ti	1632 MHz +3.2%	2	mm	mm	mm
Asus ROG Strix GTX 1080 Ti ROG-STRIX-GTX1080TI-O11G-GAMING - SuG	1607 MHz +1.6%		mm	mm	mm
NVIDIA GTX 1080 Ti Founders Edition	1582 MHz	2	266.7 mm	111.2 mm	40 mm
