MSI GeForce GTX 1080 Ti LIGHTNING
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 1080 Ti > MSI GeForce GTX 1080 Ti LIGHTNING

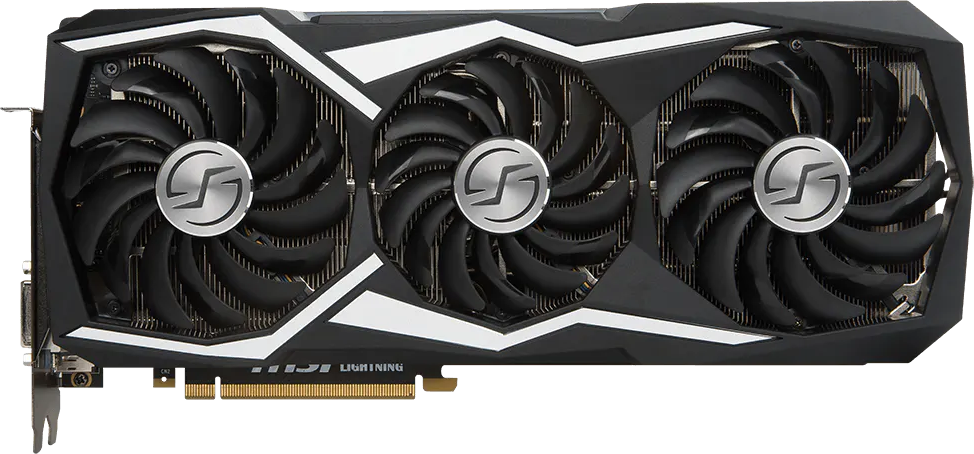

MSI GeForce GTX 1080 Ti LIGHTNING - Front
MSI GeForce GTX 1080 Ti LIGHTNING - Front MSI GeForce GTX 1080 Ti LIGHTNING - Rear MSI GeForce GTX 1080 Ti LIGHTNING - Side MSI GeForce GTX 1080 Ti LIGHTNING - Outputs
MSI GeForce GTX 1080 Ti LIGHTNING
Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
Interface PCIe 3.0 x16
Core
NameGP102
FoundryTSMC
Process Node16 nm
Transistors11800 million
Die Size471.0 mm²
Density25.1 /mm²
GPU Core Config
Cores3584
TMUs224
ROPs88
Memory
TechnologyGDDR5X
Size11 GB
Bus352 bit
Bandwidth484.4 GB/s
Speed11.0 Gbps
Clocks
Base clock1518 MHz 1481 MHz
Boost Clock1632 MHz 1582 MHz
Memory Clock1376 MHz
Power
8-pin3
TDP250 w
Recommended PSU750 w 600 w
Display
DisplayPort2 1.4
HDMI2 2.0b
DVI-D DL1
Dimensions
Slots3.1 2
Length320 mm 266.7 mm
Height140 mm 111.2 mm
Width61 mm 40 mm
Weight1707 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
PNY GeForce GTX 1080 TI XLR8 OC
KF108IGTXXG11EPB
1582 MHz
Gigabyte GeForce GTX 1080 Ti Gaming OC
GV-N108TGAMING OC-11GD
1632 MHz +3.2%2
Asus ROG Strix GTX 1080 Ti
ROG-STRIX-GTX1080TI-O11G-GAMING - SuG
1607 MHz +1.6%
NVIDIA GTX 1080 Ti Founders Edition
900-1G611-0050-000
1582 MHz2266.7 mm111.2 mm40 mm
MSI GeForce GTX 1080 Ti LIGHTNING Z
1721 MHz +8.8%3.1320 mm140 mm61 mm
EVGA GTX 1080 Ti Kingpin Edition
11G-P4-6798-KR
1695 MHz +7.1%2299.7 mm142.7 mm
Asus ROG Poseidon GTX 1080 Ti Platinum
ROG-POSEIDON-GTX1080TI-P11G-GAMING
1708 MHz +8.0%2298 mm
Palit GTX 1080 Ti GameRock Premium
NEB108TH15LC-1020G
1708 MHz +8.0%3285 mm133 mm56 mm
MSI GeForce GTX 1080 Ti LIGHTNING
1632 MHz +3.2%3.1320 mm140 mm61 mm
