Asus ROG Matrix R9 280X
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > AMD Radeon R9 280X > Asus ROG Matrix R9 280X

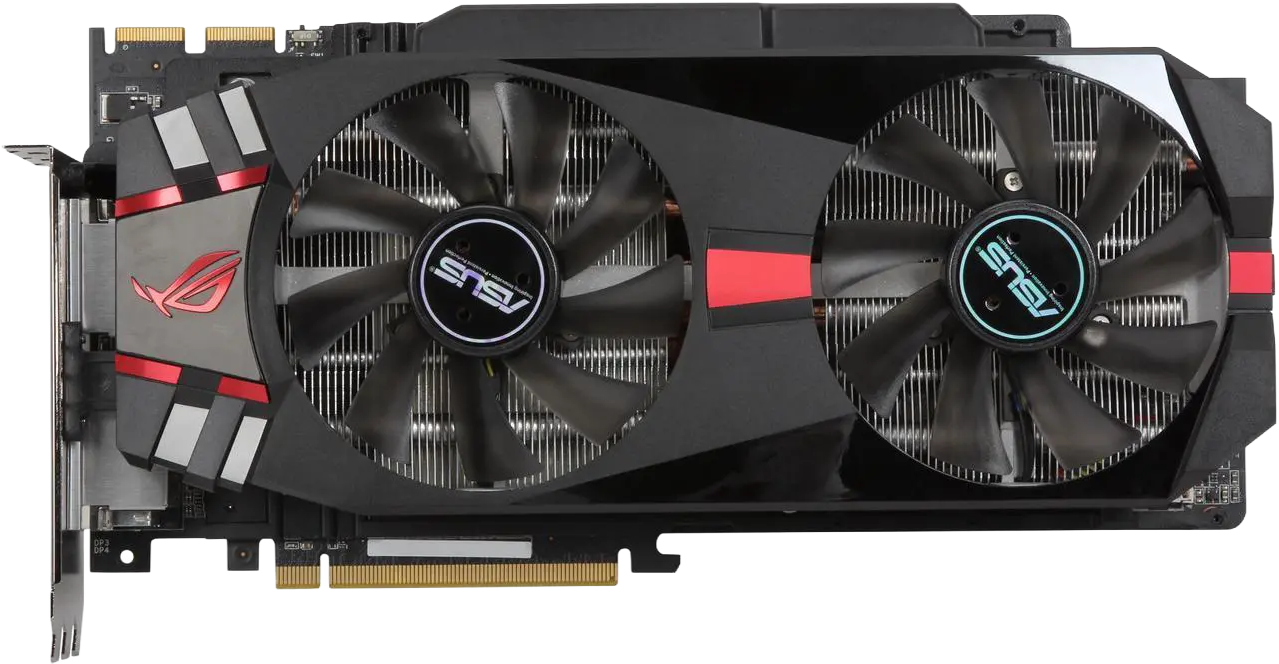

Asus ROG Matrix R9 280X - Front
Asus ROG Matrix R9 280X - Front
Asus ROG Matrix R9 280X
MATRIX-R9280X-3GD5
Information
PlatformConsumer
ArchitectureGCN 1.0
GenerationVolcanic Islands
Previous GenSea Islands
Next GenPirate Islands
InterfacePCIe 3.0 x16
Core
NameTahiti
FoundryTSMC
Process Node28 nm
Transistors4313 million
Die Size352.0 mm²
Density12.3 /mm²
GPU Core Config
Cores2048
TMUs128
Compute Units32
ROPs32
Memory
TechnologyGDDR5
Size3 GB
Bus384 bit
Bandwidth288.0 GB/s
Speed6.0 Gbps
Clocks
Base clock850 MHz
Boost Clock1000 MHz
Memory Clock1500 MHz
Power
8-pin2
TDP250 w
Recommended PSU600 w
Display
DisplayPort4 1.2
DVI2
Dimensions
Slots3 2
Length284 mm 275 mm
Height109 mm
Width36 mm
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲

Asus ROG Matrix R9 280X Platinum
MATRIX-R9280X-P-3GD5
1100 MHz +10.0%3284 mm

Asus ROG Matrix R9 280X
MATRIX-R9280X-3GD5
1000 MHz3284 mm
