AMD Radeon R9 290X

The Radeon R9 290X is a consumer-grade GPU from amd's Volcanic Islands series, built on the GCN 2.0 architecture using the Hawaii chip. Equipped with 4 GB of GDDR5 memory on a 512-bit bus, it delivers 320.0 GB/s of bandwidth at 5.0 Gbps.

Launched on 23 Oct, 2013, the Radeon R9 290X carried a starting price of $549.

Information
PlatformConsumer
ArchitectureGCN 2.0
GenerationVolcanic Islands
Previous GenSea Islands
Next GenPirate Islands
InterfacePCIe 3.0 x16
Core
NameHawaii
FoundryTSMC
Process Node28 nm
Transistors6200 million
Die Size438.0 mm²
Density14.2 /mm²
GPU Core Config
Cores2816
Compute Units44
TMUs176
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus512 bit
Bandwidth320.0 GB/s
Speed5.0 Gbps
Clocks
Base clock1000 MHz
Memory Clock1250 MHz
Power
6-pin1
8-pin1

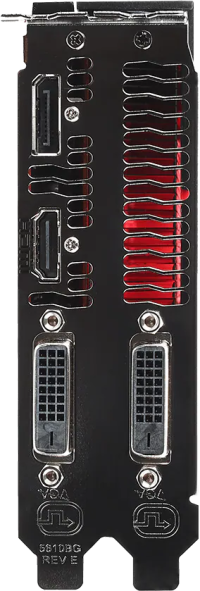

Display
DisplayPort1 1.2
HDMI1 1.4a
DVI2
Dimensions
Slots2
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲

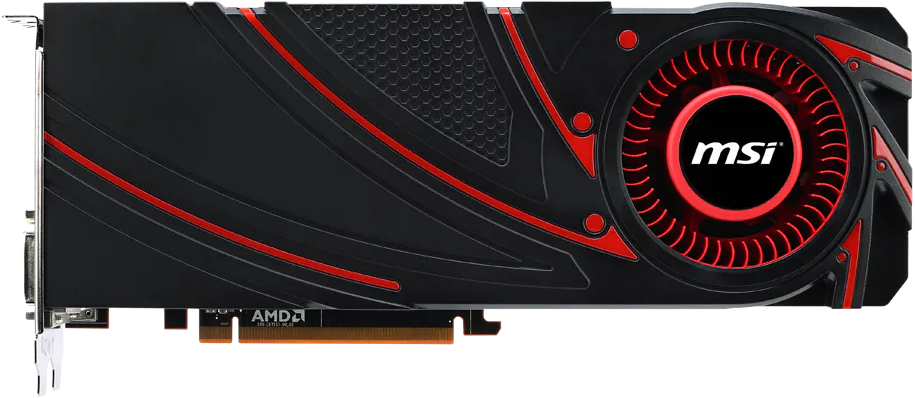

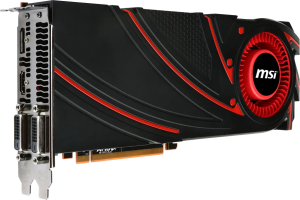

MSI Radeon R9 290X LIGHTNING
2.8302 mm131 mm55 mm
Asus ROG Matrix R9 290X Platinum
MATRIX-R9290X-P-4GD5
2
