MSI Radeon R9 290X LIGHTNING
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > AMD Radeon R9 290X > MSI Radeon R9 290X LIGHTNING

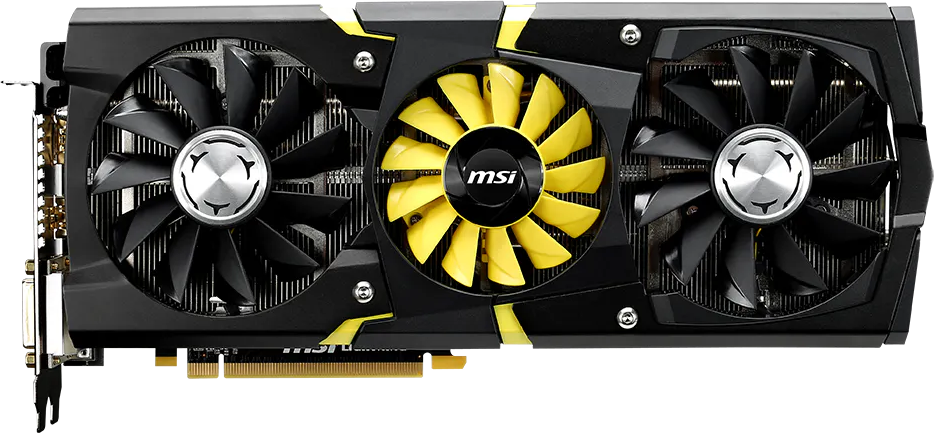

MSI Radeon R9 290X LIGHTNING - Front

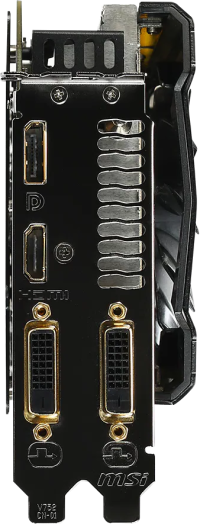

MSI Radeon R9 290X LIGHTNING - Front MSI Radeon R9 290X LIGHTNING - Side MSI Radeon R9 290X LIGHTNING - Outputs
MSI Radeon R9 290X LIGHTNING
Information
PlatformConsumer
ArchitectureGCN 2.0
GenerationVolcanic Islands
Previous GenSea Islands
Next GenPirate Islands
InterfacePCIe 3.0 x16
Core
NameHawaii
FoundryTSMC
Process Node28 nm
Transistors6200 million
Die Size438.0 mm²
Density14.2 /mm²
GPU Core Config
Cores2816
Compute Units44
TMUs176
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus512 bit
Bandwidth320.0 GB/s
Speed5.0 Gbps
Clocks
Base clock1080 MHz 1000 MHz
Memory Clock1250 MHz
Power
6-pin1
8-pin2
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI2
DVI-D DL2
Dimensions
Slots2.8 2
Length302 mm
Height131 mm
Width55 mm
Weight1580 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI Radeon R9 290X LIGHTNING
2.8302 mm131 mm55 mm
Asus ROG Matrix R9 290X Platinum
MATRIX-R9290X-P-4GD5
2
