ASRock Radeon RX 6900 XT OC Formula
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > AMD RX 6900 XT > ASRock Radeon RX 6900 XT OC Formula

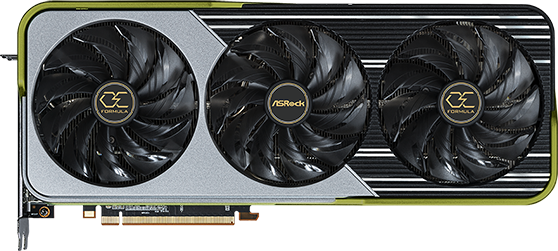

ASRock Radeon RX 6900 XT OC Formula - Front

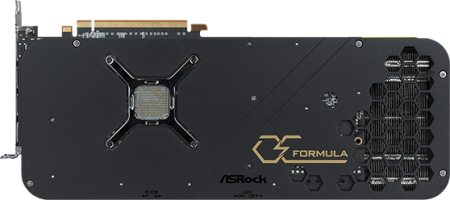

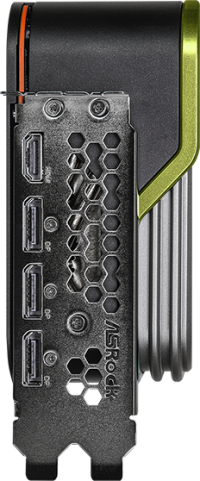

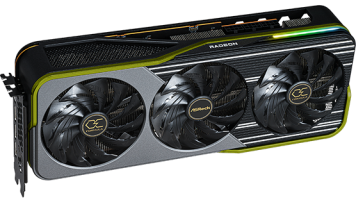

ASRock Radeon RX 6900 XT OC Formula - Front ASRock Radeon RX 6900 XT OC Formula - Rear ASRock Radeon RX 6900 XT OC Formula - Side ASRock Radeon RX 6900 XT OC Formula - Outputs
ASRock Radeon RX 6900 XT OC Formula
RX6900XT OCF 16G
Available at Amazon from $985.00. Buy now!
Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next GenRX 7000
InterfacePCIe 4.0 x16
Core
NameNavi 21
FoundryTSMC
Process Node7 nm
Transistors26800 million
Die Size520.0 mm²
Density51.5 /mm²
GPU Core Config
Cores5120
TMUs320
ROPs128
RT Cores80
Memory
TechnologyGDDR6
Size16 GB
Bus256 bit
Infinity Cache128 MB
Bandwidth512.0 GB/s
Speed16.0 Gbps
Clocks
Base clock2125 MHz 1825 MHz
Game Clock2295 MHz
Boost Clock2475 MHz 2250 MHz
Memory Clock2000 MHz
Power
8-pin3
TDP300 w
Recommended PSU1000 w 700 w
Display
DisplayPort3 1.4
HDMI1 2.1
USB Type-C1
Dimensions
Slots3.1 3
Length332 mm
Height137 mm
Width61 mm
Weight1784 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
Asus TUF GAMING Radeon RX 6900 XT OC Edition
TUF-RX6900XT-O16G-GAMING
2340 MHz +4.0%2.9320 mm140 mm57.8 mm
PowerColor Red Devil AMD Radeon RX 6900 XT Ultimate
AXRX 6900 XTU 16GBD6-3DHE/OC
2425 MHz +7.8%3.1320 mm135 mm62 mm
AMD Radeon RX 6900 XT Halo Infinite Limited Edition
2250 MHz2.5267 mm120 mm50 mm
ASRock Radeon RX 6900 XT OC Formula
RX6900XT OCF 16G
2475 MHz +10.0%3.1332 mm137 mm61 mm
Asus ROG Strix LC Radeon RX 6900 XT
ROG-STRIX-LC-RX6900XT-O16G-GAMING
2365 MHz +5.1%2.2277 mm131 mm43.6 mm
