Asus ROG Matrix 9800 GT
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA GeForce 9800 GT > Asus ROG Matrix 9800 GT

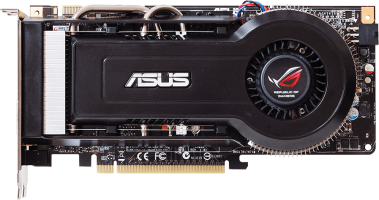

Asus ROG Matrix 9800 GT - Front

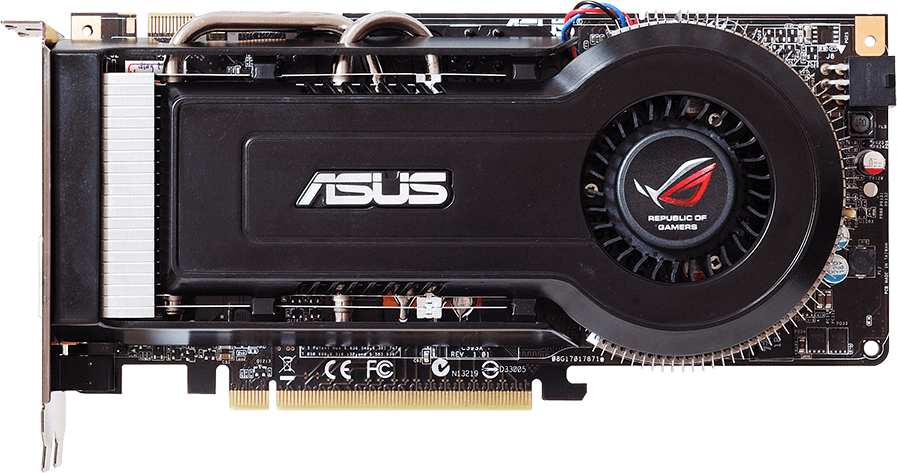

Asus ROG Matrix 9800 GT - Front
Asus ROG Matrix 9800 GT
EN9800GT-MATRIX
Information
PlatformConsumer
ArchitectureTesla
GenerationGeForce 9
Previous GenGeForce 8
Next GenGeForce 100
InterfacePCIe 2.0 x16
Core
NameG92
FoundryTSMC
Process Node65 nm
Transistors754 million
Die Size324.0 mm²
Density2.3 /mm²
GPU Core Config
Cores112
TMUs56
ROPs16
SMs14
Memory
TechnologyGDDR3
Size0.5 GB
Bus256 bit
Bandwidth57.6 GB/s
Speed1.8 Gbps
Clocks
Base clock612 MHz 600 MHz
Shader Clock1530 MHz 1500 MHz
Memory Clock900 MHz
Power
6-pin1
TDP125 w
Recommended PSU300 w
Display
DVI2
S-Video1
Dimensions
Slots1
Length229 mm
Height111 mm
Width20 mm
Models
GPU▲Shader Clock▲Slots▲Length▲Height▲Width▲

Asus ROG Matrix 9800 GT
EN9800GT-MATRIX
1530 MHz +2.0%1
