MSI GeForce GTX 1060 AERO ITX 6G OC
Specs, info and data
The GPU Database
Featuring 290+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 1060 > MSI GeForce GTX 1060 AERO ITX 6G OC

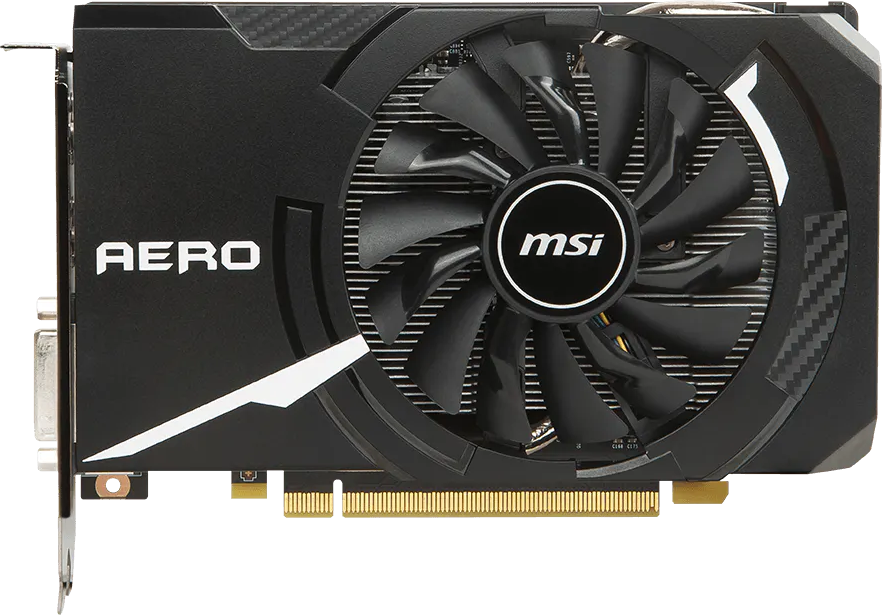

MSI GeForce GTX 1060 AERO ITX 6G OC - Front

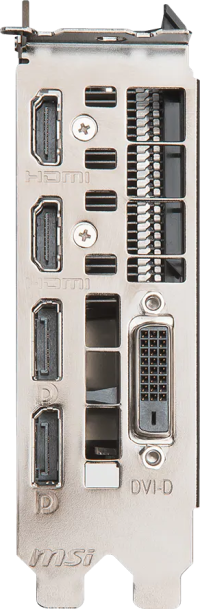

MSI GeForce GTX 1060 AERO ITX 6G OC - Front MSI GeForce GTX 1060 AERO ITX 6G OC - Side MSI GeForce GTX 1060 AERO ITX 6G OC - Side MSI GeForce GTX 1060 AERO ITX 6G OC - Outputs
MSI GeForce GTX 1060 AERO ITX 6G OC
Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Core
NameGP106
FoundryTSMC
Process Node16 nm
Transistors4400 million
Die Size200.0 mm²
Density22.0 /mm²
GPU Core Config
Cores1280
TMUs80
ROPs48
Memory
TechnologyGDDR5
Size6 GB
Bus192 bit
Bandwidth192.2 GB/s
Speed8.0 Gbps
Clocks
Base clock1506 MHz
Boost Clock1759 MHz 1708 MHz
Memory Clock2002 MHz
Power
6-pin1
TDP120 w
Recommended PSU400 w
Display
DisplayPort2 1.4
HDMI2 2.0b
DVI-D DL1
Resolution7680x4320
Dimensions
Slots2
Length175 mm 250 mm
Height115 mm 111 mm
Width38 mm 40 mm
Weight472 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
NVIDIA GTX 1060 Founders Edition
900-1G410-2530-000
1708 MHz2250 mm111 mm40 mm
MSI GeForce GTX 1060 AERO ITX 3G OC
1759 MHz +3.0%2175 mm115 mm38 mm
MSI GeForce GTX 1060 AERO ITX 6G OC
1759 MHz +3.0%2175 mm115 mm38 mm
