NVIDIA GTX 1060 Founders Edition Database - Specs, information & files

NVIDIA GTX 1060 Founders Edition

Specs, info and data

The GPU Database

Featuring 220+ GPU models — and growing.

Database > GPUs > NVIDIA GTX 1060 > NVIDIA GTX 1060 Founders Edition

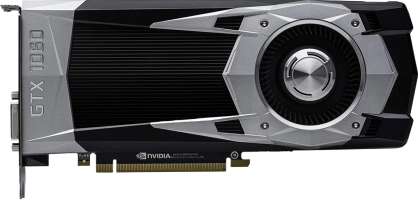

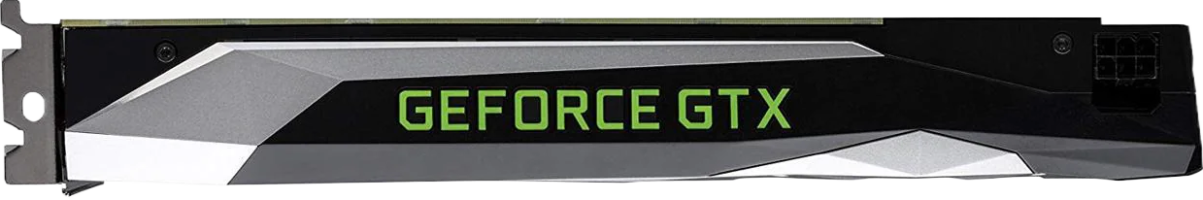

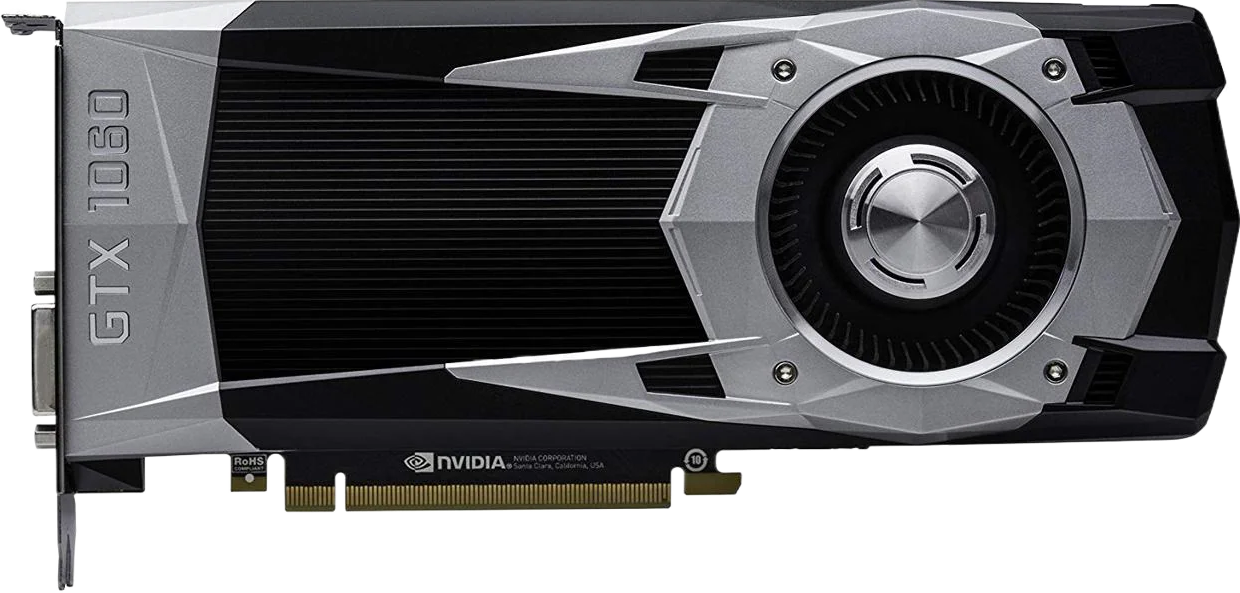

NVIDIA GTX 1060 Founders Edition

Information
PlatformConsumer
ArchitecturePascal
GenerationGeForce 10
Previous GenGeForce 900
Next GenGeForce RTX 20
InterfacePCIe 3.0 x16
Core
NameGP106
FoundryTSMC
Process Node16 nm
Transistors4400 million
Die Size200 mm²
Density22.0 /mm²
GPU Core Config
Cores1280
TMUs80
ROPs48
Memory
TechnologyGDDR5
Size6 GB
Bus192 bit
Bandwidth192.192 GB/s
Speed8.008 Gbps

Information
Platform	Consumer
Architecture	Pascal
Generation	GeForce 10
Previous Gen	GeForce 900
Next Gen	GeForce RTX 20
Interface	PCIe 3.0 x16

Core
Name	GP106
Foundry	TSMC
Process Node	16 nm
Transistors	4400 million
Die Size	200 mm²
Density	22.0 /mm²

GPU Core Config
Cores	1280
TMUs	80
ROPs	48

Memory
Technology	GDDR5
Size	6 GB
Bus	192 bit
Bandwidth	192.192 GB/s
Speed	8.008 Gbps

Clocks
Base clock1506 MHz
Boost Clock1708 MHz
Memory Clock2002 MHz
Power
6-pin1
TDP120 w
Recommended PSU400 w

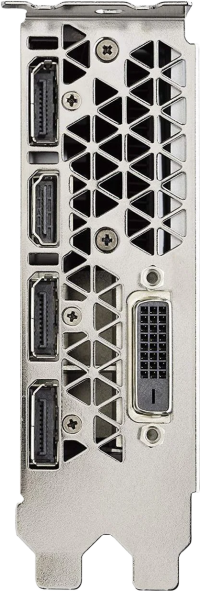

Display
DisplayPort3
HDMI1
DVI1
Resolution7680x4320
Dimensions
Slots2
Length250 mm
Height111 mm
Width40 mm

Clocks
Base clock	1506 MHz
Boost Clock	1708 MHz
Memory Clock	2002 MHz

Power
6-pin	1
TDP	120 w
Recommended PSU	400 w

Display
DisplayPort	3
HDMI	1
DVI	1
Resolution	7680x4320

Dimensions
Slots	2
Length	250 mm
Height	111 mm
Width	40 mm

Bios files

86.06.0E.00.E8

N/A

Download

Size: 244.5 KB

Build: 2016-06-20

Models

GPU▲	Boost Clock▲	Slots▲	Length▲	Height▲	Width▲
NVIDIA GTX 1060 Founders Edition	1708 MHz	2	250 mm	111 mm	40 mm
