MSI GeForce GTX 770 GAMING OC
Specs, info and data
The GPU Database
Featuring 270+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 770 > MSI GeForce GTX 770 GAMING OC

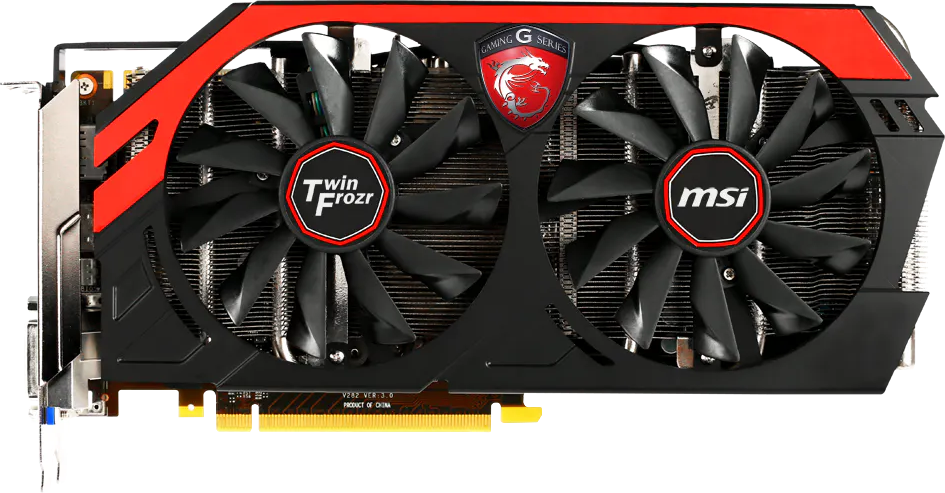

MSI GeForce GTX 770 GAMING OC - Front

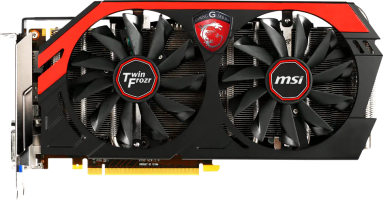

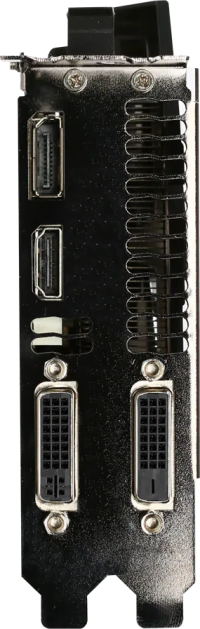

MSI GeForce GTX 770 GAMING OC - Front MSI GeForce GTX 770 GAMING OC - Side MSI GeForce GTX 770 GAMING OC - Side MSI GeForce GTX 770 GAMING OC - Outputs
MSI GeForce GTX 770 GAMING OC
N770 TF 2GD5/OC
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth336.6 GB/s
Speed7.0 Gbps
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536
TMUs128
ROPs32
Clocks
Base clock1137 MHz 1046 MHz
Boost Clock1198 MHz 1085 MHz
Memory Clock1753 MHz
Power
8-pin2
TDP229 w 230 w
Recommended PSU600 w 550 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots1.9 2
Length260 mm
Height126 mm
Width38 mm
Weight1065 g
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 770 LIGHTNING
N770 LIGHTNING
1202 MHz +10.8%2.5280 mm129 mm49.2 mm
MSI GeForce GTX 770 GAMING OC
N770 TF 2GD5/OC
1198 MHz +10.4%1.9260 mm126 mm38 mm
