MSI GeForce GTX 770 LIGHTNING
Specs, info and data
The GPU Database
Featuring 280+ GPU models — and growing.
Database > GPUs > NVIDIA GTX 770 > MSI GeForce GTX 770 LIGHTNING

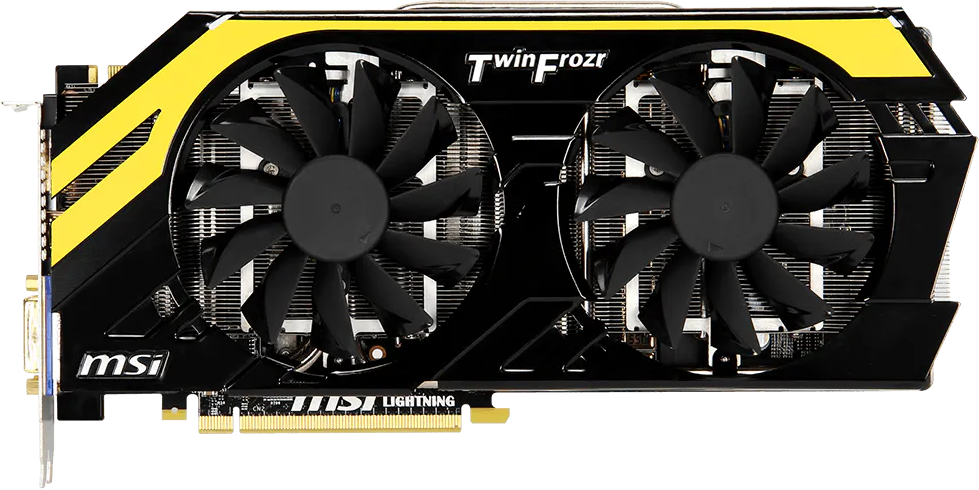

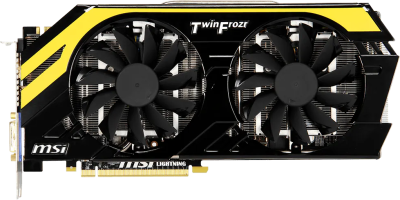

MSI GeForce GTX 770 LIGHTNING - Front

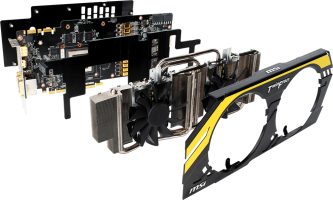

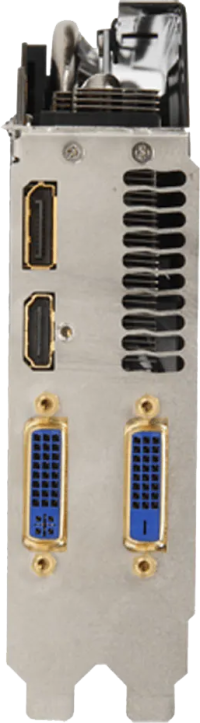

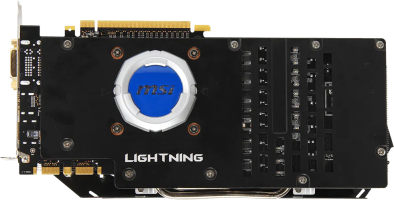

MSI GeForce GTX 770 LIGHTNING - Front MSI GeForce GTX 770 LIGHTNING - Rear MSI GeForce GTX 770 LIGHTNING - Side MSI GeForce GTX 770 LIGHTNING - Outputs
MSI GeForce GTX 770 LIGHTNING
N770 LIGHTNING
Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 700
Previous GenGeForce 600
Next GenGeForce 900
InterfacePCIe 3.0 x16
Core
NameGK104
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536
TMUs128
ROPs32
Memory
TechnologyGDDR5
Size2 GB
Bus256 bit
Bandwidth224.4 GB/s
Speed7.0 Gbps
Clocks
Base clock1150 MHz 1046 MHz
Boost Clock1202 MHz 1085 MHz
Memory Clock1753 MHz
Power
8-pin2
TDP229 w 230 w
Recommended PSU600 w 550 w
Display
DisplayPort1 1.2
HDMI1 1.4a
DVI-D DL1
DVI-I1
Dimensions
Slots2.5 2
Length280 mm
Height129 mm
Width49.2 mm
Bios files
80.04.C3.00.41
N/A
Size: 98.5 KB
Build: 2013-06-03
Models
GPU▲Boost Clock▲Slots▲Length▲Height▲Width▲
MSI GeForce GTX 770 LIGHTNING
N770 LIGHTNING
1202 MHz +10.8%2.5280 mm129 mm49.2 mm
MSI GeForce GTX 770 GAMING OC
N770 TF 2GD5/OC
1198 MHz +10.4%1.9260 mm126 mm38 mm
Asus GeForce GTX 770 DirectCU II OC
GTX770-DC2OC-2GD5
1110 MHz +2.3%2266 mm130 mm40 mm
Zotac GeForce GTX 770
29Z-3N255-100Z8
1110 MHz +2.3%2270 mm112 mm36 mm
